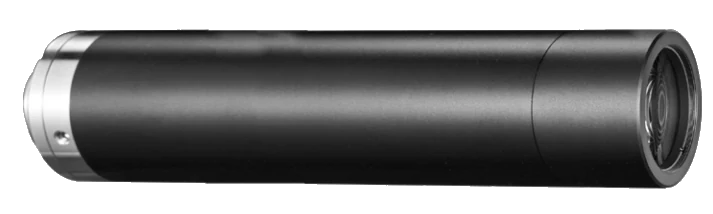

Object-Side Telecentric Lens, 0.175x, 640 mm WD, 1" (LS-KY-0175-640)
  • Object-Side Telecentric Lens, 0.175x, 640 mm WD, 1" (LS-KY-0175-640)

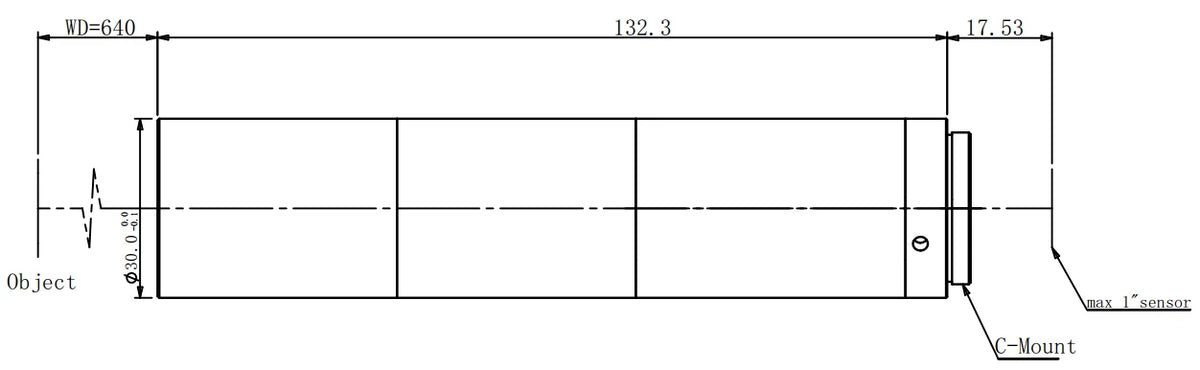

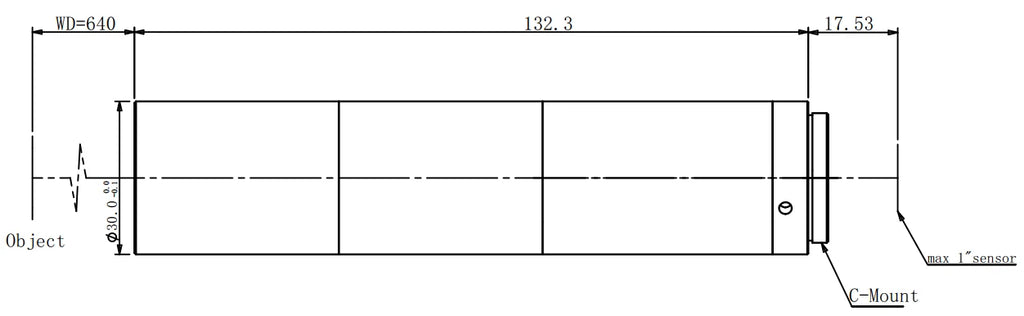

  • LS-KY-0175-640 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.175x, 640 mm WD, 1" (LS-KY-0175-640)

Model LS-KY-0175-640

  • Magnification0.175
  • MountC-mount
  • Sensor1"
  • Working distance640 mm
  • ApertureF10.9
$4,669.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Object-Side Telecentric Lens, 0.175x, 640 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KY-0175-640

Optics

Magnification0.175
Working distance640 mm
Image size1"
F-numberF10.9
Depth of field28.5 mm
Distortion≤ 0.2%
Object-side resolution41.9 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension132.3 mm × Φ30 mm
Shipping weight (estimated)0.66 kg
