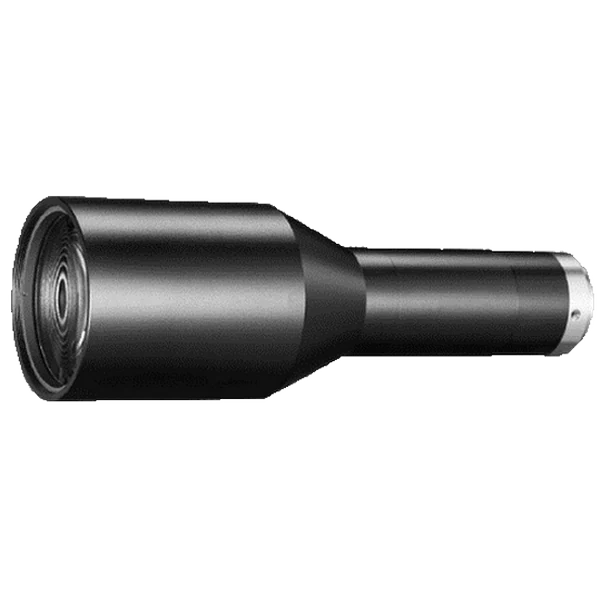

Object-Side Telecentric Lens, 0.3x, 250 mm WD, 1" (LS-KT-03-250)
  • Object-Side Telecentric Lens, 0.3x, 250 mm WD, 1" (LS-KT-03-250)

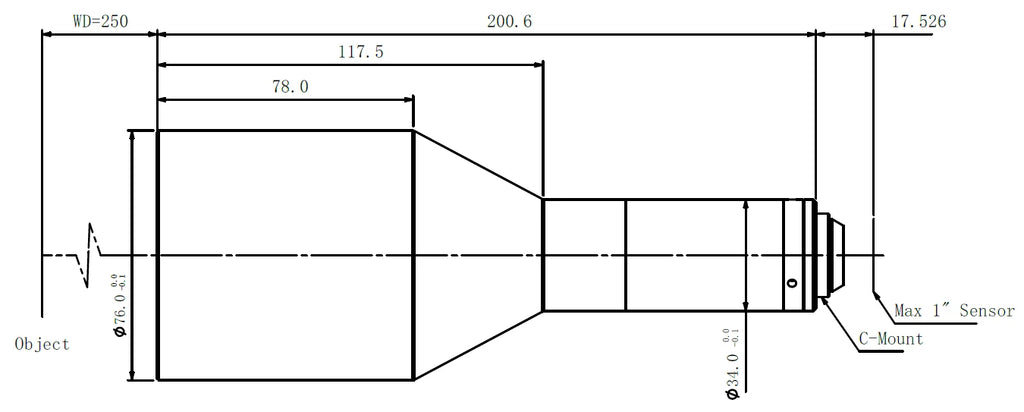

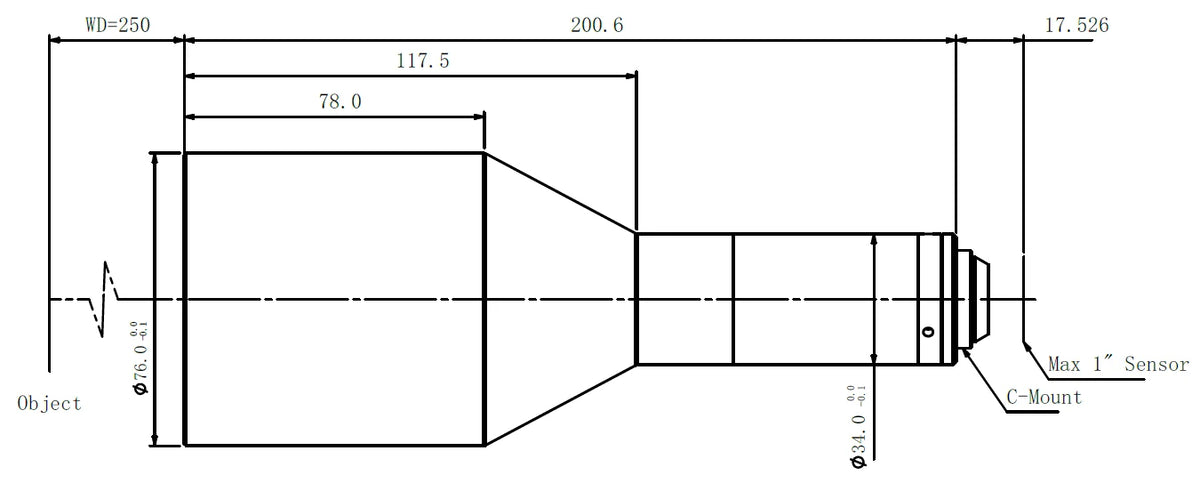

  • LS-KT-03-250 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 0.3x, 250 mm WD, 1" (LS-KT-03-250)

Model LS-KT-03-250

  • Magnification0.3
  • MountC-mount
  • Sensor1"
  • Working distance250 mm
  • ApertureF8
$1,929.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.3x, 250 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KT-03-250

Optics

Magnification0.3
Working distance250 mm
Image size1"
F-numberF8
Depth of field±3.5 mm @F8
Distortion≤ 0.2%
Object-side resolution15.9 μm
Object-side telecentricity≤ 0.2°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension200.6 mm × Φ76 mm
Shipping weight (estimated)0.66 kg
