Object-Side Telecentric Lens, 0.14x, 700 mm WD, 1" (LS-KY-014-700)

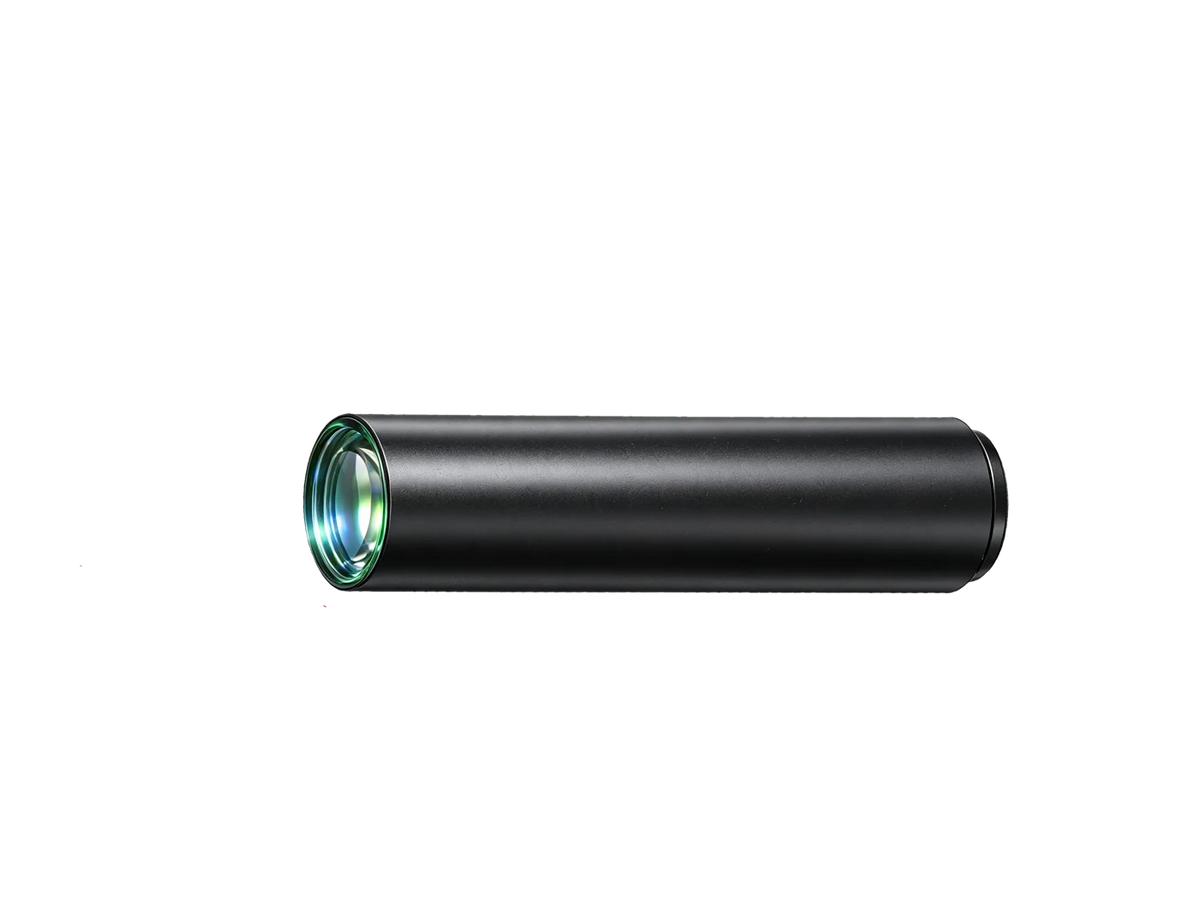

  • Object-Side Telecentric Lens, 0.14x, 700 mm WD, 1" (LS-KY-014-700)

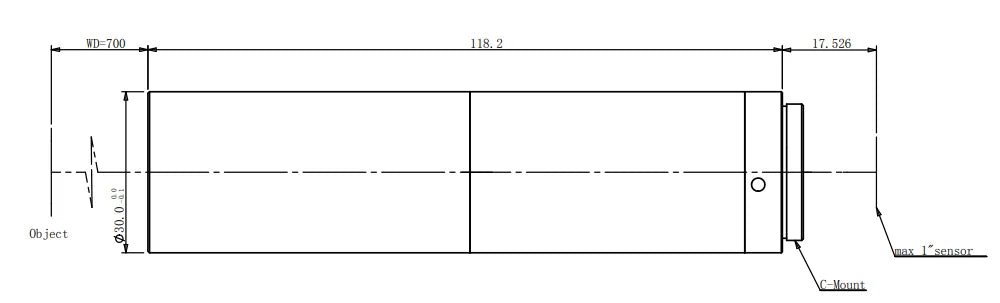

  • LS-KY-014-700 dimensions (mm)

Telecentric lenses

Quasi-Telecentric Lens, 0.14x, 700 mm WD, 1" (LS-KY-014-700)

Model LS-KY-014-700

  • Magnification0.14
  • MountC-mount
  • Sensor1"
  • Working distance700 mm
  • ApertureF12
$5,699.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Object-Side Telecentric Lens, 0.14x, 700 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-KY-014-700

Optics

Magnification0.14
Working distance700 mm
Image size1"
F-numberF12
Depth of field49 mm
Distortion≤ 0.03%
Object-side resolution57.4 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension118.2 mm × Φ30 mm
Shipping weight (estimated)0.66 kg

Other models in the K Series Object-Side Telecentric lenses series

See all 123 models
ModelSize / key dataPriceAvailabilityLink
LS-KY-04-300 0.4x, 300 mm WD, 4/3" $3,469.00 Quote Ships in 2-3 weeks View
LS-KS-025-310 0.25x, 310 mm WD, 1.2" $3,469.00 Quote Ships in 2-3 weeks View
LS-KS-04-425 0.4x, 425 mm WD, 1.1" $3,469.00 Quote Ships in 2-3 weeks View
LS-KY-03-340 0.3x, 340 mm WD, 1" $3,819.00 Quote Ships in 2-3 weeks View
LS-KY-022-380 0.22x, 380 mm WD, 1" $4,259.00 Quote Ships in 2-3 weeks View
LS-KY-03-360 0.3x, 360 mm WD, 1" $4,259.00 Quote Ships in 2-3 weeks View
LS-KS-015-640 0.15x, 640 mm WD, 1.1" $4,259.00 Quote Ships in 2-3 weeks View
LS-KS-015-963 0.15x, 963 mm WD, 1.1" $4,259.00 Quote Ships in 2-3 weeks View
LS-KY-0175-640 0.175x, 640 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-KY-018-630 0.18x, 630 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-KY-025-415 0.25x, 415 mm WD, 4/3" $4,669.00 Quote Ships in 2-3 weeks View
LS-KY-028-680 0.28x, 680 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-KY-029-742 0.29x, 742 mm WD, 1" $4,669.00 Quote Ships in 2-3 weeks View
LS-KS-025-423 0.25x, 423 mm WD, 1.2" $4,669.00 Quote Ships in 2-3 weeks View
LS-KS-0128-1115 0.128x, 1115 mm WD, 1.1" $4,669.00 Quote Ships in 2-3 weeks View
LS-KS-01-778 0.1x, 778 mm WD, 1.2" $4,669.00 Quote Ships in 2-3 weeks View
LS-KY-022-530 0.22x, 530 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-KY-02-550 0.2x, 550 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-KY-024-760 0.24x, 760 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-KY-025-465 0.25x, 465 mm WD, 1" $5,699.00 Quote Ships in 2-3 weeks View
LS-KY-025-695 0.25x, 695 mm WD, 4/3" $5,699.00 Quote Ships in 2-3 weeks View
LS-KS-02-604 0.2x, 604 mm WD, 1.2" $5,699.00 Quote Ships in 2-3 weeks View
LS-KS-02-750 0.2x, 750 mm WD, 1.1" $5,699.00 Quote Ships in 2-3 weeks View
LS-KS-013-630 0.13x, 630 mm WD, 1.2" $5,699.00 Quote Ships in 2-3 weeks View
