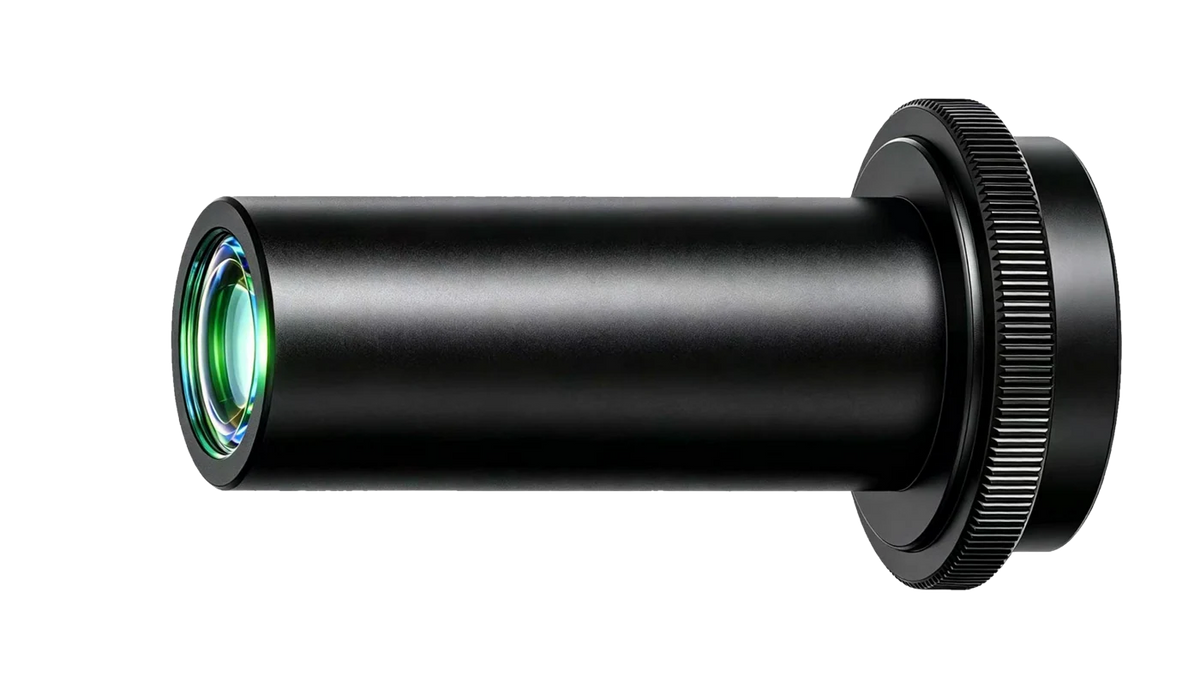

Object-Side Telecentric Lens, 0.7x, 70 mm WD, 1/1.8" (LS-HY-07-70-V2)

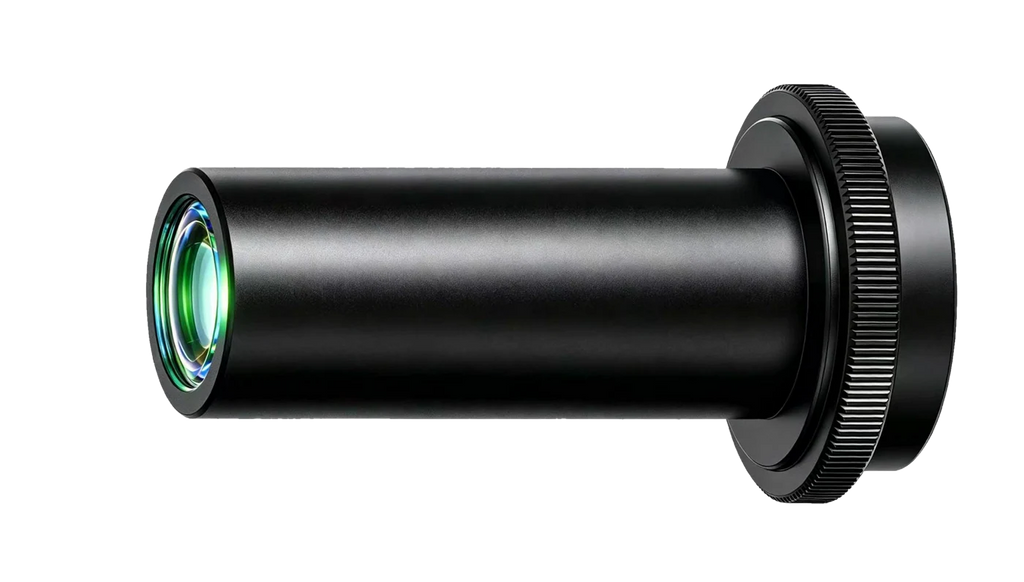

  • Object-Side Telecentric Lens, 0.7x, 70 mm WD, 1/1.8" (LS-HY-07-70-V2)

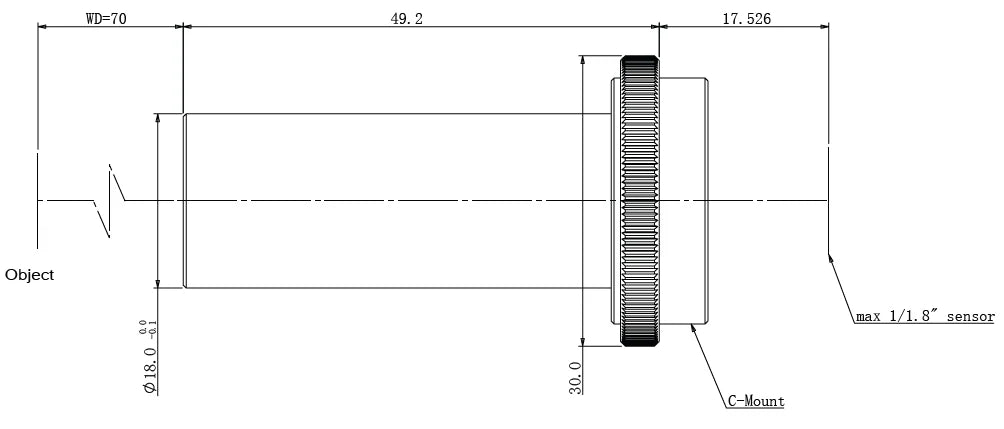

  • LS-HY-07-70-V2 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 0.7x, 70 mm WD, 1/1.8" (LS-HY-07-70-V2)

Model LS-HY-07-70-V2

  • Magnification0.7
  • MountC-mount
  • Sensor1/1.8"
  • Working distance70 mm
  • ApertureF22.1
$819.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.7x, 70 mm WD, 1/1.8". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/1.8"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HY-07-70-V2

Optics

Magnification0.7
Working distance70 mm
F-numberF22.1
Image size1/1.8"
Depth of field3.6 mm
Distortion≤ 0.02%
Object-side resolution21.3 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension49.2 mm × Φ18 mm
Shipping weight (estimated)0.66 kg

Other models in the H Series Object-Side Telecentric lenses series

See all 40 models
ModelSize / key dataPriceAvailabilityLink
LS-HY-1-180C 1x, 180 mm WD, 1/2" $689.00 5 in stock View
LS-HY-1-110 1x, 113 mm WD, 1/2" $689.00 5 in stock View
LS-HY-1-150 1x, 150 mm WD, 1/2" $689.00 2 in stock View
LS-HY-1-113C 1x, 113 mm WD, 1/2" $689.00 4 in stock View
LS-HY-1-65CN 1x, 65 mm WD, 1/2" $709.00 3 in stock View
LS-HY-1-65N 1x, 65 mm WD, 1/2" $709.00 5 in stock View
LS-HY-08-150C 0.8x, 150 mm WD, 1/2" $729.00 3 in stock View
LS-HY-08-150 0.8x, 150 mm WD, 1/2" $729.00 2 in stock View
LS-HY-08-130 0.8x, 130 mm WD, 1/2" $739.00 2 in stock View
LS-HY-08-130C 0.8x, 130 mm WD, 1/2" $739.00 2 in stock View
LS-HY-08-65 0.8x, 65 mm WD, 1/2" $739.00 3 in stock View
LS-HY-08-65C 0.8x, 110 mm WD, 1/2" $789.00 3 in stock View
LS-HY-06-65C 0.6x, 65 mm WD, 1/2" $809.00 2 in stock View
LS-HY-05-190 0.5x, 190 mm WD, 1/2" $829.00 4 in stock View
LS-HY-05-510C 0.5x, 510 mm WD, 1/1.8" $829.00 5 in stock View
LS-HY-05-350C 0.5x, 350 mm WD, 1/2" $829.00 4 in stock View
LS-HY-05-65 0.5x, 65 mm WD, 1/2" $929.00 4 in stock View
LS-HY-05-110C-V2 0.5x, 110 mm WD, 1/2" $929.00 5 in stock View
LS-HY-05-110-V2 0.5x, 110 mm WD, 1/2" $929.00 3 in stock View
LS-HY-03-110-MP 0.3x, 110 mm WD, 1/1.8" $969.00 5 in stock View
LS-HY-05-225 0.5x, 225 mm WD, 1/2.5" $999.00 2 in stock View
LS-HY-04-113 0.4x, 113 mm WD, 1/2.5" $1,039.00 2 in stock View
LS-HY-012-250 0.12x, 250 mm WD, 1/2" $2,269.00 4 in stock View
LS-HY-009-660 0.09x, 660 mm WD, 1/1.7" $5,699.00 Quote Ships in 2-3 weeks View
