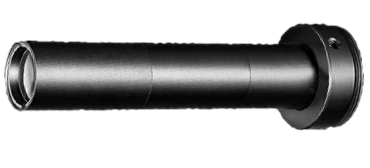

Object-Side Telecentric Lens, 0.8x, 65 mm WD, 1/2" (LS-HY-08-65)
  • Object-Side Telecentric Lens, 0.8x, 65 mm WD, 1/2" (LS-HY-08-65)

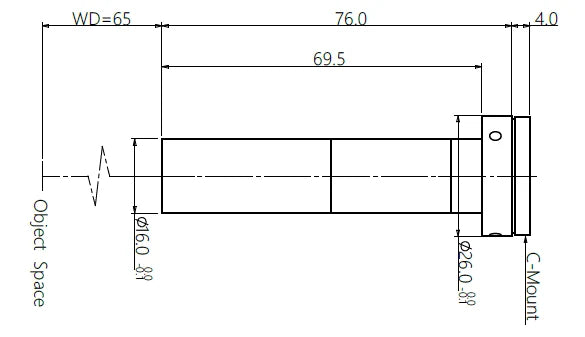

  • LS-HY-08-65 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 0.8x, 65 mm WD, 1/2" (LS-HY-08-65)

Model LS-HY-08-65

  • Magnification0.8
  • MountC-mount
  • Sensor1/2"
  • Working distance65 mm
  • ApertureF11.9
$739.00

In stock - ships the same business day (3 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 0.8x, 65 mm WD, 1/2". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HY-08-65

Optics

Magnification0.8
Working distance65 mm
F-numberF11.9
Image size1/2"
Depth of field1.5 mm
Distortion≤ 0.1%
Object-side resolution10 μm
Object-side telecentricity≤ 0.01°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension76 mm × Φ26 mm
Shipping weight (estimated)0.66 kg
