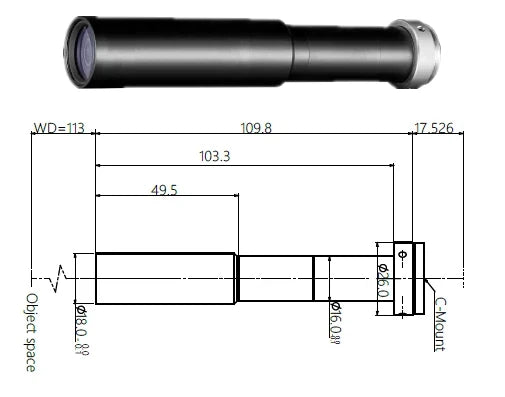

Object-Side Telecentric Lens, 1x, 113 mm WD, 1/2" (LS-HY-1-110)
  • Object-Side Telecentric Lens, 1x, 113 mm WD, 1/2" (LS-HY-1-110)

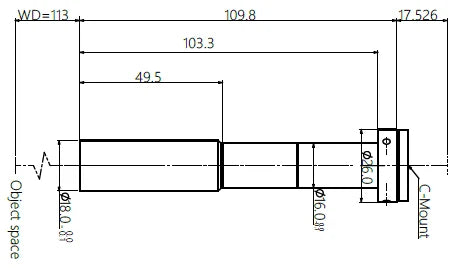

  • LS-HY-1-110 dimensions (mm)

Telecentric lenses

Object-Side Telecentric Lens, 1x, 113 mm WD, 1/2" (LS-TCL-0492)

Model LS-TCL-0492

  • Magnification1
  • MountC-mount
  • Sensor1/2"
  • Working distance113 mm
  • ApertureF13.7
$689.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.66 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Object-Side Telecentric Lens, 1x, 113 mm WD, 1/2". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0492

Optics

Magnification1
Working distance113 mm
F-numberF13.7
Image size1/2"
Depth of field1.1 mm
Distortion≤ 0.05%
Object-side resolution9.2 μm
Object-side telecentricity≤ 0.01°
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension109.8 mm × Φ26 mm
Shipping weight (estimated)0.66 kg
