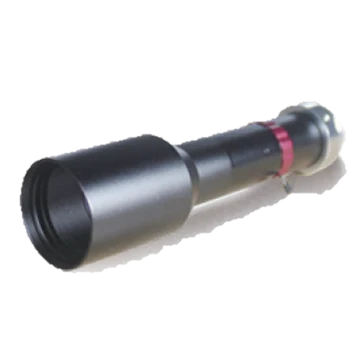

Object-Side Telecentric Lens, 0.5x, 190 mm WD, 1/2" (LS-TCL-0511)
Model LS-TCL-0511
- Magnification0.5
- MountC-mount
- Sensor1/2"
- Working distance190 mm
- ApertureF16.3
$829.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.66 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Object-Side Telecentric Lens, 0.5x, 190 mm WD, 1/2". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/2"
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0511 |
|---|
Optics
| Magnification | 0.5 |
|---|---|
| Working distance | 190 mm |
| F-number | F16.3 |
| Image size | 1/2" |
| Depth of field | 5.2 mm |
| Distortion | ≤ 0.9% |
| Object-side resolution | 22 μm |
| Object-side telecentricity | ≤ 0.1° |
| Coaxial light | Not supported |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10~50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical

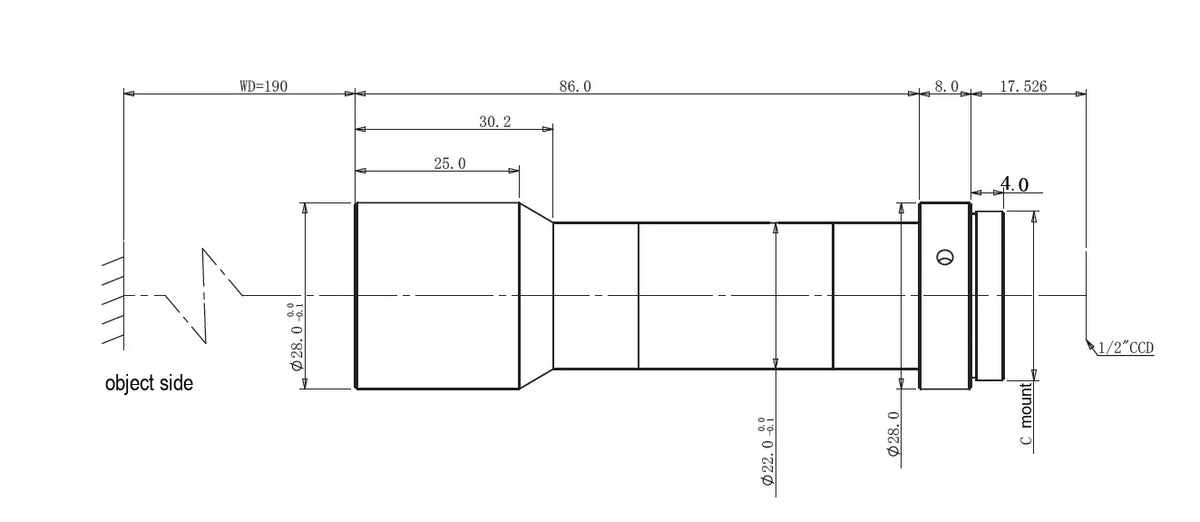

| Dimension | 94 mm × Φ28 mm |
|---|---|
| Shipping weight (estimated) | 0.66 kg |
