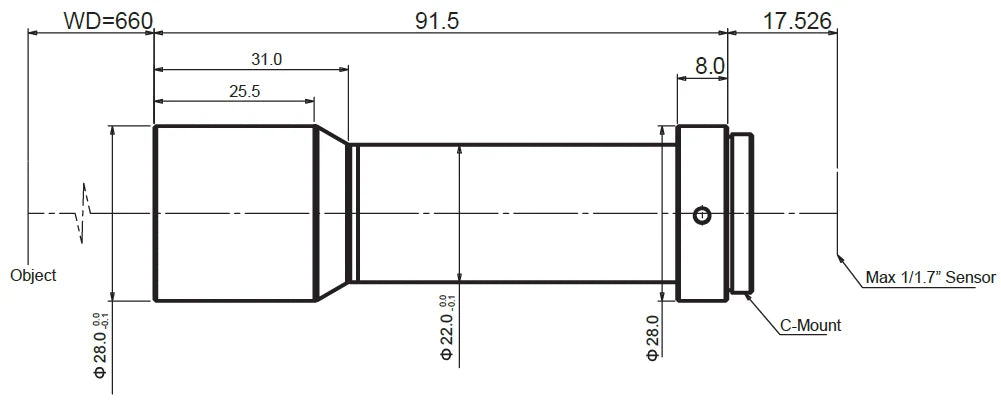

  • LS-HY-009-660 dimensions (mm)

Telecentric lenses

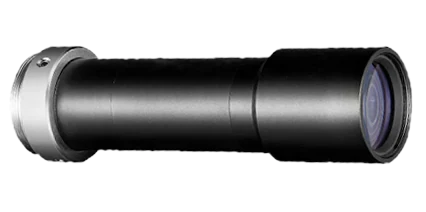

Object-Side Telecentric Lens, 0.09x, 660 mm WD, 1/1.7" (LS-HY-009-660)

Model LS-HY-009-660

  • Magnification0.09
  • MountC-mount
  • Sensor1/1.7"
  • Working distance660 mm
  • ApertureF8
$5,699.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

0.66 kg shipping weight

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Object-Side Telecentric Lens, 0.09x, 660 mm WD, 1/1.7". Excellent image quality with an optimized fixed-magnification design; supports cameras up to 1/1.7"

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-HY-009-660

Optics

Magnification0.09
Working distance660 mm
F-numberF8
Image size1/1.7"
Depth of field79 mm
Distortion≤ 0.04%
Object-side resolution59.6 μm
Object-side telecentricityNon-telecentric
Coaxial lightNot supported

Interfaces and I/O

Connector typeC-Mount

Environment and compliance

Temperature-10~50°C
CertificationRoHS2.0

Mechanical

Dimension91.5 mm × Φ28 mm
Shipping weight (estimated)0.66 kg
