90 mm, 65 MP, F-mount Large-Format Machine Vision Lens, 0.14x-0.08x (LS-FFL-1445)
  • 90 mm, 65 MP, F-mount Large-Format Machine Vision Lens, 0.14x-0.08x (LS-FFL-1445)

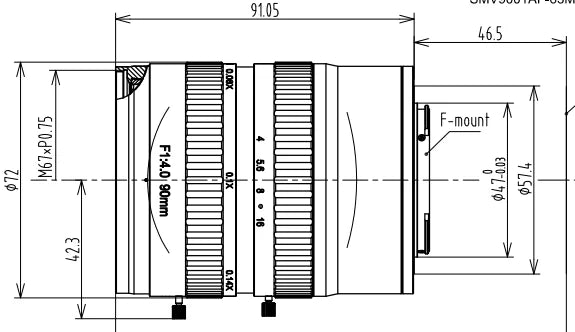

  • LS-FFL-1445 dimensions (mm)

Machine vision lenses

90 mm, 65 MP, F-mount Large-Format Machine Vision Lens, 0.14x-0.08x (LS-FFL-1445)

Model LS-FFL-1445

  • Focal length90 mm
  • Magnification0.14x-0.08x
  • MountF-mount
  • SensorLarge format
  • ApertureF4.0-16
  • Resolution65 Megapixel
$1,459.00

Ships in 2-3 weeks

1.08 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

90 mm, 65 MP, F-mount Large-Format Machine Vision Lens, 0.14x-0.08x (LS-FFL-1445)LS-FFL-1445

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

90 mm, 65 MP, F-mount Large-Format Machine Vision Lens. A 90 mm F-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 64 mm image circle, 0.01% distortion and 0.14x-0.08x magnification. At a glance: magnification 0.14x-0.08x; focal length 90 mm; resolution 65 Megapixel; aperture F4.0-16; mount F.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1445
Conjugate distance856.86 ±9 / 1123.5 ±9 / 1358.34 ±9 mm

Optics

Focal length90 mm
Image circledia. 64 mm
ApertureF4.0-16
Magnification0.14x-0.08x
Working distance vs magnification0.14X: 719.3 ±5 mm; 0.1X: 985.9 ±5 mm; 0.08X: 1220.8 ±5 mm
Flange focal distance46.5 ±0.5 mm
Distortion0.01%
Filter threadM67 x P0.75

Sensor and imaging

Resolution65 Megapixel

Electrical

Resolving power200 lp/mm axis; 125 lp/mm at dia. 46.2 and dia. 66

Mechanical

Sizedia. 72 x 91.05 mm
MountF
Shipping weight (estimated)1.08 kg

Other models in the Large-Format Machine Vision lenses (LS-FFL-S130) series

See all 13 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1435 25 mm, 1.76", 29 MP, M42-mount $879.00 Ships in 2-3 weeks View
LS-FFL-1436 35 mm, 29 MP, F-mount $969.00 Ships in 2-3 weeks View
LS-FFL-1437 35 mm, 29 MP, F-mount $969.00 Ships in 2-3 weeks View
LS-FFL-1438 40 mm, 29 MP, F-mount $1,019.00 Ships in 2-3 weeks View
LS-FFL-1439 50 mm, 29 MP, F-mount $1,099.00 Ships in 2-3 weeks View
LS-FFL-1440 50 mm, 65 MP, M58-mount $1,109.00 Ships in 2-3 weeks View
LS-FFL-1441 50 mm, 29 MP, F-mount $1,109.00 Ships in 2-3 weeks View
LS-FFL-1442 60 mm, 29 MP, F-mount $1,189.00 Ships in 2-3 weeks View
LS-FFL-1444 80 mm, 29 MP, F-mount $1,359.00 Ships in 2-3 weeks View
LS-FFL-1443 80 mm, 65 MP, M58-mount $1,369.00 Ships in 2-3 weeks View
LS-FFL-1446 90 mm, 29 MP, F-mount $1,459.00 Ships in 2-3 weeks View
LS-FFL-1447 90 mm, 65 MP, F-mount $1,459.00 Ships in 2-3 weeks View
