35 mm, 29 MP, F-mount Large-Format Machine Vision Lens, 29Megapixel (up to 5μ) (LS-FFL-1436)
Model LS-FFL-1436
- Focal length35 mm
- MountF-mount
- SensorFull frame
- ApertureF2.8
- Resolution29Megapixel (up to 5μ)
$969.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 29 MP, F-mount Large-Format Machine Vision Lens. 35 mm, 29 megapixel lens for dia. 45 mm large-format and 8K line-scan cameras, with F / M42 mount and <0.4% distortion. At a glance: focal length 35 mm; format dia. 45; resolution 29Megapixel (up to 5μ); aperture F2.8; mount F.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1436 |
|---|---|
| Format | dia. 45 |
| FOV | 60.3 mm |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.8 |
| Distortion | <0.4% |
| Focus distance | 125.5 mm @0.25x |
| Filter thread | M58 x 0.75 |
| Magnification / working distance | 0.05x @ 728 mm / 0.1x @ 351 mm / 0.2x @ 164 mm |
| F-number range | 2.8~16 |
| Magnification / W.D. | 0.05x: 728 mm; 0.1x: 351 mm; 0.2x: 164 mm |
Sensor and imaging
| Resolution | 29Megapixel (up to 5μ) |
|---|
Light
| Illumination | 68% |
|---|
Mechanical
| Mount | F |
|---|---|
| Weight | 200 g |
| Size | dia. 61 x 81.5 mm (max) |

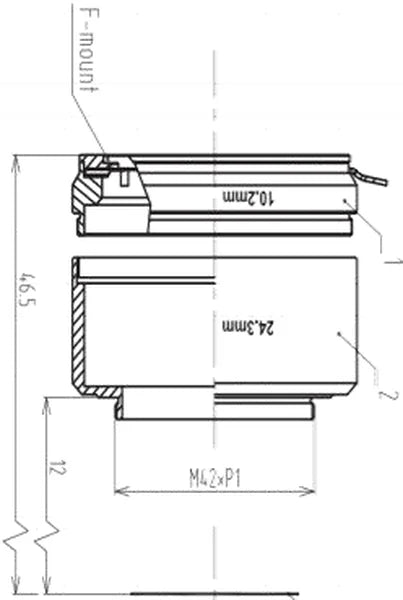

| Mount adapter | F-mount with M42 x P1 adapter |
| Filter size | M58 x 0.75 |
| Shipping weight (estimated) | 0.38 kg |
