Machine vision lenses
25 mm, 1.76", 29 MP, M42-mount Large-Format Machine Vision Lens (LS-FFL-1435)
Model LS-FFL-1435
- Focal length25 mm
- MountM42
- Sensor1.75"
- ApertureF2.0 Manual Iris
- Resolution29 Megapixel
$879.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
25 mm, 1.76", 29 MP, M42-mount Large-Format Machine Vision Lens. 25 mm F2.0 29 megapixel machine vision lens for 1.76" large-format cameras, M42 x 1 mount, <1.5% distortion. At a glance: focal length 25 mm; format 1.76"; resolution 29 Megapixel; aperture F2.0 Manual Iris; mount M42 x 1.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1435 |
|---|---|
| Format | 1.76" |
| Angle of view (1.76", DxHxV) | 58.9 x 48.5 x 37 deg |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture | F2.0 Manual Iris |
| M.O.D. | 0.3 m |
| Distortion | <1.5% |
| Filter thread | M62 x 0.75 |

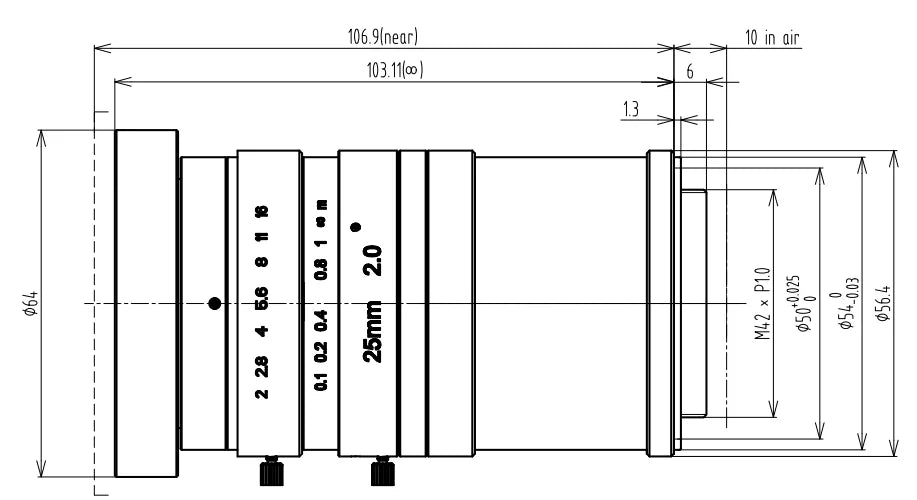

| Back focus | 10 mm (in air), per drawing |
Sensor and imaging
| Resolution | 29 Megapixel |
|---|
Mechanical
| Size | dia. 64 x 109 |
|---|---|
| Mount | M42 x 1 |
| Weight | 320 g |
| Shipping weight (estimated) | 0.55 kg |
Other models in the Large-Format Machine Vision lenses (LS-FFL-S130) series
See all 13 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1436 | 35 mm, 29 MP, F-mount | $969.00 | 2 in stock | View |
| LS-FFL-1437 | 35 mm, 29 MP, F-mount | $969.00 | 5 in stock | View |
| LS-FFL-1438 | 40 mm, 29 MP, F-mount | $1,019.00 | 2 in stock | View |
| LS-FFL-1439 | 50 mm, 29 MP, F-mount | $1,099.00 | 4 in stock | View |
| LS-FFL-1440 | 50 mm, 65 MP, M58-mount | $1,109.00 | 2 in stock | View |
| LS-FFL-1441 | 50 mm, 29 MP, F-mount | $1,109.00 | 4 in stock | View |
| LS-FFL-1442 | 60 mm, 29 MP, F-mount | $1,189.00 | 5 in stock | View |
| LS-FFL-1444 | 80 mm, 29 MP, F-mount | $1,359.00 | 4 in stock | View |
| LS-FFL-1443 | 80 mm, 65 MP, M58-mount | $1,369.00 | 4 in stock | View |
| LS-FFL-1445 | 90 mm, 65 MP, F-mount | $1,459.00 | 2 in stock | View |
| LS-FFL-1446 | 90 mm, 29 MP, F-mount | $1,459.00 | 2 in stock | View |
| LS-FFL-1447 | 90 mm, 65 MP, F-mount | $1,459.00 | 2 in stock | View |
