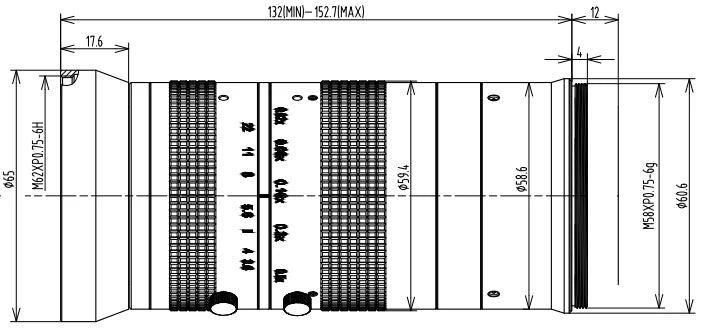

  • LS-FFL-1440 dimensions (mm)

Machine vision lenses

50 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-FFL-1440)

Model LS-FFL-1440

  • Focal length50 mm ±5%
  • Magnification0.5x-0.02x
  • MountM58
  • SensorLarge format
  • ApertureF3.6-22
  • Resolution65 Megapixel
$1,109.00

Ships in 2-3 weeks

1.08 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 65 MP, M58-mount Large-Format Machine Vision Lens (LS-FFL-1440)LS-FFL-1440

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 65 MP, M58-mount Large-Format Machine Vision Lens. A 50 mm M58/F-mount large-format machine vision lens for 65 megapixel 3.2/5 um 8K sensors with a 46 mm image circle, -0.2% distortion and 0.5x-0.02x magnification. At a glance: magnification 0.5x-0.02x; focal length 50 mm ±5%; resolution 65 Megapixel; aperture F3.6-22; mount M58 x P0.75.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1440
Angle of view (D)43.4 deg

Optics

Focal length50 mm ±5%
Image circledia. 46 mm
ApertureF3.6-22
Magnification0.5x-0.02x
Working distance vs magnification0.02X: 2500 mm; 0.06X: 800 mm; 0.16X: 300 mm; 0.3X: 150 mm; 0.5X: 80 mm
Flange focal distance12 mm
TV distortion<0.2%

Sensor and imaging

Resolution65 Megapixel

Mechanical

Entrance pupil diameterdia. 47.2 mm
Sizedia. 65 x 152.7 mm
Front threadM62 x P0.75
MountM58 x P0.75
Shipping weight (estimated)1.08 kg
