50 mm, 29 MP, F-mount Large-Format Machine Vision Lens, 50 mm ±5% (LS-FFL-1441)
  • 50 mm, 29 MP, F-mount Large-Format Machine Vision Lens, 50 mm ±5% (LS-FFL-1441)

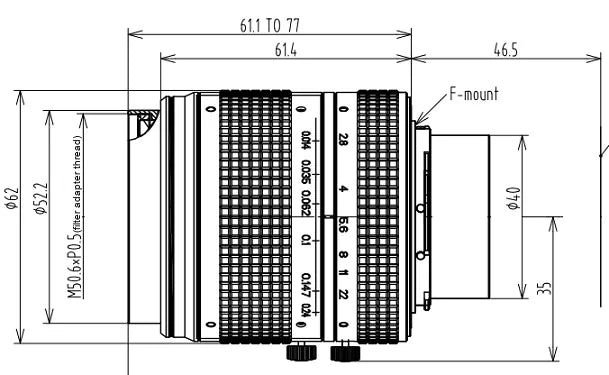

  • LS-FFL-1441 dimensions (mm)

Machine vision lenses

50 mm, 29 MP, F-mount Large-Format Machine Vision Lens, 50 mm ±5% (LS-FFL-1441)

Model LS-FFL-1441

  • Focal length50 mm ±5%
  • Magnification0.24x-0.014x
  • MountF-mount
  • SensorFull frame
  • ApertureF2.8-22
  • Resolution29 Megapixel
$1,109.00

Ships in 2-3 weeks

1.08 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

50 mm, 29 MP, F-mount Large-Format Machine Vision Lens, 50 mm ±5% (LS-FFL-1441)LS-FFL-1441

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

50 mm, 29 MP, F-mount Large-Format Machine Vision Lens. A 50 mm F-mount large-format machine vision lens for 29 megapixel 5/7 um 4K sensors with a 44 mm image circle, <0.3% distortion and 0.24x-0.014x magnification. At a glance: magnification 0.24x-0.014x; focal length 50 mm ±5%; resolution 29 Megapixel; aperture F2.8-22; mount F.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1441
Angle of view (D)47 deg

Optics

Focal length50 mm ±5%
Image circledia. 44 mm
ApertureF2.8-22
Magnification0.24x-0.014x
Working distance vs magnification0.24X: 233.4 mm; 0.1X: 528 mm; 0.062X: 833.4 mm; 0.035X: 1447.5 mm; 0.014X: 3585.9 mm
Flange focal distance46.5 mm
TV distortion<0.3%

Sensor and imaging

Resolution29 Megapixel

Mechanical

Entrance pupil diameterdia. 18.1 mm
Sizedia. 62 x 77 mm
Front threadM50.6 x P0.5 (filter adapter)
MountF
Shipping weight (estimated)1.08 kg

Other models in the Large-Format Machine Vision lenses (LS-FFL-S130) series

See all 13 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-1435 25 mm, 1.76", 29 MP, M42-mount $879.00 Ships in 2-3 weeks View
LS-FFL-1436 35 mm, 29 MP, F-mount $969.00 Ships in 2-3 weeks View
LS-FFL-1437 35 mm, 29 MP, F-mount $969.00 Ships in 2-3 weeks View
LS-FFL-1438 40 mm, 29 MP, F-mount $1,019.00 Ships in 2-3 weeks View
LS-FFL-1439 50 mm, 29 MP, F-mount $1,099.00 Ships in 2-3 weeks View
LS-FFL-1440 50 mm, 65 MP, M58-mount $1,109.00 Ships in 2-3 weeks View
LS-FFL-1442 60 mm, 29 MP, F-mount $1,189.00 Ships in 2-3 weeks View
LS-FFL-1444 80 mm, 29 MP, F-mount $1,359.00 Ships in 2-3 weeks View
LS-FFL-1443 80 mm, 65 MP, M58-mount $1,369.00 Ships in 2-3 weeks View
LS-FFL-1445 90 mm, 65 MP, F-mount $1,459.00 Ships in 2-3 weeks View
LS-FFL-1446 90 mm, 29 MP, F-mount $1,459.00 Ships in 2-3 weeks View
LS-FFL-1447 90 mm, 65 MP, F-mount $1,459.00 Ships in 2-3 weeks View
