Machine vision lenses
35 mm, 29 MP, F-mount Large-Format Machine Vision Lens, 29 Megapixel (LS-FFL-1437)
Model LS-FFL-1437
- Focal length35 mm
- Magnification0.03x
- MountF-mount
- SensorFull frame
- Working distance340-3500 mm
- ApertureF2.8 Manual Iris
$969.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.55 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm, 29 MP, F-mount Large-Format Machine Vision Lens. 35 mm F2.8 large-format area-scan lens with 29 megapixel resolution, F mount and <0.5% distortion, for working distances of 340-3500 mm at 0.03x magnification. At a glance: magnification 0.03x; working distance 340-3500 mm; focal length 35 mm; format dia. 45; resolution 29 Megapixel.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1437 |
|---|---|
| Format | dia. 45 |
| Angle of view (dia. 45, D) | 65 deg |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F2.8 Manual Iris |
| Working distance | 340-3500 mm |
| Magnification | 0.03x |
| Distortion | <0.5% |
| Filter thread | M67 x 0.75 |
| Max. image circle | dia. 45.3 |
| Back focal length | 46.5 mm (in air) |
| Working distance at 0.01x / 0.03x / 0.1x | 3500 / 1158.7 / 340 mm |
Sensor and imaging
| Resolution | 29 Megapixel |
|---|
Mechanical

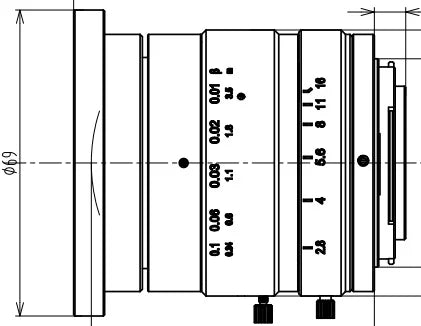

| Size | dia. 69 x 74.7 |
|---|---|
| Mount | F |
| Weight | 320 g |
| Entrance pupil diameter | dia. 12.2 |
| Object dimension at 0.01x / 0.03x / 0.1x (image 36.2 x 24.1) | 3664 x 2432 / 1224.6 x 812 / 368.8 x 243.9 mm |
| Shipping weight (estimated) | 0.55 kg |
