Rendered illustration: the actual product may differ in appearance.
Machine vision lenses

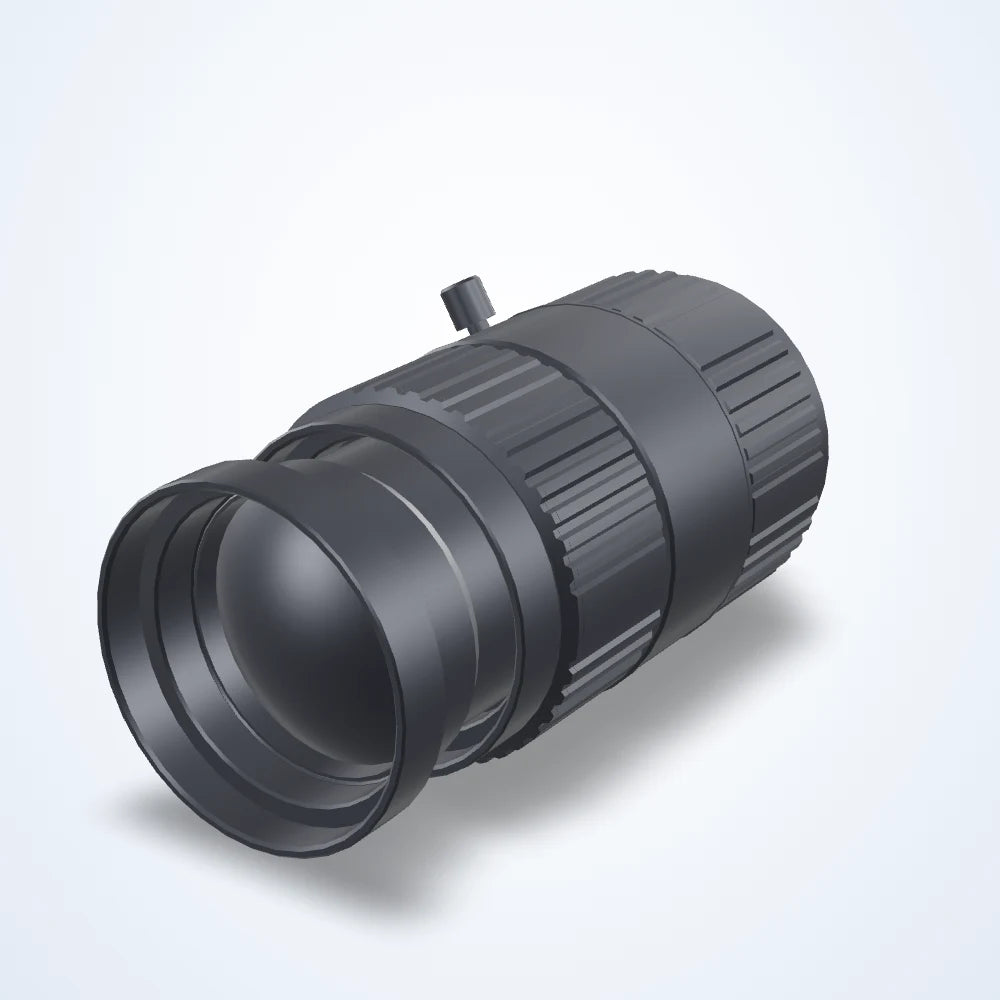

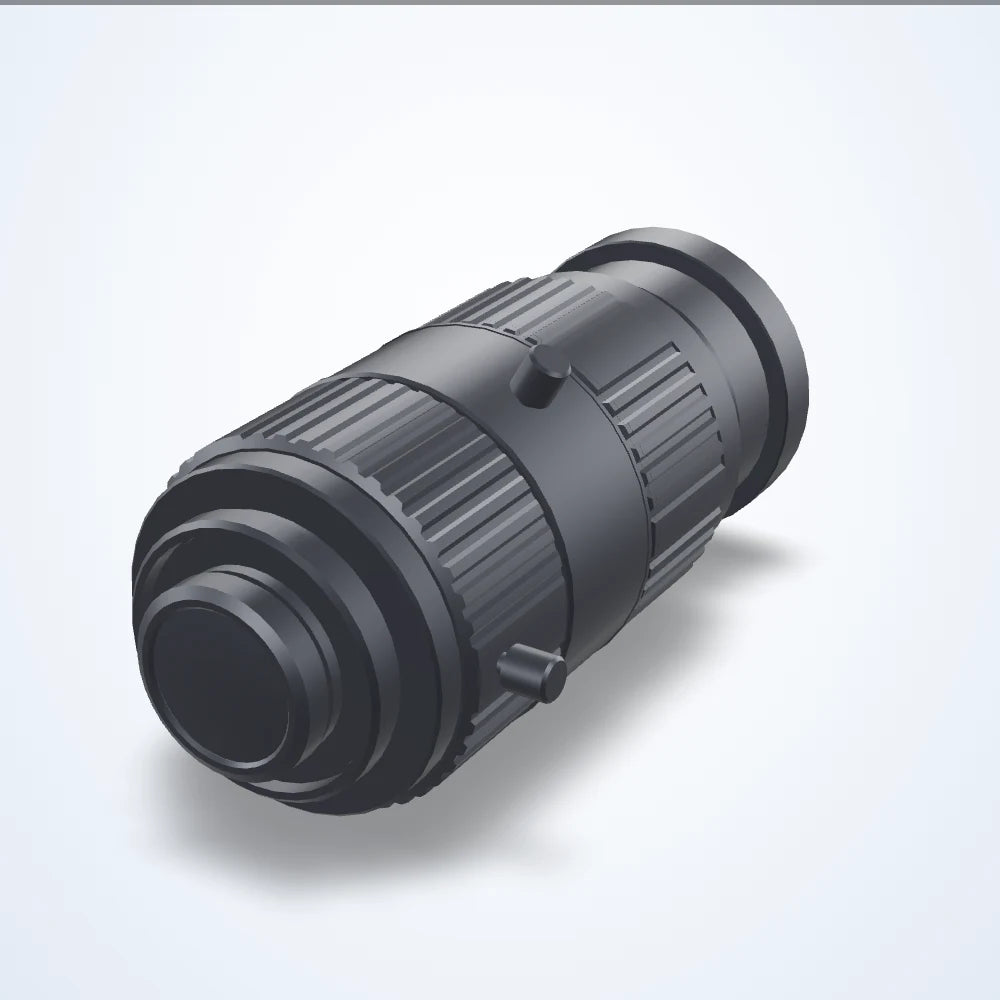

75 mm lens, 2/3", C-mount, front diameter 24.8 mm (LS-FFL-0029)
Model LS-FFL-0029
- Focal length75 mm
- MountC-mount
- Sensor2/3"
- Aperturef/2.8
- Resolution1.5
$249.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 300 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0029 |
|---|---|
| Minimum object distance | 300 mm |
| Aov @ 1/2″ h°×v°×d° | 5 × 3.7 × 6.2° |
| Aov @ 2/3″ h°×v°×d° | 6.8 × 5.1 × 8.5° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture (max) | f/2.8 |
| Back focal length | 21.5 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|

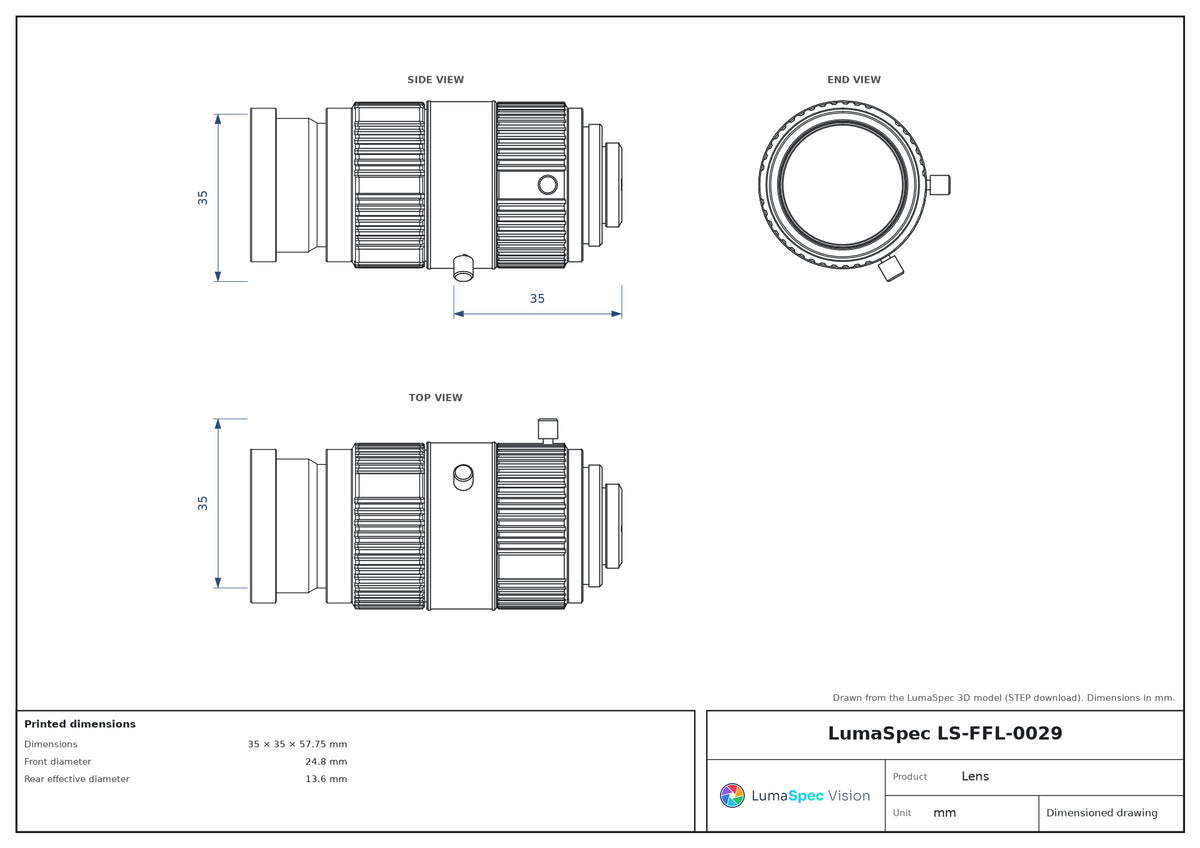

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 35 × 35 × 57.75 mm |
| Front diameter | 24.8 mm |
| Rear effective diameter | 13.6 mm |
| Weight | 113 |
