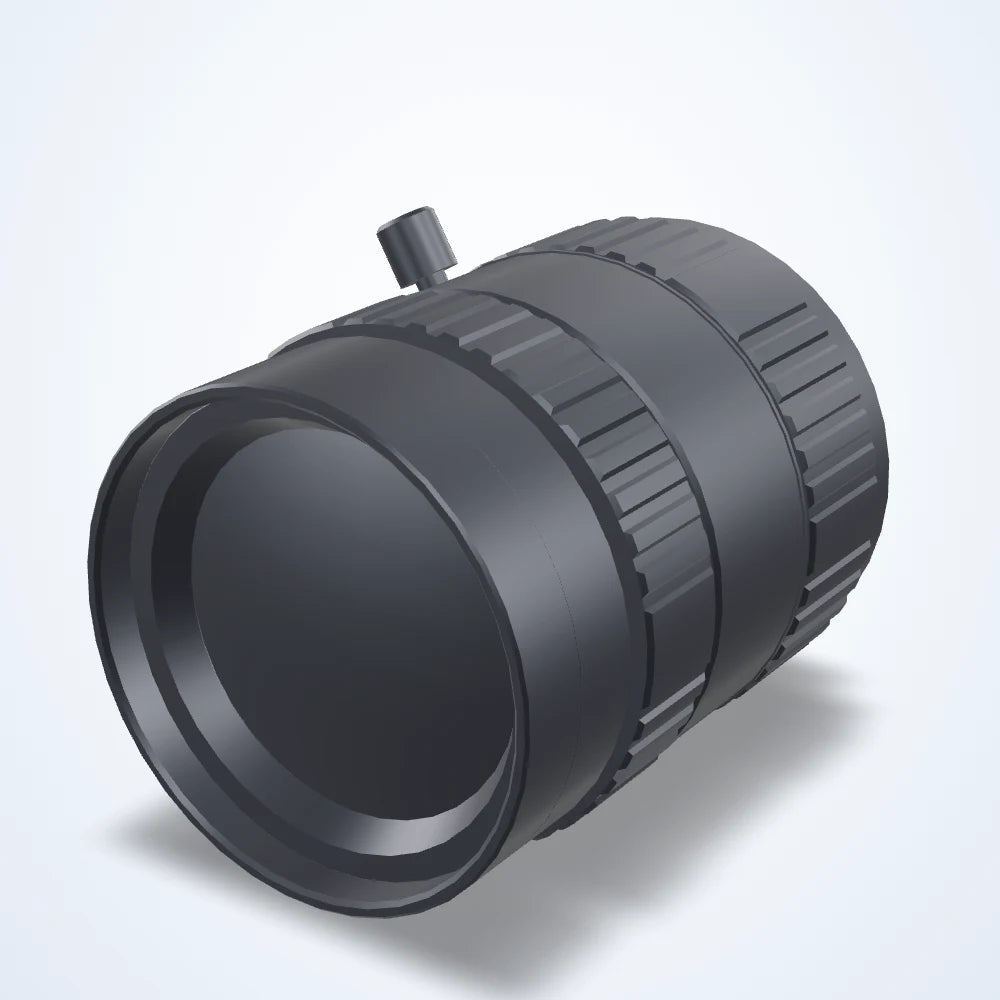

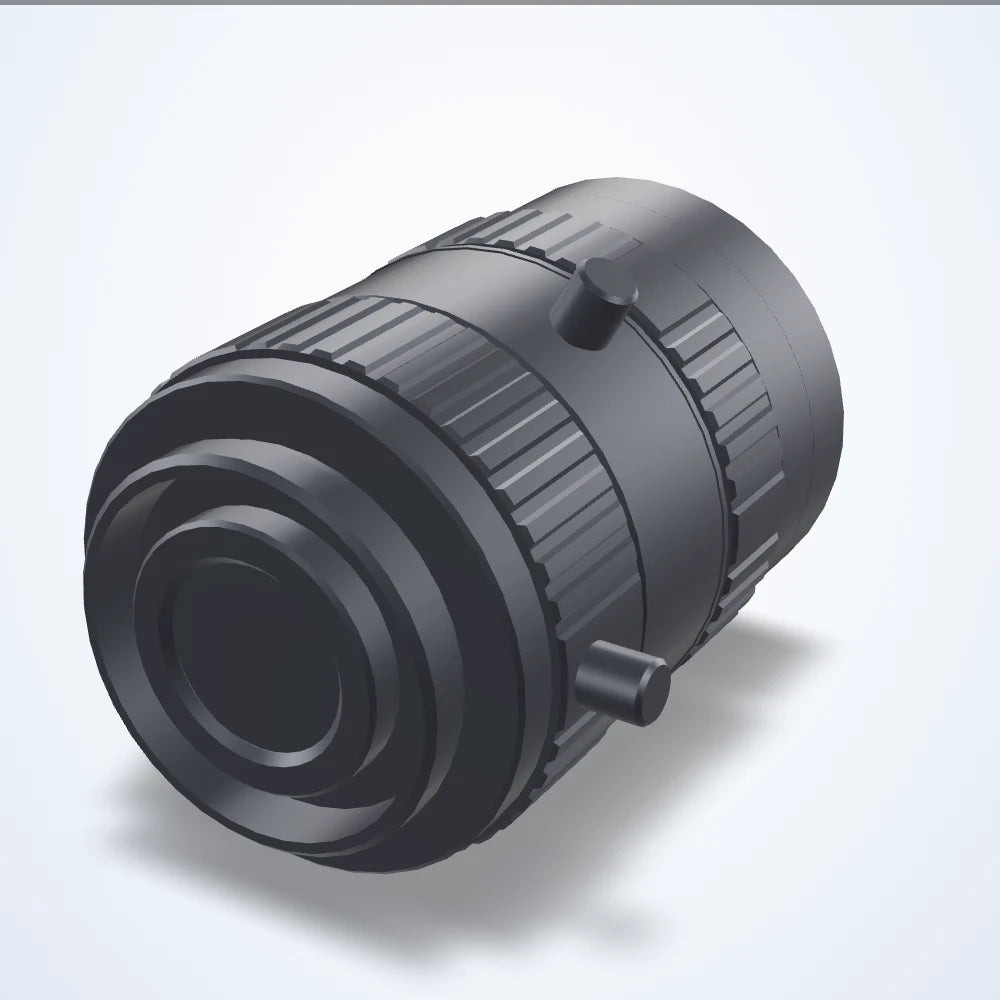

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount, front diameter 24 mm (LS-FFL-0025)
Model LS-FFL-0025
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.4
- Resolution1.5
$169.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 300 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0025 |
|---|---|
| Minimum object distance | 300 mm |
| Aov @ 1/2″ h°×v°×d° | 10.1 × 7.6 × 12.6° |
| Aov @ 2/3″ h°×v°×d° | 13.9 × 10.4 × 17.3° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (max) | f/1.4 |
| Back focal length | 17.1 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Focus range | 0.3 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|

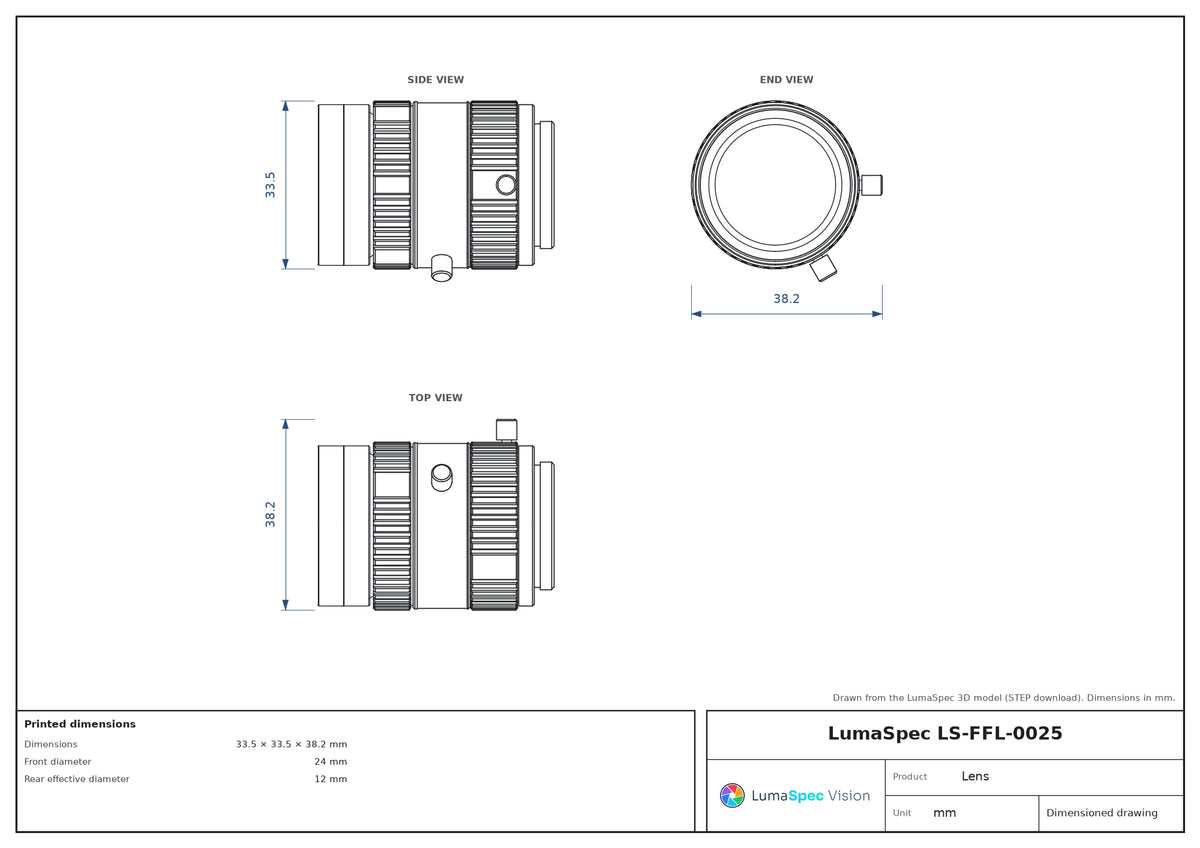

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 33.5 × 33.5 × 38.2 mm |
| Front diameter | 24 mm |
| Rear effective diameter | 12 mm |
| Weight | 87 |
LS-FFL-0025
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 35 mm
- Sensor format
- 2/3"
- Mount
- C-mount
- Aperture (max)
- f/1.4
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
