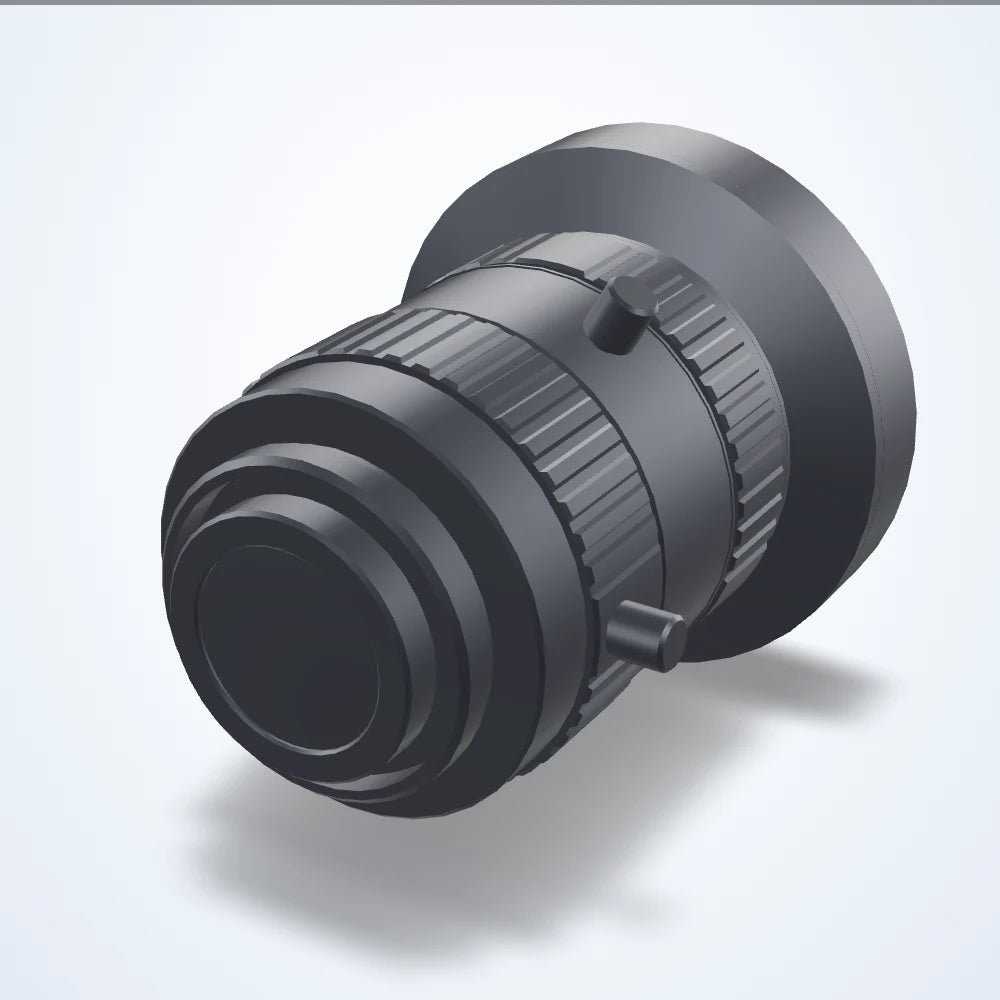

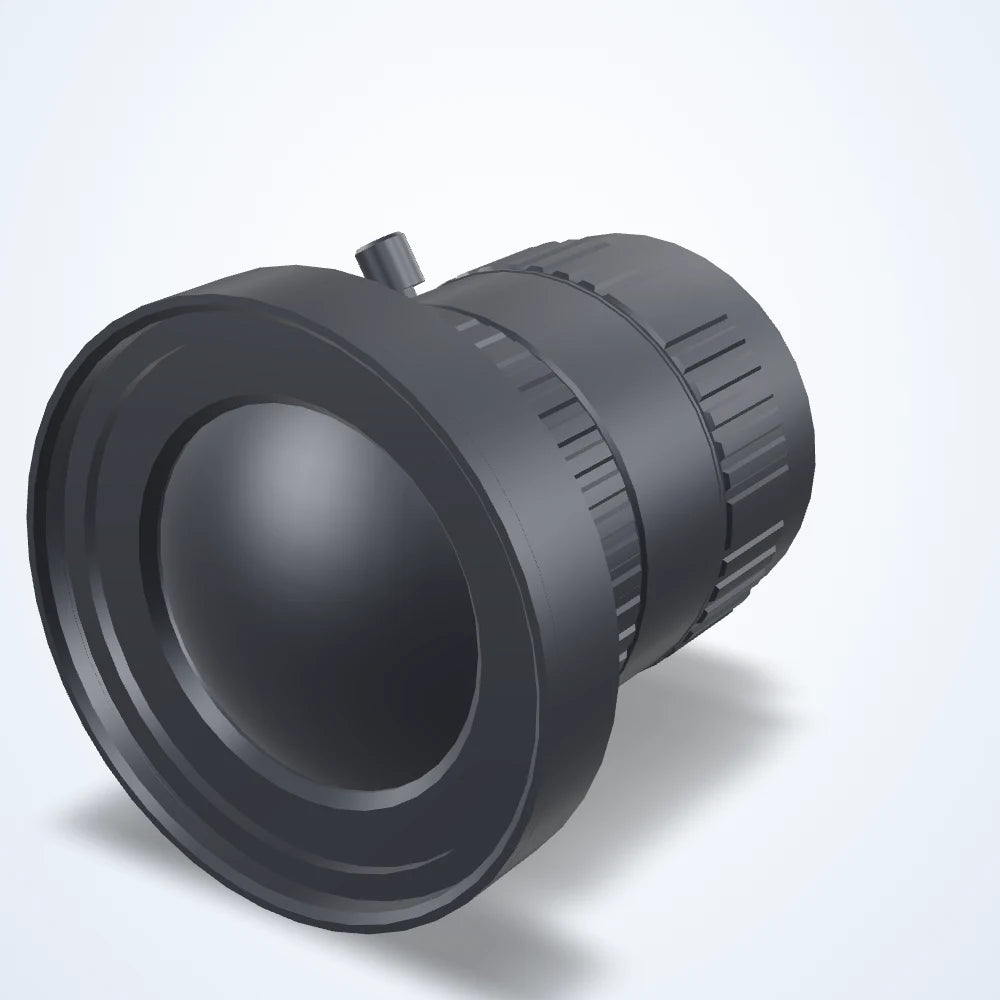

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5 mm lens, 1/2", C-mount, Visible (LS-FFL-0016)
Model LS-FFL-0016
- Focal length5 mm
- MountC-mount
- Sensor1/2"
- Aperturef/1.4
- Resolution1.5
$199.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0016 |
|---|---|
| Minimum object distance | 100 mm |
| Aov @ 1/2″ h°×v°×d° | 65.5 × 51.4 × 76.7° |
| Aov @ 1/3″ h°×v°×d° | 51.4 × 39.5 × 62.3° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 5 mm |
|---|---|
| Aperture (max) | f/1.4 |
| Back focal length | 10.8 mm |
| Filter thread | M43-0.75 |
| Focus control | Manual |
| Focus range | 0.1 m - 0.9 m |
| Image circle | 8 mm |
| Image size dimensions | 6.4 mm x 4.8 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1/2" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

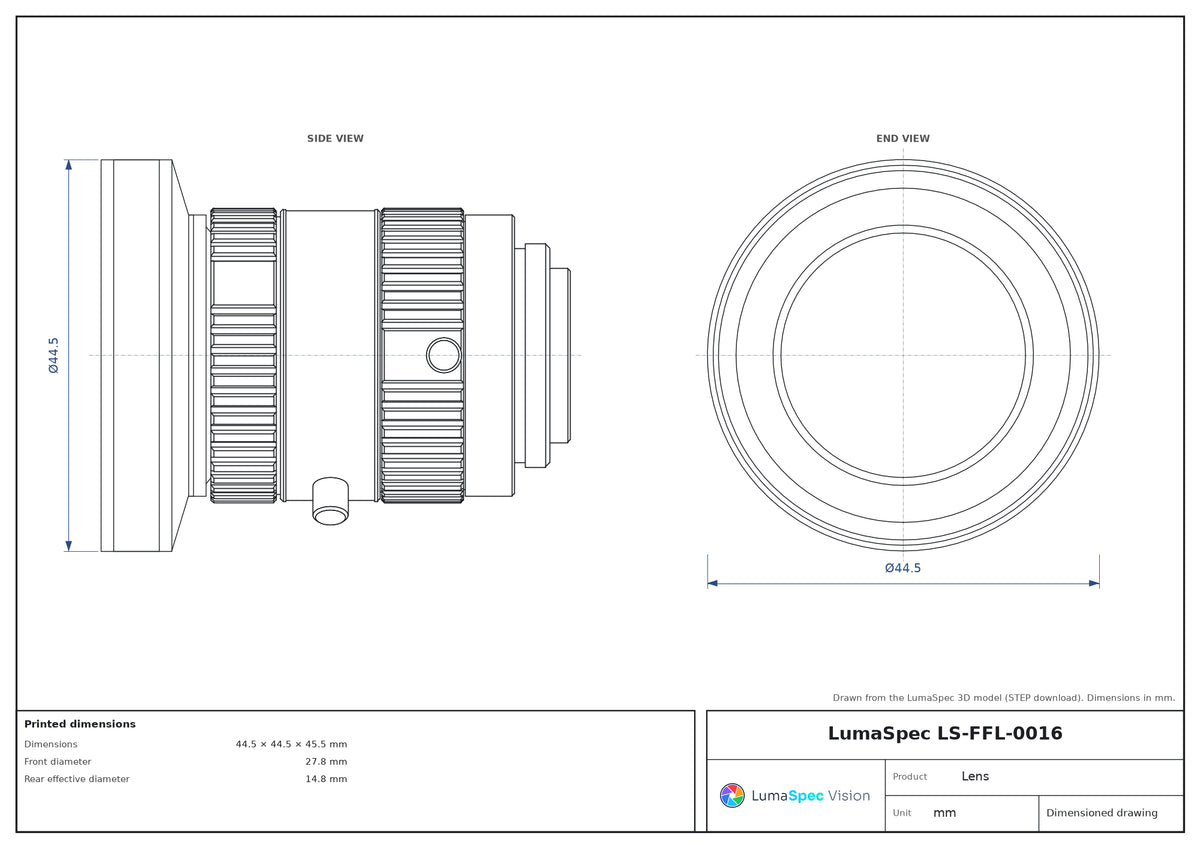

| Dimensions | 44.5 × 44.5 × 45.5 mm |
| Front diameter | 27.8 mm |
| Rear effective diameter | 14.8 mm |
| Weight | 102 |
