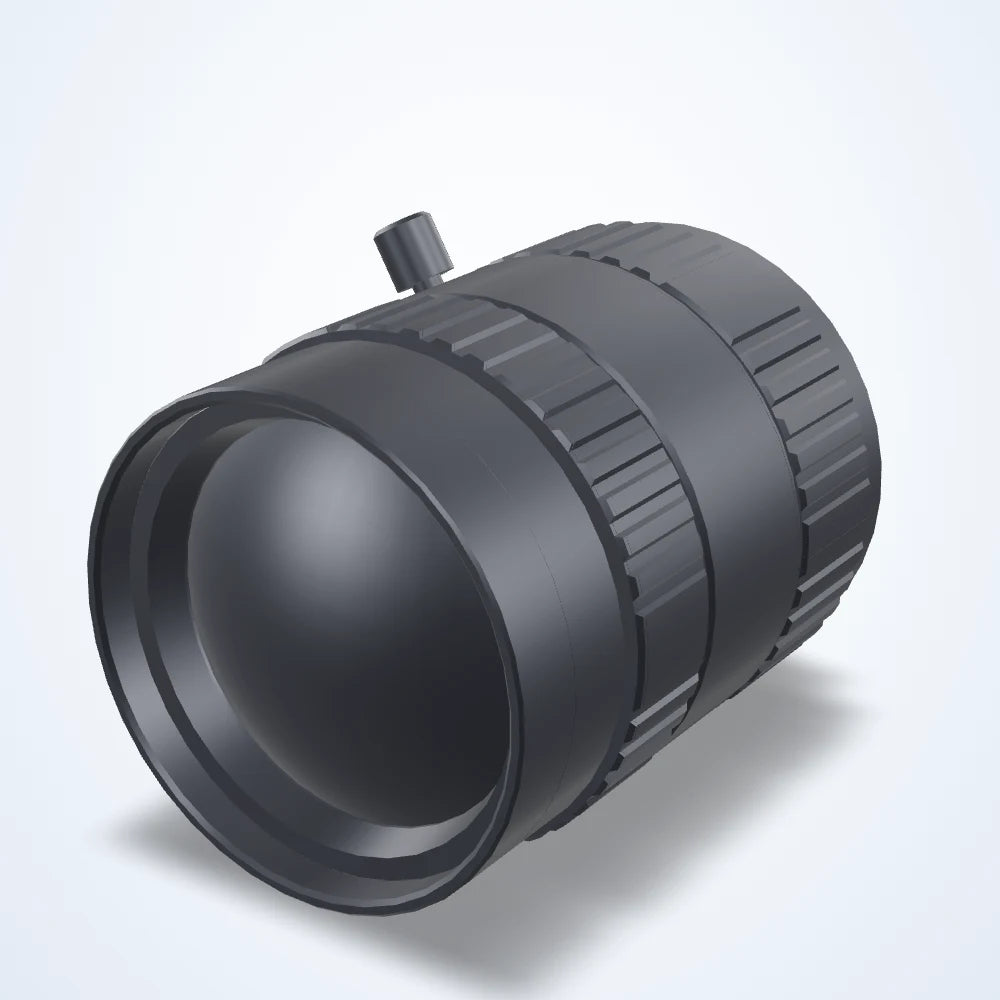

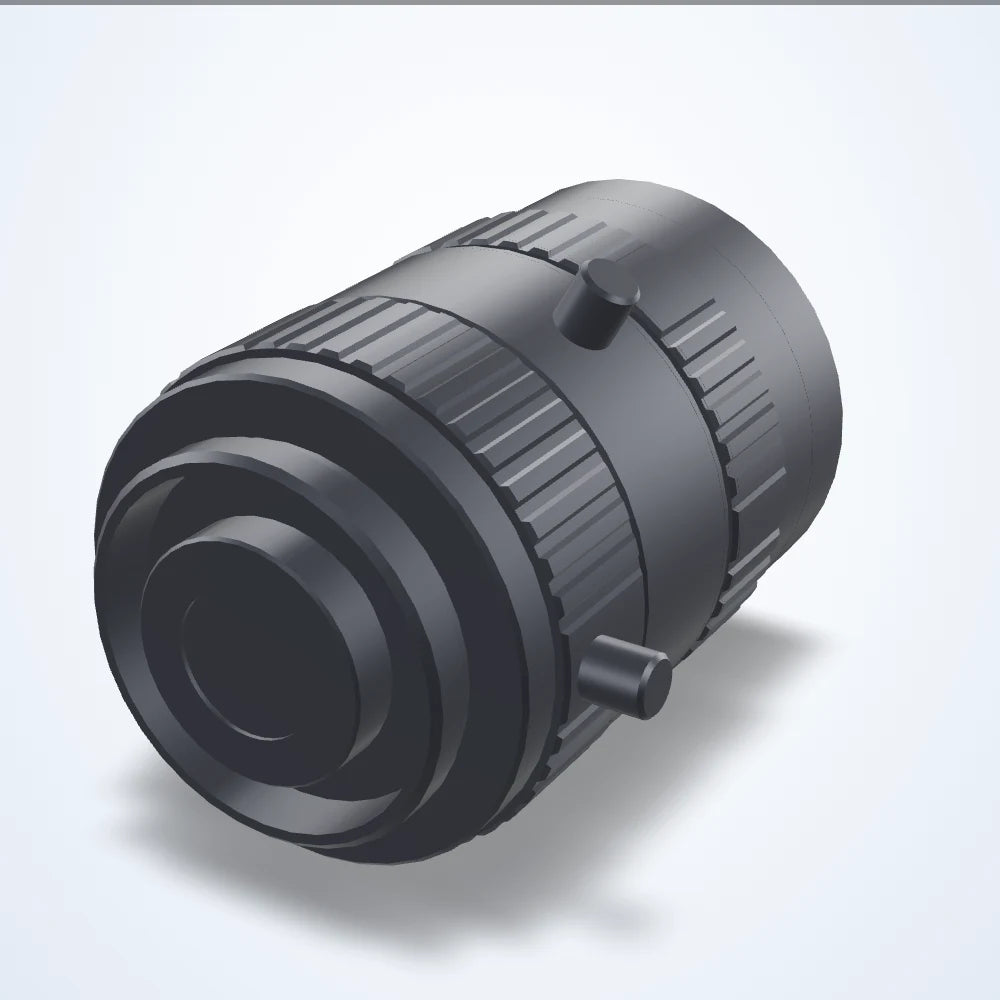

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount, front diameter 25.5 mm (LS-FFL-0027)
Model LS-FFL-0027
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.8
- Resolution1.5
$169.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0027 |
|---|---|
| Minimum object distance | 500 mm |
| Aov @ 1/2″ h°×v°×d° | 7.6 × 5.7 × 9.5° |
| Aov @ 2/3″ h°×v°×d° | 10.5 × 7.9 × 13.1° |
| Lens type | Fixed Focal Length |
| Spectrum | Visible |
| Zoom range | Fixed |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture (max) | f/1.8 |
| Back focal length | 13.1 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Image circle | 11 mm |
| Image size dimensions | 8.8 mm x 6.6 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|

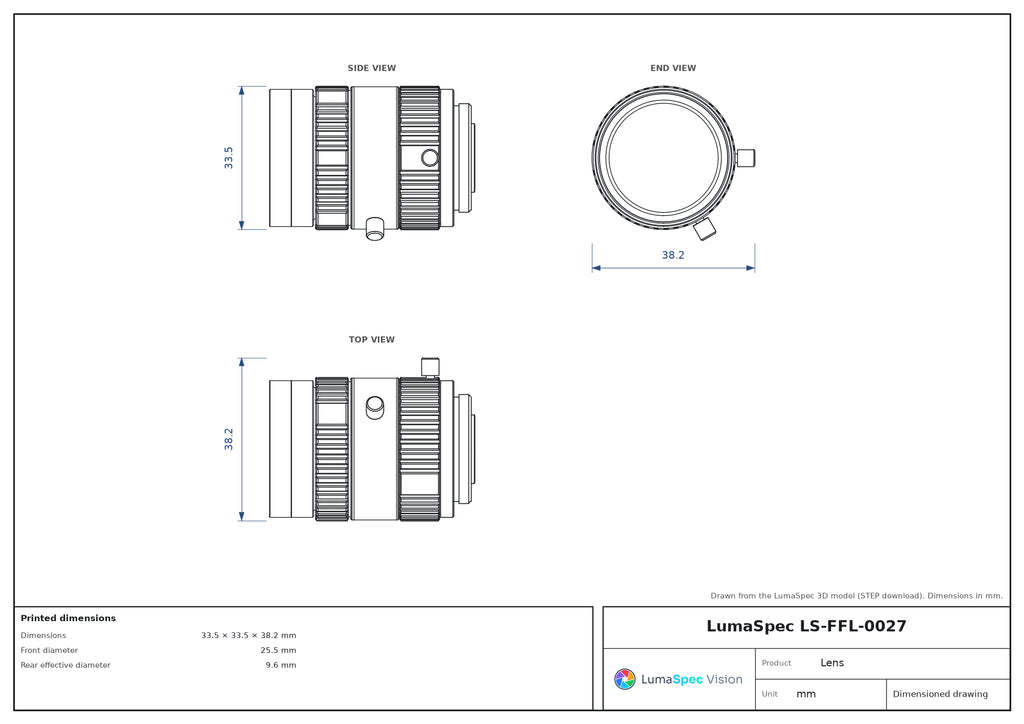

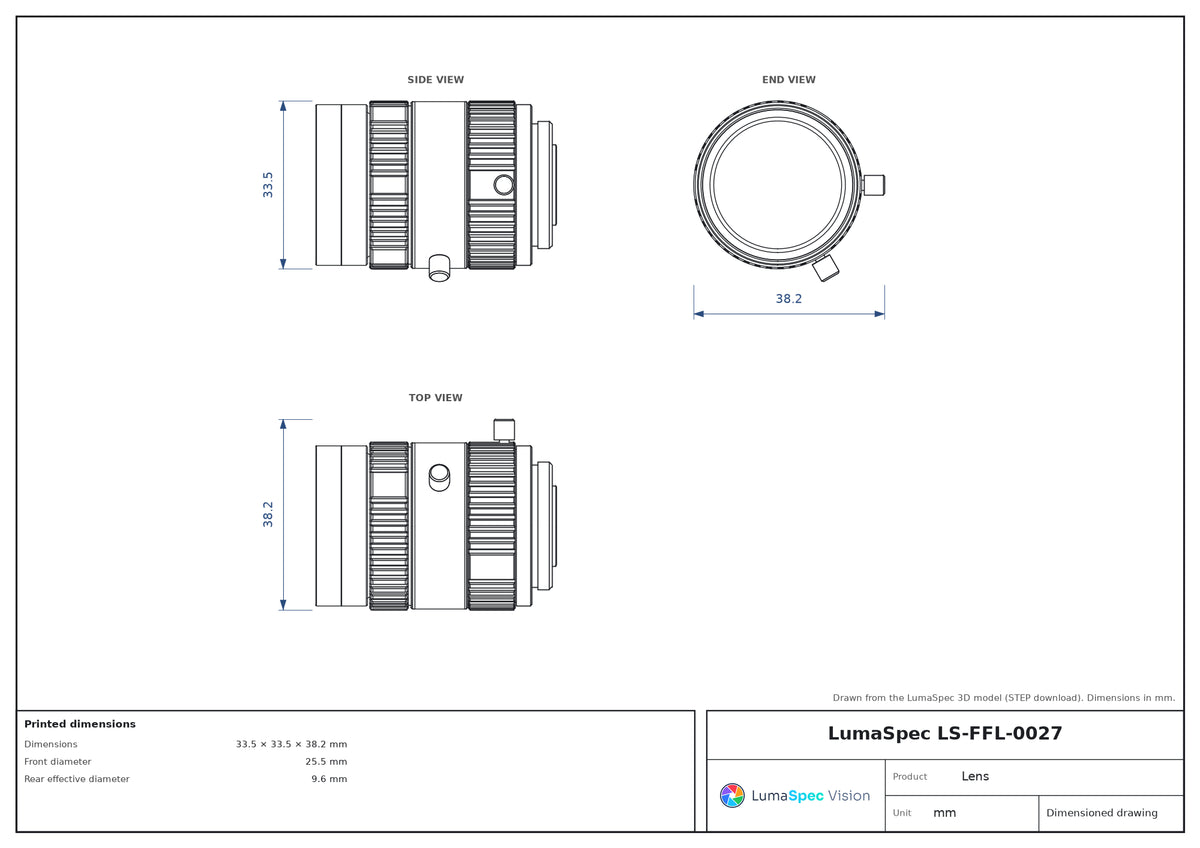

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 33.5 × 33.5 × 38.2 mm |
| Front diameter | 25.5 mm |
| Rear effective diameter | 9.6 mm |
| Weight | 85 |
