8 mm lens, 2/3", C-mount (LS-FFL-0018)

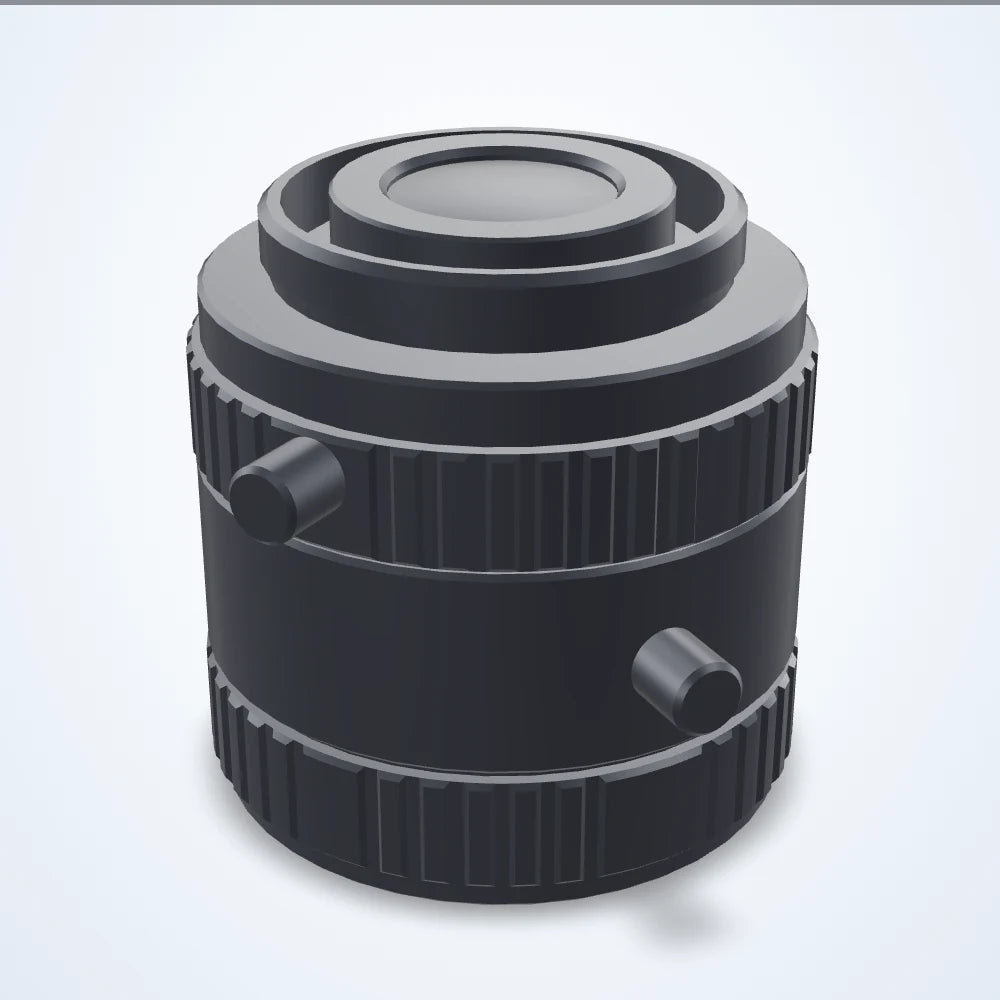

  • 8 mm lens, 2/3", C-mount (LS-FFL-0018)

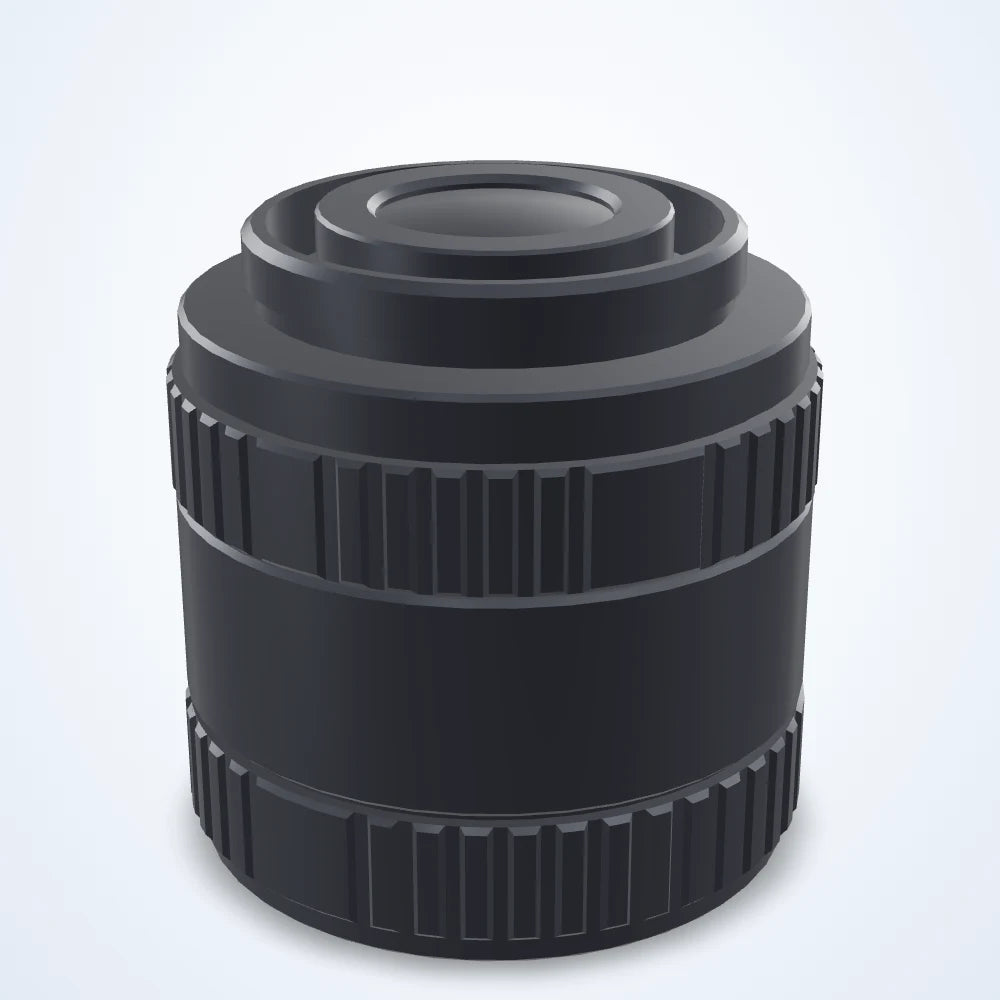

  • 8 mm lens, 2/3", C-mount (LS-FFL-0018) - view 2

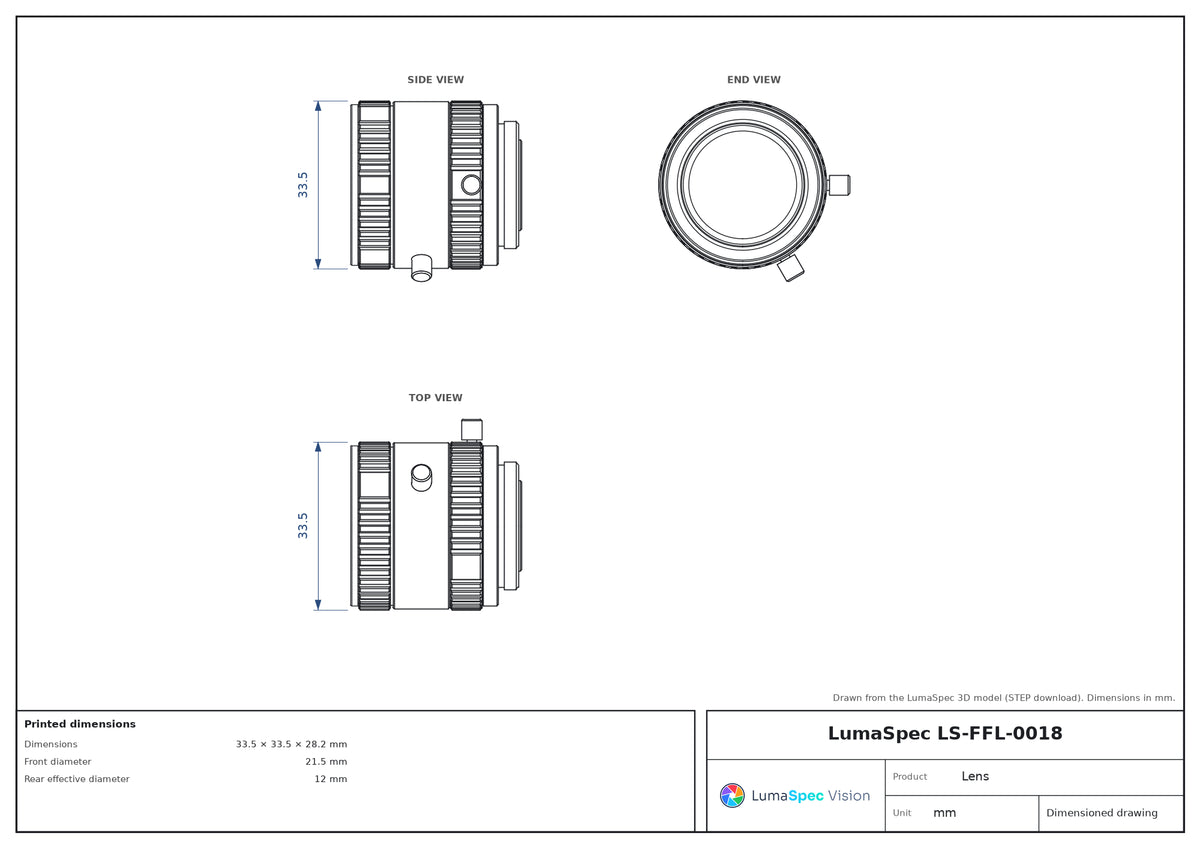

  • LS-FFL-0018 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

8 mm lens, 2/3", C-mount (LS-FFL-0018)

Model LS-FFL-0018

  • Focal length8 mm
  • MountC-mount
  • Sensor2/3"
  • Aperturef/1.4
  • Resolution1.5
$169.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Machine vision lens for industrial cameras. Minimum object distance 100 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0018
Minimum object distance100 mm
Aov @ 1/2″ h°×v°×d°42.5 × 32.4 × 51.9°
Aov @ 2/3″ h°×v°×d°56.3 × 43.7 × 67.1°
Lens typeFixed Focal Length
SpectrumVisible
Zoom rangeFixed

Optics

Focal length8 mm
Aperture (max)f/1.4
Back focal length13.1 mm
Filter threadM30.5-0.5
Focus controlManual
Focus range0.1 m - ∞
Image circle11 mm
Image size dimensions8.8 mm x 6.6 mm
Iris controlManual

Sensor and imaging

Sensor format2/3"
Resolution (MP)1.5

Environment and compliance

Operating temperature range-10 to +50 °C

Mechanical

MountC-mount
Dimensions33.5 × 33.5 × 28.2 mm
Front diameter21.5 mm
Rear effective diameter12 mm
Weight62.6
