70 x 40 mm Coaxial light (LS-CXL-0133)
Model LS-CXL-0133-R
- ColourRed, Green, Blue, White
- Wavelength red620-630 nm
- Wavelength green520-530 nm
- Wavelength blue465-475 nm
Ships in 2-3 weeks
0.4 kg shipping weight
By placing an order you agree to our Terms of Service, Shipping Policy and Refund Policy. Ship and delivery dates are estimates and are not guaranteed.
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cxl-0133
A 70 x 40 mm emitting area makes LS-CXL-0133 one of the smaller emitting-area sizes in the series. It is 70 mm long, 78 mm wide and 47 mm high.
Coaxial light with high uniformity and clear imaging; efficient heat dissipation prolongs life, and a specially coated beam splitter reduces light loss. It highlights unevenness on the object surface and eliminates reflection.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CXL-0133-R |
|---|---|
| Optional accessories | Extension cable |
| Service life | Red: 60000 h continuous at 25 °C and 50% illumination until 50% decrement; white: 30000 h under the same conditions |
| L (mm) | 70 |
| W (mm) | 78 |
| H (mm) | 47 |
Interfaces and I/O
| Cable length | 500 mm |
|---|
Light
| Wavelength red | 620-630 nm |
|---|---|
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Luminous size (mm) | 70 x 40 |
Environment and compliance
| Storage temperature | -20 to 60 °C |
|---|---|
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S125 series (the selected controller should match the power of the light source) |
|---|---|
| Power R (W) | 5.4 |
| Power G/B/W (W) | 9 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
Mechanical
| Shipping weight | 0.40 kg |
|---|
Size
To scale, from the printed dimensionsFeatures of the LS-CXL-0133
- Needs a controller channel or supply of 9 W or more
- A smaller emitting area than the 61 x 60 mm version
Shared by the whole Coaxial light (LS-CXL-S19) series5 points
- Highly effective heat dissipation, prolonged life-span
- High uniformity, clear imaging
- Reduced light loss by the beam splitter with special coating
- Highlights the unevenness on the object surface, eliminates reflection
- On-axis light over a field: flat shiny surfaces look bright, scratches and marks dark
Applications
- Flat, shiny parts in a field up to about 70 x 40 mm (its 70 x 40 mm luminous size)
- Scratches on high-reflective surfaces, bubbles and other defects inspection
- Inspection of breakage on chip parts and silicon wafers
- LED surface defect inspection
- Mark point positioning
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Build a system with this partConfigure a systemAsk an engineer
Engineering data
Drive and fit the LS-CXL-0133
Mounting and installation

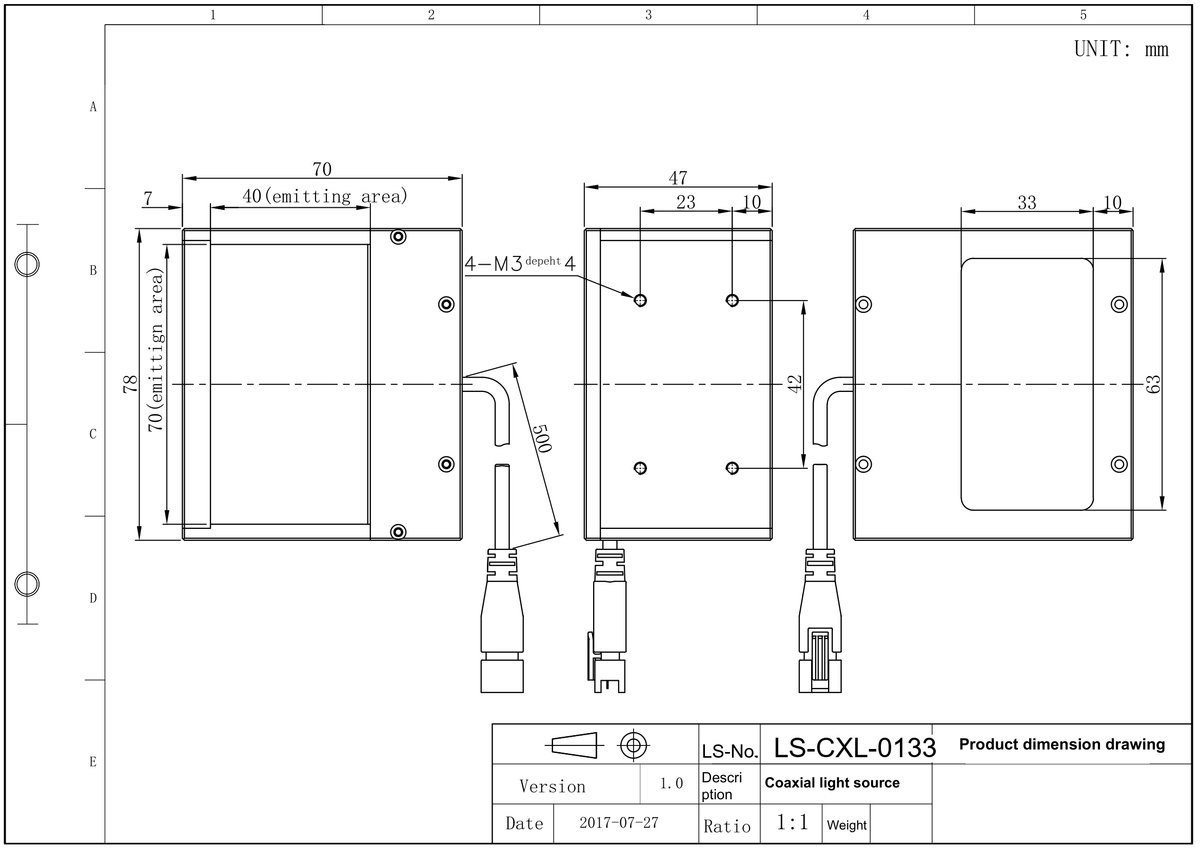

| Mounting | See the dimension drawing |
|---|---|
| Cable | 0.5 m |
Compatible parts
Fits with this part
Checked with the configurator's fit rules: supply voltage and drive type, and the light's power against the controller's power per channel wherever both are printed.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This part70 x 40 mm Coaxial light (LS-CXL-0133)LS-CXL-0133-R · Red
$309.00
-
Controllers for this light
Analog controller, 4 ch, 60 W (LS-CTL-0150)
$319.00
Set total $628.00
Added to your quote list.
Controllers for this light
Digital controller, 8 ch, 120 W, 116 x 164.8 mm
LS-CTL-0375
- Channels 8
- Output 24 V
$479.00
Ships in 2-3 weeks

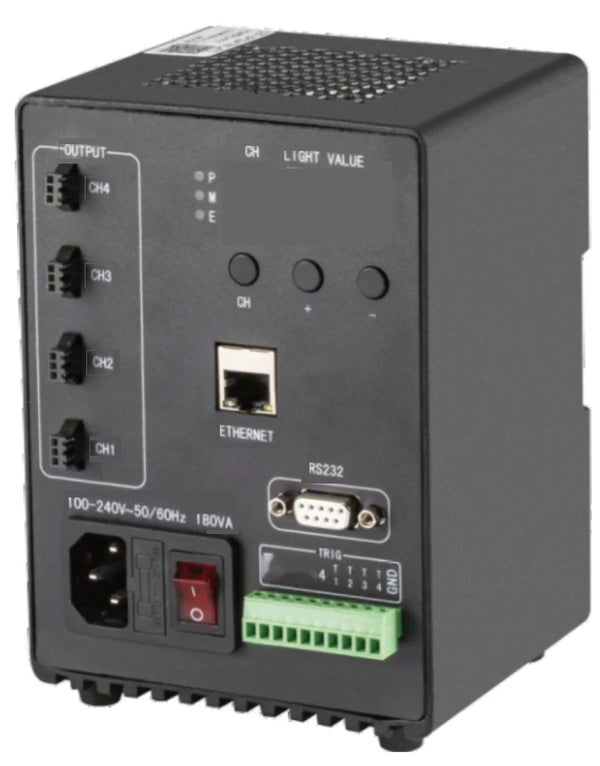

Strobe controller, 4 ch, 120 W, 116 x 164.8 mm
LS-CTL-0574
- Channels 4
- Output 48 V
$299.00
Ships in 2-3 weeks
Digital controller, 4 ch, 2.5 A output
LS-CTL-0372
- Channels 4
- Output 24 V DC
$359.00
Ships in 2-3 weeks
Application studies
Applications for this type of part
Real camera images from lighting and optics application tests, with the parts of each setup and why they were chosen.
Set up with the LS-CXL-0126, a model of this series
Electronics and devices
Watch display module in IR
Use the round outline for position and the flex tail for rotation.Light in sourceLS-CXL-0126 · 940 nmExplore the study
Set up with the LS-CXL-0014, the same type of part
Metal parts and machining
Engraved characters on a metal watch rim
Character visibility must be followed by a measured reading trial.Proposed light housing (spec)74 × 50 × 50 mmExplore the study
Set up with the LS-CXL-0182, the same type of part
Packaging, labels and print
Colour appearance on a bottle cap
Control the colour recipe before turning a lighter patch into a reject decision.Light in sourceLS-CXL-0182 · whiteExplore the study
Before you buy
Questions about the LS-CXL-0133
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which controller drives the LS-CXL-0133?
Fit-tested controllers: LS-CTL-0150 (maker-recommended), LS-CTL-0375 (maker-recommended), LS-CTL-0574 (maker-recommended) and LS-CTL-0372 (maker-recommended).
How much power does the LS-CXL-0133 draw?
It draws 5.4 W (red), 9 W (green, blue, white).
What area does the LS-CXL-0133 light?
The luminous size is 70 x 40 mm.
What temperature range is the LS-CXL-0133 rated for?
Its operating temperature range is 0 to 40 °C.
Learn
Guides for this part
Engineering guides picked for the LS-CXL-0133: how to choose it, set it up and get a better image.
Other models in the Coaxial light (LS-CXL-S19) series
See all 16 models in the seriesHow this model compares
- Luminous size 70 x 40 mm; next smaller area 55 x 40 mm (LS-CXL-0132), larger 61 x 60 mm (LS-CXL-0126); 15 different sizes in the series.
- Up to 9 W over a 70 x 40 mm luminous size works out to about 32 W per 100 cm²: only 5 of the 16 coaxial lights in the series are higher.
- Compared with LS-CXL-0125: power (red) 5.4 W here, 3.6 W there; power (green, blue, white) 9 W here, 6.3 W there.
