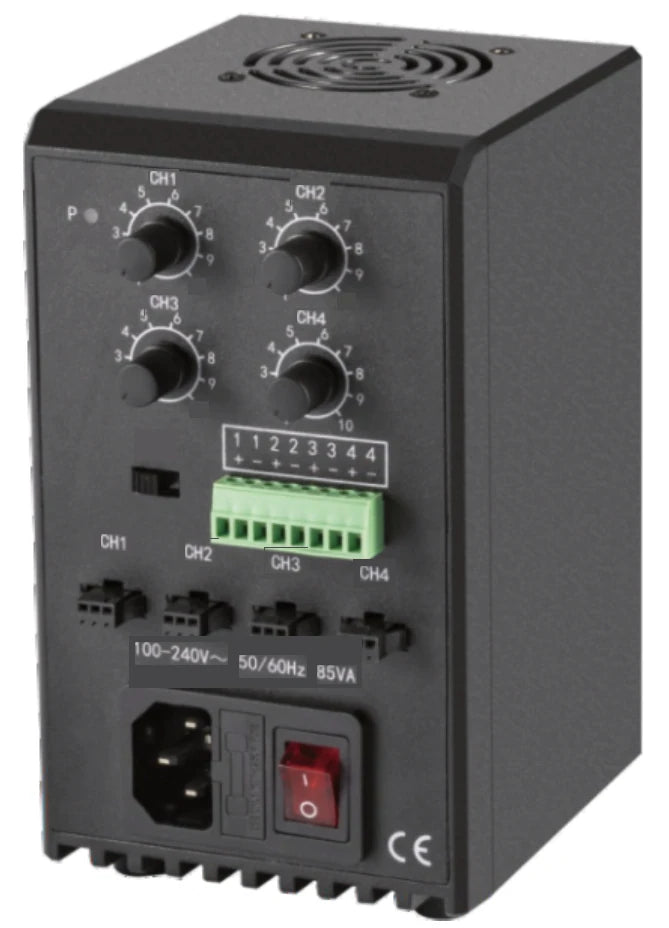

Analog controller, LS-CTL-S28 series, 4 ch, 60 W (LS-CTL-0150)
Model LS-CTL-0150
- Channels4
- Output24V
- InputAC100-240V 50/60Hz
- Total output60 W
- ControlAnalog panel knob
$319.00
Ships in 2-3 weeks
0.9 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Analog controller with manual stepless brightness control, constant-on/constant-off mode switch and optocoupler-isolated external trigger; screw or 35 mm DIN rail installation.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTL-0150 |
|---|---|
| Drive method | Constant voltage |
| Light mode | Variable voltage control, panel knob |
| Cooling method | Forced cooling |
| Cooling method (manual V1.1) | Natural cooling |
| Constant-on / constant-off switch | H = constant-on mode, L = constant-off mode |
| Knob direction (manual V1.1) | Counter-clockwise increases brightness, clockwise decreases (the 2022 catalog states the opposite) |
| Control | Analog panel knob |
Environment and compliance
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
|---|---|
| Storage temp/humidity | -20~60 °C, 20~85 %RH (non-condensing) |
Electrical
| Input voltage | AC100-240V 50/60Hz |
|---|---|
| Max output voltage | 24V |
| Channel number | 4 |
| Max output current | 2.5A (single channel max current 2.5A) |
| Total power | 60W |
| Output port | SMP-03V-BC (1: input+, 2: NC, 3: output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <300us (load dependent) |
| Trigger port | 8-pin, 1+/1- to 4+/4- per channel; negative/positive trigger switch |
| Rated input (panel label) | 100-240V~ 50/60Hz 85VA |
| Trigger delay | <1ms (load dependent) |
| Trigger delay (manual V1.1) | <3ms (load dependent); light-on delay T3 <1ms, light-off delay T4 generally <1ms |
| Trigger mode (manual V1.1) | Level trigger, follow-positive or follow-negative; DC 0~2V = low level, DC 5~24V = high level; bidirectional optocoupler isolation |
| Channels | 4 |
| Total output (W) | 60 |
Mechanical

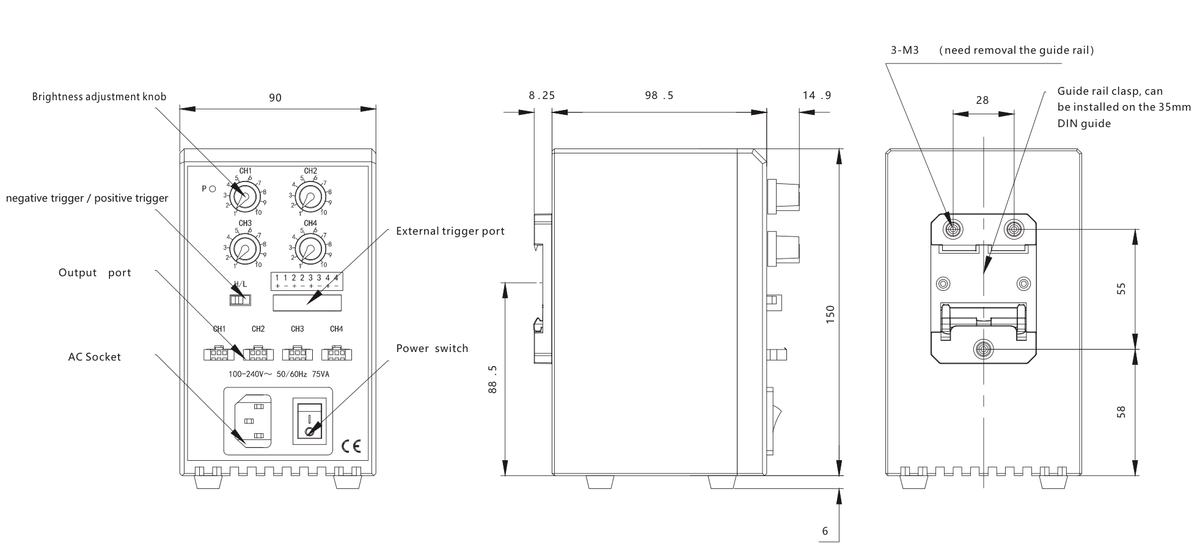

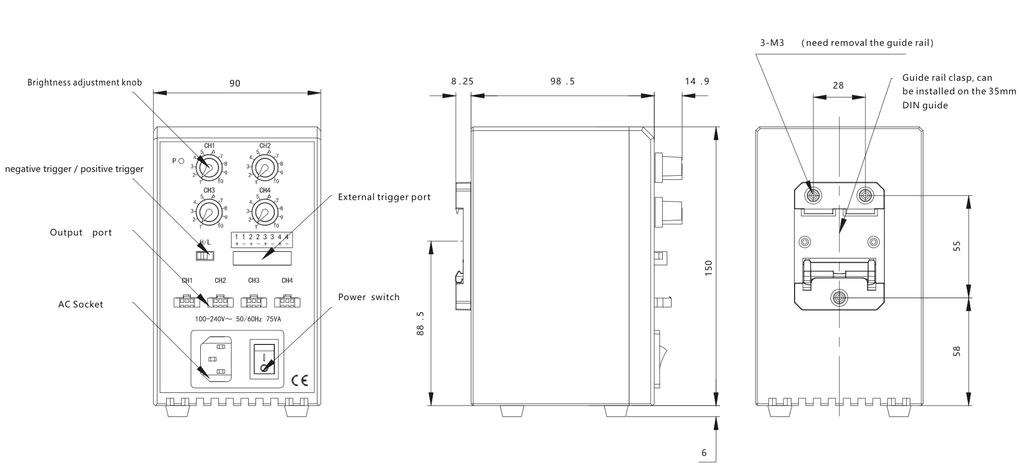

| Dimensions (mm) | 90 W x 150 H x 98.5 D (body; 8.25 rail clasp, 14.9 front parts) |
|---|---|
| Mounting | 35 mm DIN rail clasp or 3-M3 (remove the rail clasp) |
| Weight | 650g or less |
