Watch-shell engraving: light the marked rim for readable characters
A narrow-angle coaxial light makes the engraved lettering on a watch-shell rim stand out. The displayed crop retains generic upper-rim characters and excludes unrelated location engraving from the source image.
Character visibility must be followed by a measured reading trial.
Real camera capture
- Proposed light housing (spec)74 × 50 × 50 mm
- EvidenceReal application-lab captures
- Camera (proposed)2448 × 2048 monochrome
- Field (derived proposal)33.78 × 28.26 mm derived from printed 0.25x magnification
Explore it in 3D
Camera and available lens CAD are published models. Light envelopes and the station base/height use printed dimensions. Part shapes, brackets, holders, shielding and spacing are illustrative; they are not reconstructions of a source part or a complete mechanically validated assembly. Light paths explain the proposed arrangement and do not simulate optical performance. The proposed field is derived from the printed camera pixel dimensions and the stated lens magnification/working-distance pair, not measured from the source capture.
Lighting application-lab image sheet
What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
An engraved rim combines reflective flat areas, curved edges and shallow marks. A useful reading image must preserve the characters without saturating the surrounding metal.
How it was solved
The source identifies white LS-CXL-0014. The proposed macro lens and camera are not identified in the original trial.
The camera crop is an original upper portion of the supplied result; no letters have been removed, redrawn or reconstructed inside that crop.
Why it works
- 1
A controlled coaxial field changes the relative brightness of the engraving and reflective background.
- 2
Readable-looking letters do not establish an OCR decode rate, character verification accuracy or engraving depth.
Lighting application-lab image sheet
Evidence you can inspect

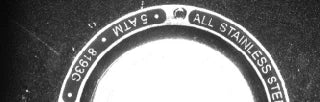

Upper-rim engraved characters are distinguishable from their dark surrounding region.
The source reports character legibility under3CON40-N-W; it supplies no OCR score, font-size limit or engraving-depth result.
An application-lab lighting demonstration, not a customer deployment or a qualified production inspection. Proposed camera, lens, fixture and scene spacing require a fresh trial. Source observations do not establish a defect-size limit, accuracy guarantee or production false-call rate.
From image contrast to a production decision
What to validate on your part
- 01
Define the character task
Separate reading variable data from checking a known fixed inscription.
- 02
Vary the finish and pose
Include acceptable brushing, polish, engraving contrast and rim tilt.
- 03
Validate reading
Measure correct reads, substitutions and no-reads on a representative marked-part set at the final sampling.
From the demo to your test bench
Parts in this setup
LightTested
LS-CXL-0014
Narrow angle coaxial light, 74 x 50 x 50 mm (LS-CXL-0014)
Exact source white narrow-angle coaxial light;74 ×50 ×50 mm housing and40 ×33 mm printed viewport.
$329.00
In proposed setup
CameraOur pick
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE area scan camera, IMX264, Gen 2 basic version, Mono, Without PoE
Proposed 5 MP monochrome global-shutter camera, 2448 × 2048 pixels at 3.45 µm, C-mount. The source camera is unidentified. This NPOE model requires separate power and does not support PoE.Not available in the United States. Available for delivery to other countries.
$819.00
In proposed setup
LensOur pick
LS-FFL-1456
35mm, F2.8, 1.1", C-mount, Macro lens (59 mm (-0.7X) to 150 mm (-0.25X)) (LS-FFL-1456)
35 mm C-mount macro lens. Its printed 0.25x / 150 mm working-distance pair gives a derived 33.78 × 28.26 mm field on the proposed camera. Confirm focus, coverage and the actual part plane.
$339.00
In proposed setup
Camera test stationOur pick
LS-MNT-0097
Camera stand with XZ adjustment and glass tray, height 600 mm (LS-MNT-0097)
600 mm column, 600 × 450 mm breadboard, glass tray and two lighting holders. Proposed bench fixture; actual load, travel, clamps, mounting fasteners and light clearance must be confirmed.
$629.00
In proposed setup
"Tested" identifies the part named in the source. "Our pick" is a proposed alternative or supporting part. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Source camera | Not identified in the source sheet |
|---|---|
| Camera and lens | Proposed catalog components |
| Proposed field | 33.78 × 28.26 mm derived from printed 0.25x magnification |
| Lens-to-part in proposed scene | 150 mm; printed working-distance pair |
| Mounting (proposed) | LS-MNT-0097 · catalog test station with two lighting holders |
Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Light envelopes and the station base/height use printed dimensions. Part shapes, brackets, holders, shielding and spacing are illustrative; they are not reconstructions of a source part or a complete mechanically validated assembly. Light paths explain the proposed arrangement and do not simulate optical performance. The proposed field is derived from the printed camera pixel dimensions and the stated lens magnification/working-distance pair, not measured from the source capture.
