Clutch-plate springs: expose the window patterns with transmitted light
The source backlit capture shows four spring-window regions within a dark circular clutch plate. Their repeated patterns provide a practical starting point for an assembly-appearance trial, without demonstrating spring force or clutch function.
Use the spring-window pattern for appearance and prove mechanical function separately.
Real camera capture
- Light in sourceLS-HFS150100 · white
- EvidenceReal application-lab image
- Imaging kitCamera, lens and fixture proposed
- AcceptanceValidate on representative parts
Explore it in 3D
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. Representative part geometry is illustrative, not reconstructed inspection evidence. The specimen and lighting angle are representative, not dimensions or settings recovered from the source capture.
Lighting application-lab catalog capture
What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
A repeated spring pattern can vary with part orientation and fixture position.
The trial must distinguish a changed assembly from accepted differences in spring appearance and window edges.
How it was solved
The source identifies the white backlight for inspecting the springs of a clutch plate. Transmission separates the plate and spring-window patterns from the bright background.
Test known assembly states using the proposed camera and lens. The illustrated plate is a representative bench specimen; the source does not give its diameter.
Why it works
- 1
A transmitted field makes openings and interrupted light paths available for geometric pattern checks.
- 2
Visible spring appearance cannot establish preload, rate, fatigue condition or clutch performance.
Lighting application-lab catalog capture
Evidence you can inspect

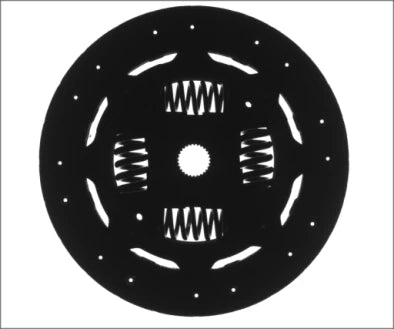

Four repeated spring-window patterns, other openings and a central hole are visible in the dark plate silhouette.
The source captions inspection of the springs of a clutch plate under a white LS-HFS150100.
No required spring count, assembly decision, source dimensions, spring-force data or functional result is supplied.
From image contrast to a production decision
What to validate on your part
- 01
Label the assembly states
Use verified accepted, missing, displaced and incorrect-spring samples where applicable to the actual design.
- 02
Test placement and orientation
Cover allowed loading variation and ensure every required window remains visible.
- 03
Keep functional testing separate
Validate appearance decisions independently of spring-force or clutch-function acceptance.
From the demo to your test bench
Parts in this setup
LightTested
LS-HFS150100
150 x 100 mm Back light source (LS-HFS150100)
White LS-HFS150100 named in the clutch-plate spring example. Printed 150 × 100 mm emitting area and 180 × 114 × 19 mm housing.
$129.00
In proposed setup
CameraOur pick
MV-CS050-10GM(NPOE)
Hikrobot MV-CS050-10GM(NPOE) 5 MP GigE area scan camera, IMX264, Gen 2 basic version, Mono, Without PoE
5 MP monochrome global-shutter camera proposed for a contrast trial. Confirm field, sampling, exposure and algorithm on the actual application.Not available in the United States. Available for delivery to other countries.
$819.00
In proposed setup
LensOur pick
LS-KF1628M-ML
16mm, F2.8, 1.1", C-mount, Macro lens (52 mm (-0.25X) to 546 mm (-0.03X)) (LS-KF1628M-ML)
Proposed 16 mm C-mount macro lens at its printed 0.1x magnification / 152 mm working-distance pair. The proposed 2448 × 2048 sensor with 3.45 µm pixels gives a derived 84.456 × 70.656 mm field; confirm focus, coverage and residual distortion on the real sample.
$319.00
In proposed setup
Camera test stationOur pick
LS-BT-XZ-G-6-6045
Camera stand with XZ adjustment and glass tray, height 600 mm (LS-BT-XZ-G-6-6045)
600 mm column, 600 × 450 mm breadboard, XZ adjustment, glass tray and two lighting holders as listed. Proposed bench fixture; confirm loads, travel and camera/lens clamps.
$359.00
In proposed setup
"Tested" identifies the part named in the source. "Our pick" is a proposed alternative or supporting part. Confirm colour, optics, controllers, power supplies, cables and mounting before ordering.
The set-up
| Tested light | LS-HFS150100, white |
|---|---|
| Source camera / lens | Not specified in the source image caption; proposed parts below |
| Proposed lens point | 0.1x at 152 mm, printed lens pair |
| Derived proposed field | 84.456 × 70.656 mm = sensor dimensions / 0.1x; not a source test field |
| Emitting area (printed) | 150 × 100 mm |
| Panel housing (printed) | 180 × 114 × 19 mm |
| Source plate size | Not supplied; representative plate geometry in 3D |
| Mounting (proposed) | LS-BT-XZ-G-6-6045; 600 mm column, 600 × 450 mm base, glass tray and two included lighting holders |
Mount the optics with intent
The station is an optical test bench, with its two lighting holders included in the catalog listing. The 3D column and base follow the published height and footprint. Carriages, clamps and part supports are schematic: confirm camera screw pattern, lens support, light fasteners, permissible load and actual travel before ordering.
Complete the electrical system
Select a controller against the exact light voltage, drive mode and power, then confirm camera data/power/I/O cables and a suitable PC. These are not silently added to the proposed optical kit.
Build this system
Start from this setup, adapt it to your part.
The configurator opens with this study's camera, lens, light and station picked. Swap any part, check fit and price, then buy or ask for a quote.
Camera and available lens CAD are published models. Lens and light envelopes use printed dimensions. The linked station uses its published base size and column height; carriage, brackets, fittings, parts and spacing are illustrative. Confirm load, travel, fasteners and clearances before ordering. Light paths explain the arrangement and do not simulate optical performance. Representative part geometry is illustrative, not reconstructed inspection evidence. The specimen and lighting angle are representative, not dimensions or settings recovered from the source capture.
