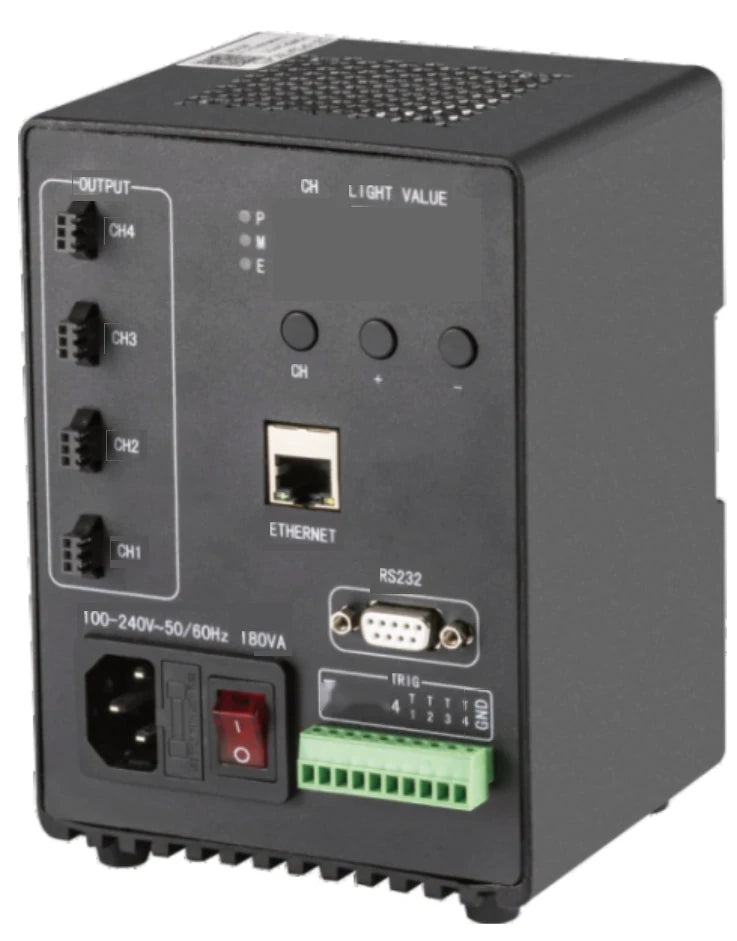

Strobe controller, LS-CTL-S125 series, 4 ch, 120 W (LS-CTL-0574)
  • Strobe controller, LS-CTL-S125 series, 4 ch, 120 W (LS-CTL-0574)

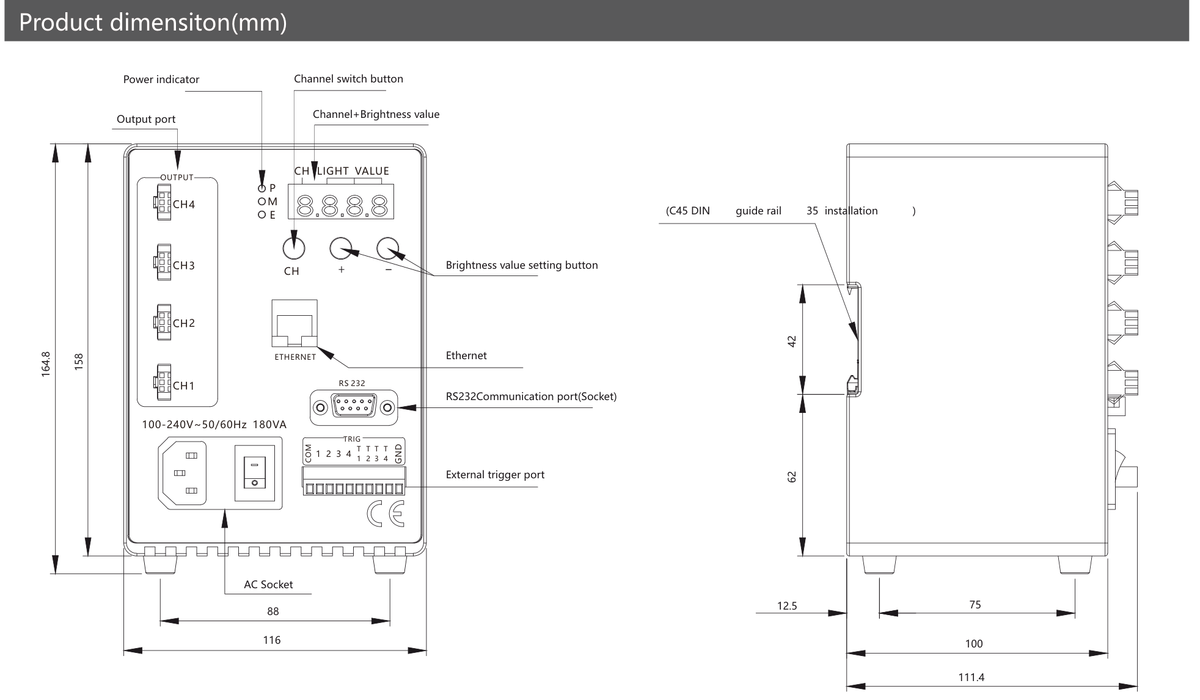

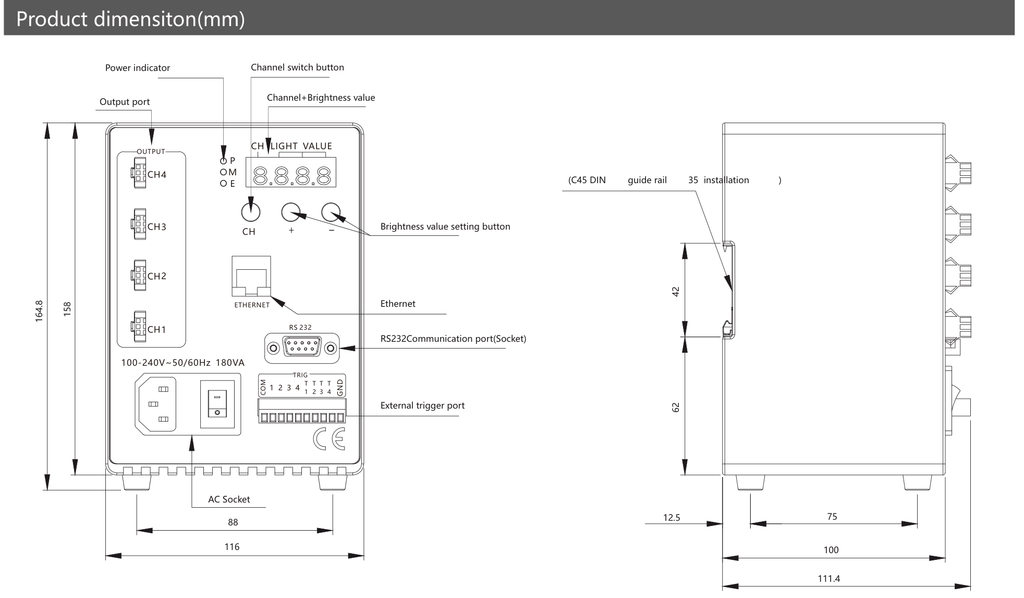

  • LS-CTL-0574 dimensions (mm)

Light controllers

Strobe controller, LS-CTL-S125 series, 4 ch, 120 W (LS-CTL-0574)

Model LS-CTL-0574

  • Channels4
  • Output48V
  • InputAC100-240V 50/60Hz
  • Total output120 W
  • ControlPanel knob / RS232 / Ethernet
$299.00

Ships in 2-3 weeks

1.25 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Strobe controller, LS-CTL-S125 series, 4 ch, 120 W (LS-CTL-0574)LS-CTL-0574

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Strobe controller with output pulse width set from 1 us to 990 us; instant brightness can be raised to above 400% while extending light life. It outputs camera trigger signals and works with external or internal fixed-frequency triggering.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTL-0574
Drive methodConstant voltage
Cooling methodForced cooling
ControlPanel knob / RS232 / Ethernet

Environment and compliance

Operating temp/humidity0~40 °C, 20~85 %RH (non-condensing)
Storage temp/humidity-20~60 °C, 20~85 %RH (non-condensing)

Electrical

Input voltageAC100-240V 50/60Hz
Channel4
Output voltage48V
Max output currentPeak value 10A (single channel)
Total power120W
Output portSMP-03V-BC (1: output+, 2: NC, 3: output-)
External trigger voltageDC5V~24V (current about 5.6mA)
Trigger delay<2us
Trigger portCOM, 1-4 trigger inputs, T1-T4 camera trigger outputs, GND; NPN or PNP control
Camera signal voltage12V
Strobe pulse width0-999μs
External trigger voltageDC12V~24V (current about 5.6mA)
Trigger delay<15μs
Channels4
Total output (W)120

Mechanical

Pulse width adjustment modePanel knob / RS232 / Ethernet
Pulse width1us~990us
Dimensions (mm)116 W x 164.8 H x 111.4 D (100 body depth)
Mounting35 mm DIN rail (C45)
Weight950g or less
Dimensions116 x 114.4 x 164.8 mm
