3.2 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0020)
  • 3.2 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0020)

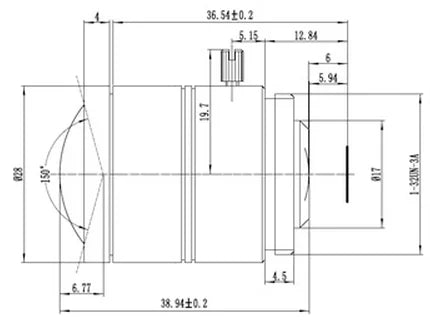

  • LS-CTV-0020 dimensions (mm)

CCTV lenses

3.2 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0020)

Model LS-CTV-0020

  • Focal length3.2 mm
  • MountCS-mount
  • Sensor1/1.7"
  • ApertureF2.0 Fixed iris
  • Resolution12 Megapixel
$59.00

Ships in 2-3 weeks

0.17 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

3.2 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0020)LS-CTV-0020

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

3.2 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens. 3.2 mm F2.0 fixed-focal (mono-focal) 12 megapixel CCTV lens with a wide angle of view and day/night IR correction, CS mount; the 1/1.7" format covers 1/1.7", 1/1.8", 1/2" and 1/2.5" cameras. At a glance: focal length 3.2 mm; format 1/1.7"; resolution 12 Megapixel; aperture F2.0 Fixed iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0020
IR correctionIR corrected (day/night)
Format1/1.7"
Angle of view (1/1.7", DxHxV)131 x 99 x 160 deg
Angle of view (1/1.8", DxHxV)129 x 88 x 154 deg
Angle of view (1/2.3", DxHxV)113 x 83 x 136 deg

Optics

Focal length3.2 mm
ApertureF2.0 Fixed iris
M.O.D.0.3 m
Distortion-64%

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 28 x 32.1 mm
MountCS
Weight53 g
Shipping weight (estimated)0.17 kg
