8 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0010)
  • 8 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0010)

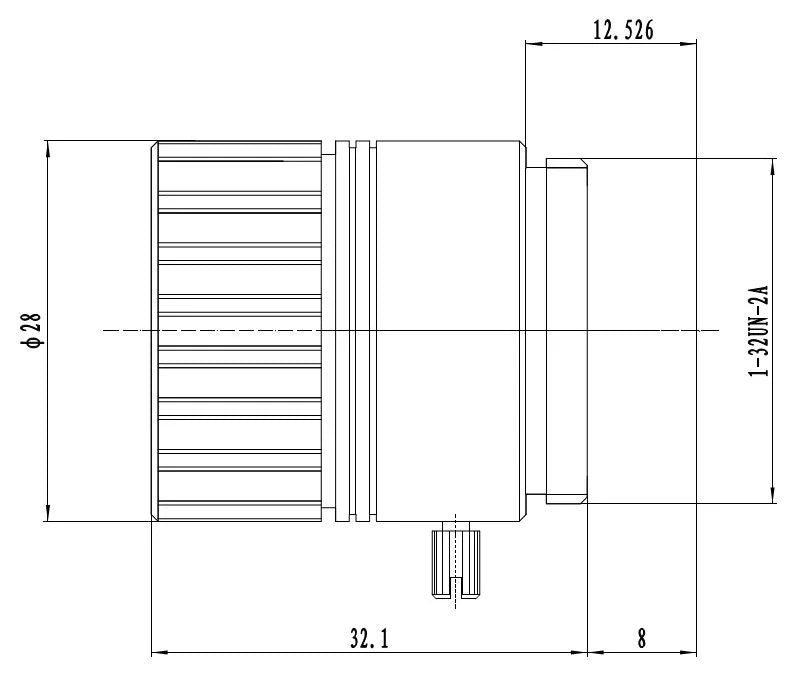

  • LS-CTV-0010 dimensions (mm)

CCTV lenses

8 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0010)

Model LS-CTV-0010

  • Focal length8 mm
  • MountCS-mount
  • Sensor1/1.7"
  • ApertureF1.8 Fixed iris
  • Resolution12 Megapixel
$59.00

Ships in 2-3 weeks

0.14 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

8 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens (LS-CTV-0010)LS-CTV-0010

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

8 mm, 1/1.7", 12 MP, CS-mount Fixed CCTV Lens. 8 mm F1.8 mono-focal 12 megapixel CCTV lens with day/night IR correction, CS mount; the 1/1.7" format covers 1/1.7", 1/1.8", 1/2" and 1/2.5" cameras. At a glance: focal length 8 mm; format 1/1.7"; resolution 12 Megapixel; aperture F1.8 Fixed iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0010
IR correctionIR corrected (day/night)
Format1/1.7"
Angle of view (1/1.7", DxHxV)55.6 x 40.3 deg
Angle of view (1/2.5", DxHxV)44 x 32.6 deg

Optics

Focal length8 mm
ApertureF1.8 Fixed iris
M.O.D.0.3 m
Distortion-15.68%

Sensor and imaging

Resolution12 Megapixel

Mechanical

Sizedia. 28 x 32.1 mm
MountCS
Weight30 g
Shipping weight (estimated)0.14 kg
