2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens, F1.2 Fixed Iris (LS-CTV-0017)
  • 2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens, F1.2 Fixed Iris (LS-CTV-0017)

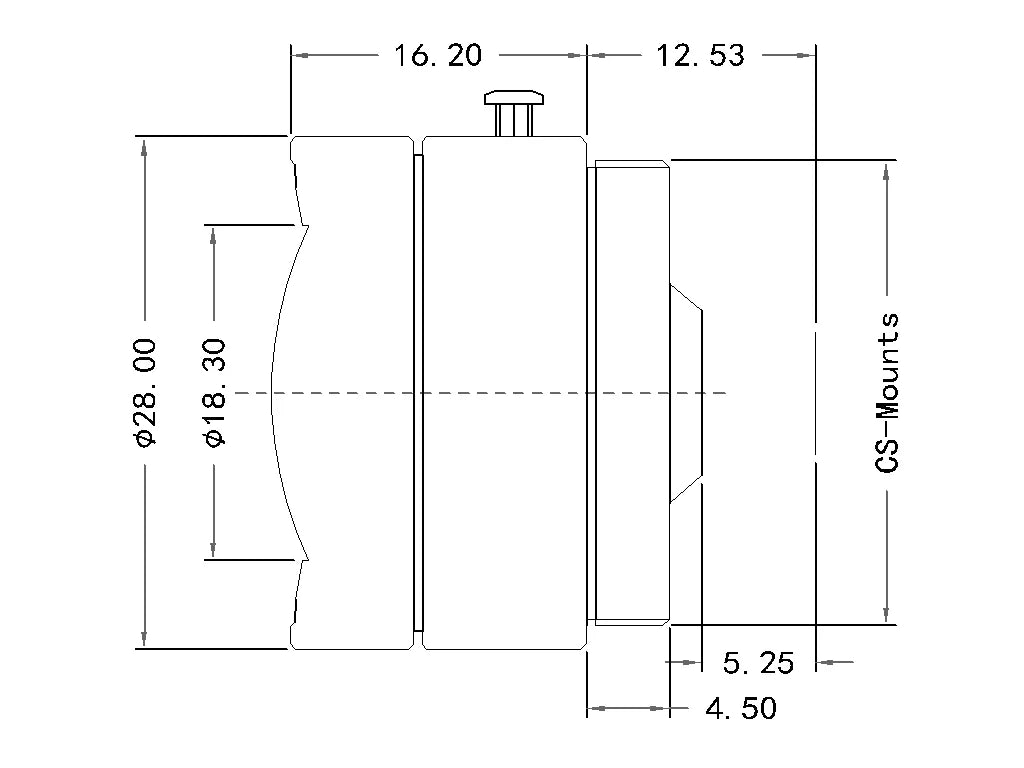

  • LS-CTV-0017 dimensions (mm)

CCTV lenses

2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens, F1.2 Fixed Iris (LS-CTV-0017)

Model LS-CTV-0017

  • Focal length2.8 mm
  • MountCS-mount
  • Sensor1/2.7"
  • ApertureF1.2 Fixed Iris
  • Resolution3.0 Megapixel
$59.00

Ships in 2-3 weeks

0.14 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens, F1.2 Fixed Iris (LS-CTV-0017)LS-CTV-0017

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

2.8 mm, 1/2.7", 3 MP, CS-mount Fixed CCTV Lens. 3.0 megapixel 2.8 mm fixed lens for 1/2.7" cameras, covering 3 MP, 1080P and 720P. IR-corrected for 24 h day and night; very small size fits most box cameras. At a glance: focal length 2.8 mm; format 1/2.7"; resolution 3.0 Megapixel; aperture F1.2 Fixed Iris; mount CS.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CTV-0017
IR correctionIR
Format1/2.7"
Angle of view (1/2.7", DxHxV)141 x 121 x 65.3 deg
Angle of view (1/2.7")141 x 121 x 65 deg
T.T.L.28.73 mm

Optics

Focal length2.8 mm
ApertureF1.2 Fixed Iris
M.O.D.0.5 m

Sensor and imaging

Resolution3.0 Megapixel

Mechanical

Sizedia. 28 x 16.2 mm
MountCS
Weight29 g
Shipping weight (estimated)0.14 kg
