4 mm, 1/2.7", 5 MP, CS-mount Fixed CCTV Lens (LS-CTV-0005)
Model LS-CTV-0005
- Focal length4.0 mm
- MountCS-mount
- Sensor1/2.7"
- ApertureF2.0 Fixed iris
- Resolution5.0 Megapixel
$59.00
Ships in 2-3 weeks
0.16 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
4 mm, 1/2.7", 5 MP, CS-mount Fixed CCTV Lens. 4 mm 1/2.7" 5.0 megapixel fixed-focal CS-mount CCTV lens, F2.0, IR corrected for 760-850 nm, for bank, school and room surveillance. At a glance: focal length 4.0 mm; format 1/2.7"; resolution 5.0 Megapixel; aperture F2.0 Fixed iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0005 |
|---|---|
| Format | 1/2.7" |
| Angle of view (1/2.7", DxHxV) | 108 x 83 x 59 deg |
| Angle of view (1/3", DxHxV) | 94 x 72 x 53 deg |
| Angle of view (1/4", DxHxV) | 67 x 53 x 35 deg |
| IR correction | Yes (day & night) |
Optics
| Focal length | 4.0 mm |
|---|---|
| Aperture | F2.0 Fixed iris |
| M.O.D. | 0.3m |
| Distortion | Max - 41% |
| Back focal length (optical) | 7.2mm |
| Mechanical back focal length | 6.5mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

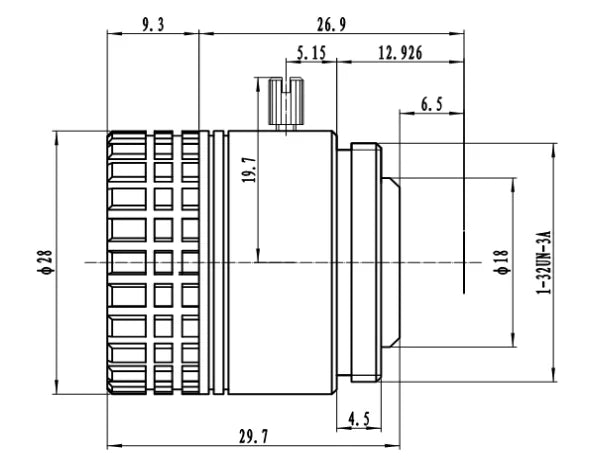

Mechanical
| Size | dia. 28 x 29.7mm |
|---|---|
| Optical total length | 36.2mm |
| Mount | CS |
| Weight | 40g |
| Shipping weight (estimated) | 0.16 kg |

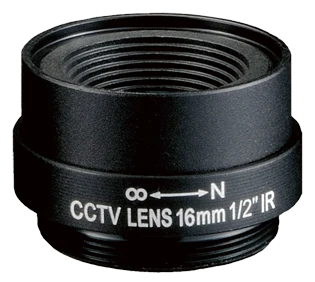

Photo shows a representative model of this series; see the specifications for this model.
