6 mm, 1/2.5", 5 MP, CS-mount Fixed CCTV Lens (LS-CTV-0009)
Model LS-CTV-0009
- Focal length6.0 mm
- MountCS-mount
- Sensor1/2.5"
- ApertureF2.0 Fixed iris
- Resolution5.0 Megapixel
$59.00
Ships in 2-3 weeks
0.16 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
6 mm, 1/2.5", 5 MP, CS-mount Fixed CCTV Lens. 6 mm 1/2.5" 5.0 megapixel fixed-focal CS-mount CCTV lens, F2.0, IR corrected for 760-850 nm, for bank, school and room surveillance. At a glance: focal length 6.0 mm; format 1/2.5"; resolution 5.0 Megapixel; aperture F2.0 Fixed iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0009 |
|---|---|
| Format | 1/2.5" |
| Angle of view (1/2.5", DxHxV) | 80 x 61 x 43.5 deg |
| Angle of view (1/2.7", DxHxV) | 72.4 x 56 x 40 deg |
| Angle of view (1/3", DxHxV) | 63 x 49 x 36 deg |
| IR correction | Yes (day & night) |
Optics
| Focal length | 6.0 mm |
|---|---|
| Aperture | F2.0 Fixed iris |
| M.O.D. | 0.3m |
| Distortion | Max - 27% |
| Back focal length (optical) | 8.8mm |
| Mechanical back focal length | 7.9mm |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|

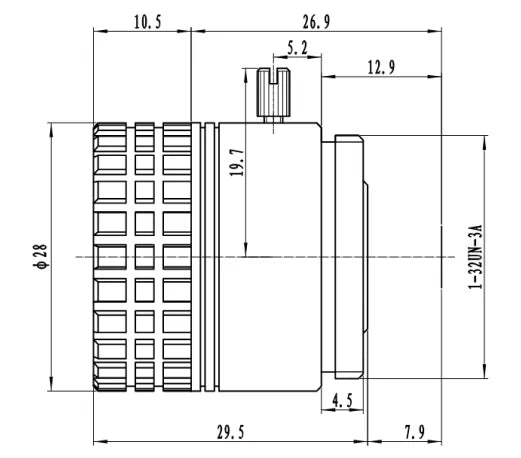

Mechanical
| Size | dia. 28 x 29.5mm |
|---|---|
| Optical total length | 37.4mm |
| Mount | CS |
| Weight | 40g |
| Shipping weight (estimated) | 0.16 kg |
