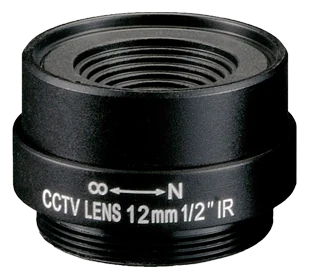

12 mm, 1/1.8", 5 MP, CS-mount Fixed CCTV Lens (LS-CTV-0003)
Model LS-CTV-0003
- Focal length12 mm
- MountCS-mount
- Sensor1/1.8"
- ApertureF1.8 Fixed iris
- Resolution5.0 Megapixel
$59.00
Ships in 2-3 weeks
0.14 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
12 mm, 1/1.8", 5 MP, CS-mount Fixed CCTV Lens. 12 mm F1.8 mono-focal 5 megapixel CCTV lens with day/night IR correction and low distortion for special industrial cases, CS mount. At a glance: focal length 12 mm; format 1/1.8"; resolution 5.0 Megapixel; aperture F1.8 Fixed iris; mount CS.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CTV-0003 |
|---|---|
| IR correction | IR corrected (day/night) |
| Format | 1/1.8" |
| Angle of view (1/1.8", DxHxV) | 38.6 x 31 x 23 deg |
Optics
| Focal length | 12 mm |
|---|---|
| Aperture | F1.8 Fixed iris |
| M.O.D. | 0.2 m |
Sensor and imaging
| Resolution | 5.0 Megapixel |
|---|
Mechanical

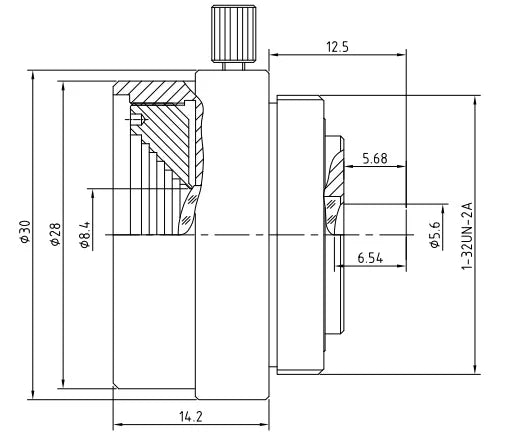

| Size | dia. 30 x 14.2 |
|---|---|
| Mount | CS |
| Weight | 28 g |
| Shipping weight (estimated) | 0.14 kg |
