Area scan cameras
Double USB3.0 area scan camera, 17 MP, Mono (LS-CMR-0370)
Model LS-CMR-0370
- Resolution4112*4112
- InterfaceUSB3.0*2
- Speed47FPS
- Lens mountC-mount
- Pixel size3.5 μm
$1,769.00
Ships in 2-3 weeks
0.59 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cmr-0370
With a 4112 x 4112 (17 MP) sensor, LS-CMR-0370 has a lower resolution than the 5120 x 5120 (26 MP) version, for less data per frame.
LS-CMR-0370: resolution 4112 x 4112, sensor 4/3", frame rate 47FPS, pixel size 3.5 µm.
This series of Mono industrial cameras with dual USB3.0 interfaces boasts advantages such as fast data transmission and no need for additional acquisition cards
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | LS-CMR-0370 |
|---|
Sensor and imaging
| Resolution | 4112*4112 |
|---|---|
| Pixel size | 3.5 μm |
| Shutter | Global |
| Frame rate | 47FPS |
| Sensor | 4/3" |
Interfaces and I/O
| Data interface | USB3.0*2 |
|---|
Light
| Mono / colour | Mono |
|---|
Mechanical
| Target size | 4/3" |
|---|---|
| Lens mount | C |
| Shipping weight | 0.59 kg |
Engineering data
Field of view and resolution with the LS-CMR-0370
Sensor area14.39 × 14.39 mm4/3" optical format
Lens image circle needed≥ Ø 20.4 mmC-mount
Pixel pitch3.5 µm4112 x 4112 px
Image data at max frame rate795 MB/sCalculated: 47 fps × 4112 × 4112 px at 8 bit
With a 16 mm lens at 500 mm450 × 450 mm0.109 mm per pixel
| Lens | At 300 mm | At 500 mm | At 1000 mm |
|---|---|---|---|
| 8 mm | 540 × 540 mm0.131 mm per pixel | 899 × 899 mm0.219 mm per pixel | 1799 × 1799 mm0.437 mm per pixel |
| 12 mm | 360 × 360 mm0.087 mm per pixel | 600 × 600 mm0.146 mm per pixel | 1199 × 1199 mm0.292 mm per pixel |
| 16 mm | 270 × 270 mm0.066 mm per pixel | 450 × 450 mm0.109 mm per pixel | 899 × 899 mm0.219 mm per pixel |
| 25 mm | 173 × 173 mm0.042 mm per pixel | 288 × 288 mm0.07 mm per pixel | 576 × 576 mm0.14 mm per pixel |
| 35 mm | 123 × 123 mm0.03 mm per pixel | 206 × 206 mm0.05 mm per pixel | 411 × 411 mm0.1 mm per pixel |
| 50 mm | 86.3 × 86.3 mm0.021 mm per pixel | 144 × 144 mm0.035 mm per pixel | 288 × 288 mm0.07 mm per pixel |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This partDouble USB3.0 area scan camera, 17 MP, Mono (LS-CMR-0370)
$1,769.00
-
Lenses for this camera
50 mm, 4/3", 20 MP, C-mount machine vision lens (LS-FFL-0712)
$739.00
Set total $2,508.00
Added to your quote list.
Lenses for this C-mount camera
This camera's 20.4 mm sensor diagonal uses 93 % of the lens's 22 mm image circle
Fixed lens for FA, 4/3" 20 MP, 12 mm, C-mount
LS-FFL-0713
- Focal length 12 mm
- Mount C-mount
$669.00
Ships in 2-3 weeks
This camera's 20.4 mm sensor diagonal uses 93 % of the lens's 22 mm image circle
35 mm, 4/3", C-mount machine vision lens
LS-FFL-0381
- Focal length 35 mm
- Mount C-mount
$419.00
Ships in 2-3 weeks
This camera's 20.4 mm sensor diagonal uses 93 % of the lens's 22 mm image circle
25 mm, 4/3", 20 MP, C-mount machine vision lens
LS-FFL-0708
- Focal length 25 mm
- Mount C-mount
$689.00
Ships in 2-3 weeks
This camera's 20.4 mm sensor diagonal uses 93 % of the lens's 22 mm image circle
Fixed lens for FA, 4/3" 20 MP, 16 mm, C-mount
LS-FFL-0714
- Focal length 16 mm
- Mount C-mount
$679.00
Ships in 2-3 weeks
This camera's 20.4 mm sensor diagonal uses 93 % of the lens's 22 mm image circle

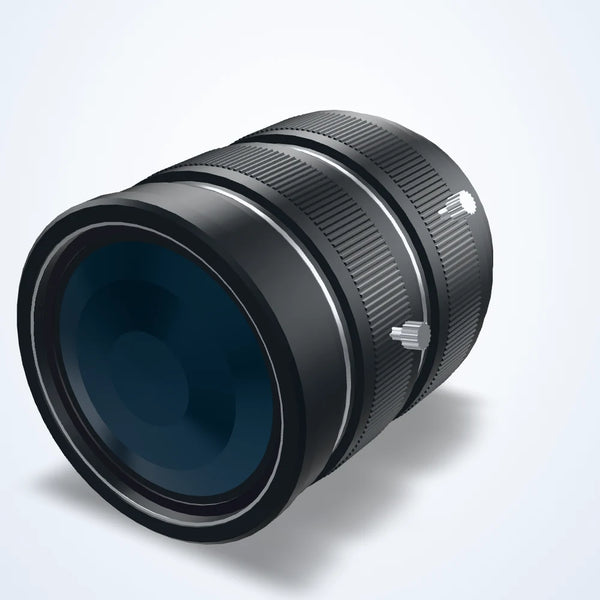

8.5 mm fixed focal length lens, 4/3", 12 MP, F2.8, C-mount
LS-FFL-1340
- Focal length 8.5 mm
- Mount C-mount
$418.00
Ships in 3-4 weeks
This camera's 20.4 mm sensor diagonal uses 93 % of the lens's 22 mm image circle
Before you buy
Questions about the LS-CMR-0370
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which lenses fit the LS-CMR-0370?
C-mount lenses whose image circle covers its sensor diagonal (about 20.4 mm): LS-FFL-0712 (50 mm), LS-FFL-0713 (12 mm), LS-FFL-0381 (35 mm) and LS-FFL-0708 (25 mm).
What data rate does the LS-CMR-0370 need over USB3?
About 795 MB/s at its printed 47 fps at 4112 x 4112 (8 bits per pixel, calculated).
How does the LS-CMR-0370 connect?
Printed: Data interface: USB3.0*2.
Learn
Guides for this part
Engineering guides picked for the LS-CMR-0370: how to choose it, set it up and get a better image.
Camera exposure and gain units: interpreting raw valuesCamera exposure and gain units describe different controls: exposure is time, while gain may be a register code, multiplier or decibel value.
Multiple USB cameras: diagnose connection limitsMultiple USB cameras do not have a universal four-stream limit.
Machine vision camera resolution calculatorPixels needed on each axis = field of view / smallest feature × pixels per feature.
Other models in the Double USB3.0 area scan camera (LS-CMR-S26) series
See all 3 modelsHow this model compares
- Compared with LS-CMR-0371: resolution 4112 x 4112 here, 5120 x 5120 there; frame rate 47FPS here, 30FPS there.
Swipe to see all columns
| Model | Resolution | Speed | Pixel size | Sensor | Price | Availability | Link |
|---|---|---|---|---|---|---|---|
| LS-CMR-0370This model | 4112 x 4112 | 47FPS | 3.5 µm | 4/3" | $1,769.00 | Ships in 2-3 weeks | |
| LS-CMR-0369 | 5120 x 5120 | 30FPS | 2.5 µm | $2,219.00 | Ships in 2-3 weeks | View | |
| LS-CMR-0371 | 5120 x 5120 | 30FPS | 2.5 µm | 1.1" | $2,219.00 | Ships in 2-3 weeks | View |
