1.1" 25 megapixel ultra-high resolution FA lens, 50 mm, C-mount
LS-FFL-1653
- Focal length 50 mm
- Mount C-mount
$739.00
Ships in 2-3 weeks
Area scan cameras

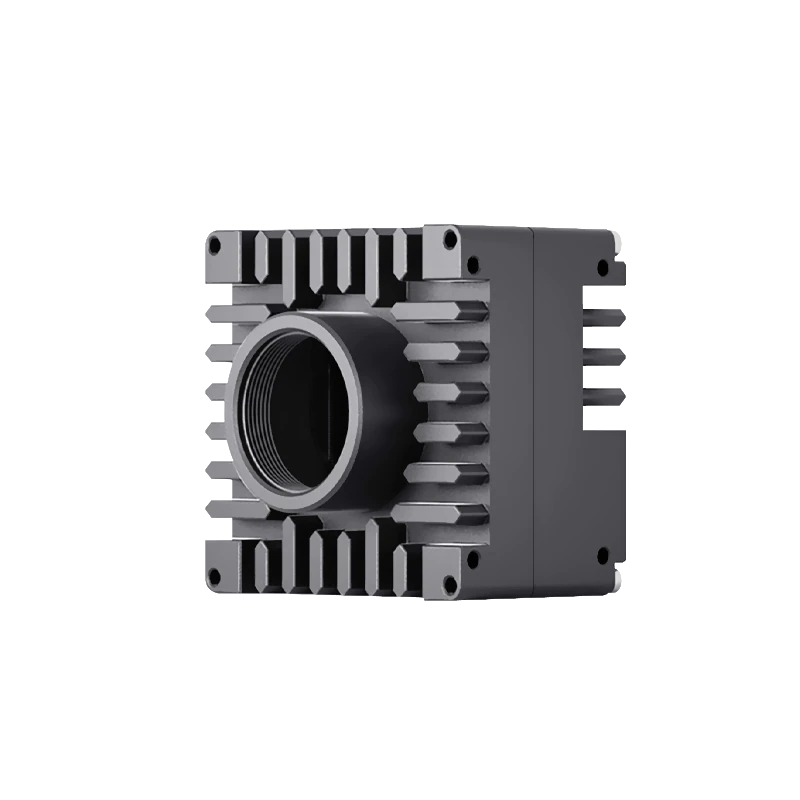

Double USB3.0 area scan camera, 26 MP, Mono, <5 W (LS-CMR-0369)
Model LS-CMR-0369
- Resolution5120*5120
- InterfaceUSB3.0*2
- Speed30FPS
- Lens mountC-mount
- Mono / colourMono
- Pixel size2.5 μm
$2,219.00
Ships in 2-3 weeks
0.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
lumaspecvision.com/products/lumaspec-ls-cmr-0369
Next to the 4112 x 4112 (17 MP) version of this camera, LS-CMR-0369 has a 5120 x 5120 (26 MP) sensor: for finer detail over the same field.
LS-CMR-0369: resolution 5120 x 5120, frame rate 30FPS, pixel size 2.5 µm.
This series of Mono industrial cameras with dual USB3.0 interfaces boasts advantages such as fast data transmission and no need for additional acquisition cards
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Certifications (as printed)CEFCCRoHS
Specifications
General
| Model | LS-CMR-0369 |
|---|---|
| Sensitivity | 1.03x10^7e/(W/m)s) |
| Spectral response | 390 nm-1050 nm |
| Compatibility | USB3.0Vision, GenICam, HALCON, LabView, OpenCV |
Sensor and imaging
| Resolution | 5120*5120 |
|---|---|
| Pixel size | 2.5 μm |
| Shutter | Global |
| Frame rate | 30FPS |
| Mono/color | Mono |
| Max Frame Rate | 30FPS |
| Gain | 1.0X-5.0X |
| Dynamic range | 65db |
| Exposure time | 12us-6s 610ms120us |
| SNR | 40db |
| Bit depth | 12bit |
Interfaces and I/O
| Data interface | USB3.0*2 |
|---|---|
| Lens interface | C-Mount |
Environment and compliance
| Temperature | Operating temperature:-10℃~50℃ |
|---|---|
| Humidity | 5% ~ 90%RH (non-condensing) |
| Certifications | CE, FCC, RoHS
As declared by the manufacturer |
Electrical
| Output Image Format | RAW, MONO |
|---|---|
| Trigger mode | Hardware Trigger, Software Trigger |
| Power supply | USB5V power supply |
| Typical Power Consumption | <5 W |
| IP Protection Rating | IP30 |
| Voltage | USB5V power supply |
Mechanical
| Target size | 1.1" |
|---|---|
| Lens mount | C |
| Optical Size | 1.1" |

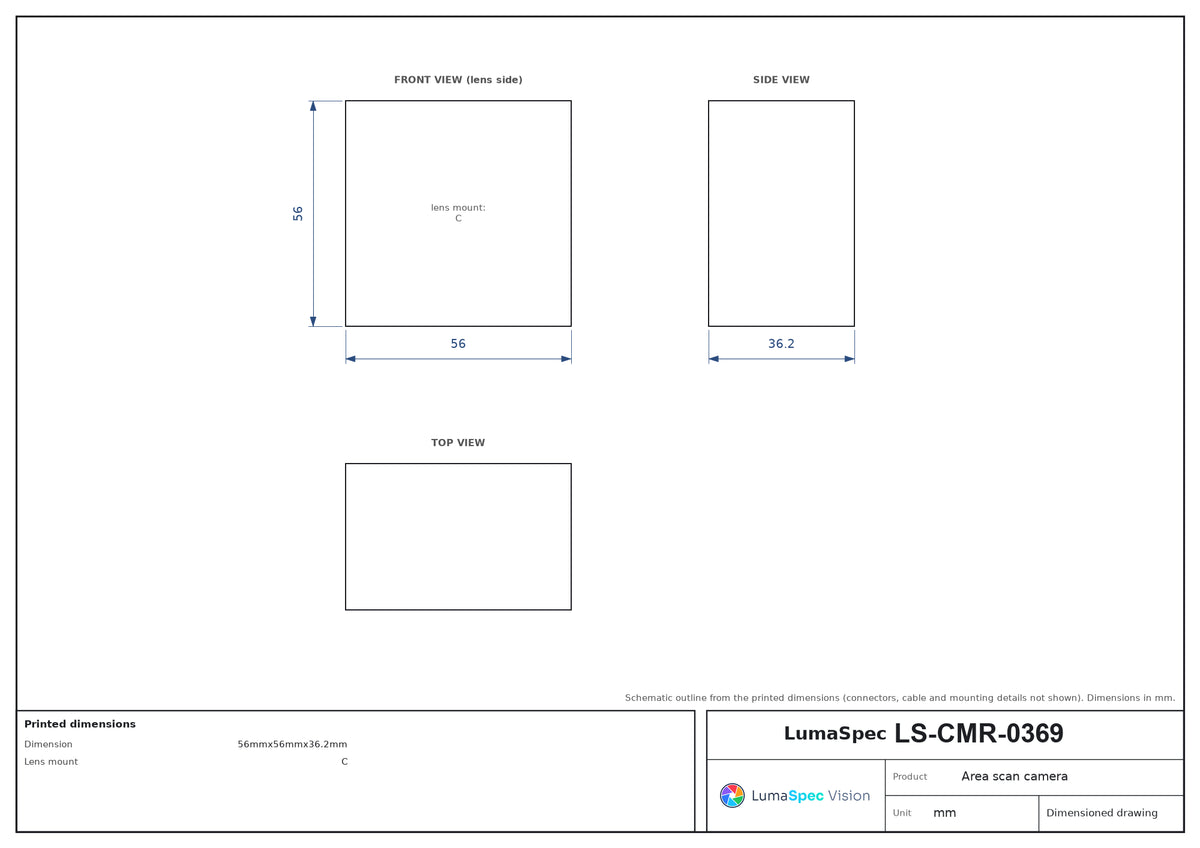

| Dimension | 56mmx56mmx36.2mm |
| Weight | <185 g |
Engineering data
Field of view and resolution with the LS-CMR-0369
Sensor area12.8 × 12.8 mm1.1" optical format
Lens image circle needed≥ Ø 18.1 mmC-mount
Pixel pitch2.5 µm5120 x 5120 px
Image data at max frame rate786 MB/sCalculated: 30 fps × 5120 × 5120 px at 8 bit
With a 16 mm lens at 500 mm400 × 400 mm0.078 mm per pixel
Dynamic range65 dB
SNR40 dB
Power consumption< 5 W
Weight< 185 g
| Lens | At 300 mm | At 500 mm | At 1000 mm |
|---|---|---|---|
| 8 mm | 480 × 480 mm0.094 mm per pixel | 800 × 800 mm0.156 mm per pixel | 1600 × 1600 mm0.312 mm per pixel |
| 12 mm | 320 × 320 mm0.062 mm per pixel | 533 × 533 mm0.104 mm per pixel | 1067 × 1067 mm0.208 mm per pixel |
| 16 mm | 240 × 240 mm0.047 mm per pixel | 400 × 400 mm0.078 mm per pixel | 800 × 800 mm0.156 mm per pixel |
| 25 mm | 154 × 154 mm0.03 mm per pixel | 256 × 256 mm0.05 mm per pixel | 512 × 512 mm0.1 mm per pixel |
| 35 mm | 110 × 110 mm0.021 mm per pixel | 183 × 183 mm0.036 mm per pixel | 366 × 366 mm0.071 mm per pixel |
| 50 mm | 76.8 × 76.8 mm0.015 mm per pixel | 128 × 128 mm0.025 mm per pixel | 256 × 256 mm0.05 mm per pixel |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This partDouble USB3.0 area scan camera, 26 MP, Mono, <5 W (LS-CMR-0369)
$2,219.00
-
Lenses for this camera
1.1" 25 megapixel ultra-high resolution FA lens, 50 mm, C-mount (LS-FFL-1653)
$739.00
Set total $2,958.00
Added to your quote list.
Lenses for this C-mount camera
This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle
1.1" 25 megapixel ultra-high resolution FA lens, 35 mm, C-mount
LS-FFL-1652
- Focal length 35 mm
- Mount C-mount
$709.00
Ships in 2-3 weeks
This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle
1.1" 25 megapixel ultra-high resolution FA lens, 16 mm, C-mount
LS-FFL-1650
- Focal length 16 mm
- Mount C-mount
$679.00
Ships in 2-3 weeks
This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle
Liquid lens rear module, 1.1", C-mount
LS-FFL-1646
- Mount C-mount
- Sensor 1.1"
$959.00
Ships in 2-3 weeks
This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.4 mm image circle
25 mm liquid lens, F5.0, C-mount
LS-FFL-1662
- Focal length 25 mm
- Mount C-mount
$1,200.00
Ships in 3-4 weeks
This camera's 18.1 mm sensor diagonal uses 100 % of the lens's 18 mm image circle
1.1" 25 megapixel ultra-high resolution FA lens, 75 mm, C-mount
LS-FFL-1654
- Focal length 75 mm
- Mount C-mount
$779.00
Ships in 2-3 weeks
This camera's 18.1 mm sensor diagonal uses 98 % of the lens's 18.5 mm image circle
Before you buy
Questions about the LS-CMR-0369
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
Which lenses fit the LS-CMR-0369?
C-mount lenses whose image circle covers its sensor diagonal (about 18.1 mm): LS-FFL-1653 (50 mm), LS-FFL-1652 (35 mm), LS-FFL-1650 (16 mm) and LS-FFL-1646.
What data rate does the LS-CMR-0369 need over USB3?
About 786 MB/s at its printed 30 fps at 5120 x 5120 (8 bits per pixel, calculated).
What detector and spectral range does the LS-CMR-0369 have?
Printed: Spectral response: 390 nm-1050 nm.
How does the LS-CMR-0369 connect?
Printed: Data interface: USB3.0*2.
Can the LS-CMR-0369 be triggered externally?
Yes, as printed: Trigger mode: Hardware Trigger, Software Trigger.
Learn
Guides for this part
Engineering guides picked for the LS-CMR-0369: how to choose it, set it up and get a better image.
Choosing camera resolution for dimensional inspectionCamera resolution for dimensional inspection should be calculated from field of view and the sampling needed to support your tolerance, not selected by megapixels alone.
Camera exposure and gain units: interpreting raw valuesCamera exposure and gain units describe different controls: exposure is time, while gain may be a register code, multiplier or decibel value.
Machine vision camera resolution calculatorPixels needed on each axis = field of view / smallest feature × pixels per feature.
Other models in the Double USB3.0 area scan camera (LS-CMR-S26) series
See all 3 modelsHow this model compares
- Same 5120 × 5120 resolution and pixel size as LS-CMR-0003 (10GigE, M58-mount); this one: USB 3.0, C-mount.
- Compared with LS-CMR-0370: resolution 5120 x 5120 here, 4112 x 4112 there; frame rate 30FPS here, 47FPS there.
Swipe to see all columns
| Model | Resolution | Speed | Pixel size | Sensor | Price | Availability | Link |
|---|---|---|---|---|---|---|---|
| LS-CMR-0370 | 4112 x 4112 | 47FPS | 3.5 µm | 4/3" | $1,769.00 | Ships in 2-3 weeks | View |
| LS-CMR-0369This model | 5120 x 5120 | 30FPS | 2.5 µm | $2,219.00 | Ships in 2-3 weeks | ||
| LS-CMR-0371 | 5120 x 5120 | 30FPS | 2.5 µm | 1.1" | $2,219.00 | Ships in 2-3 weeks | View |
