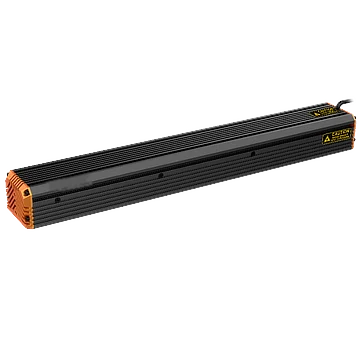

Bar Light, 400 x 30 mm, IR 940 nm (LS-BAR-1152)
  • Bar Light, 400 x 30 mm, IR 940 nm (LS-BAR-1152)
  • LS-BAR-1152 dimensions (mm)

Bar lights

Bar Light, 378 x 30 mm, IR 940 nm (LS-BAR-1152)

Model LS-BAR-1152

  • ColourInfrared
  • Emitting area366 mm × 21.6 mm
  • Size378 mm × 30 mm × 30 mm
  • Voltage24 VDC
  • Power22.8 W
  • Wavelength940 nm
$459.00

Ships in 2-3 weeks

1.04 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Bar Light, 378 x 30 mm, IR 940 nm (LS-BAR-1152)LS-BAR-1152

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-BAR-1152: dimension 378 mm x 30 mm x 30 mm, emitting area dimension 366 mm x 21.6 mm, LED rows 4, power 22.8 W.

Bar Light, 400 x 30 mm, IR 940 nm. The irradiation direction and angle can be adjusted freely. Support multi-side installation.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-1152
Safety classNo danger
Cooling modeNatural cooling

Optics

Best working distance30 mm to 500 mm

Interfaces and I/O

Connector typeSMR-03V-B
Cable length1 m

Light

ColorIR940
Center illuminance/irradiance≥ 2800 μW/cm2 @ 100 mm
Wavelength940 nm
Color temperatureW: 6000K to 7500K
Emitting area dimension366 mm × 21.6 mm
LED rows4
Diffuse plate includedPMMA

Environment and compliance

TemperatureWorking temperature: 0 °C to 40 °C (32 °F to 104 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)

Electrical

Power22.8 W
Input voltage24 VDC

Mechanical

Dimension378 mm × 30 mm × 30 mm
Weight0.67 kg
Shipping weight (estimated)1.04 kg

Engineering data

Drive and fit the LS-BAR-1152

Worked out from the printed voltage, power and dimensions: what the light draws and what it needs from a controller.

Supply24 V DC
Current at 24 V950 mACalculated: printed power ÷ supply voltage
Controller channel it needs24 V constant voltage, at least 22.8 W
Emitting length366 mm
Operating temperature0 to 40 °C
Cable length1 m
Center irradiance≥ 2800 µW/cm²at 100 mm

Mounting and installation

Cable1 mSMR-03V-B connector

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Controllers for this light

30 W per channel at 24 V for this 22.8 W light

24 W per channel at 24 V for this 22.8 W light

37.5 W per channel at 24 V for this 22.8 W light

24 W per channel at 24 V for this 22.8 W light

24 W per channel at 24 V for this 22.8 W light

28.1 W per channel at 24 V for this 22.8 W light

Light cables
