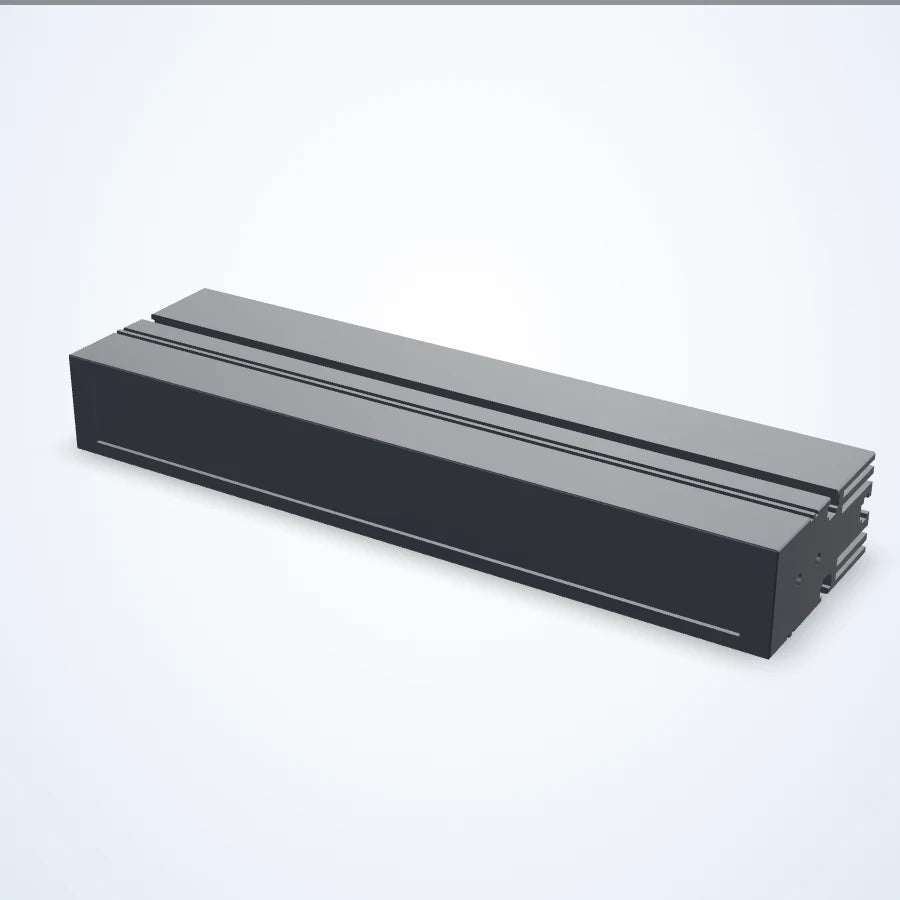

LS-BAR-0900 3D render
  • LS-BAR-0900 3D render

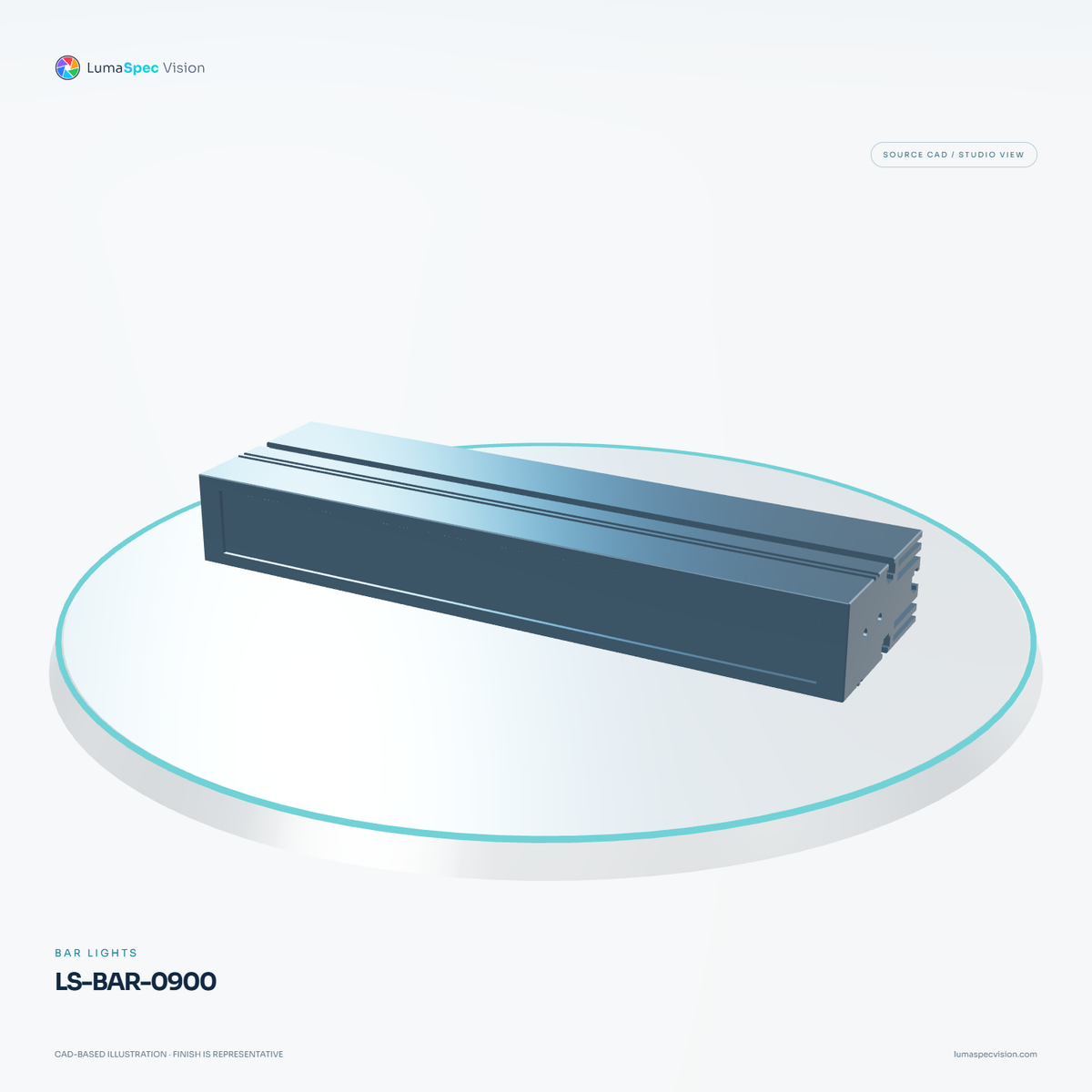

  • LS-BAR-0900 — Bar lights, 3D view 1. CAD-based illustration; finish is representative.

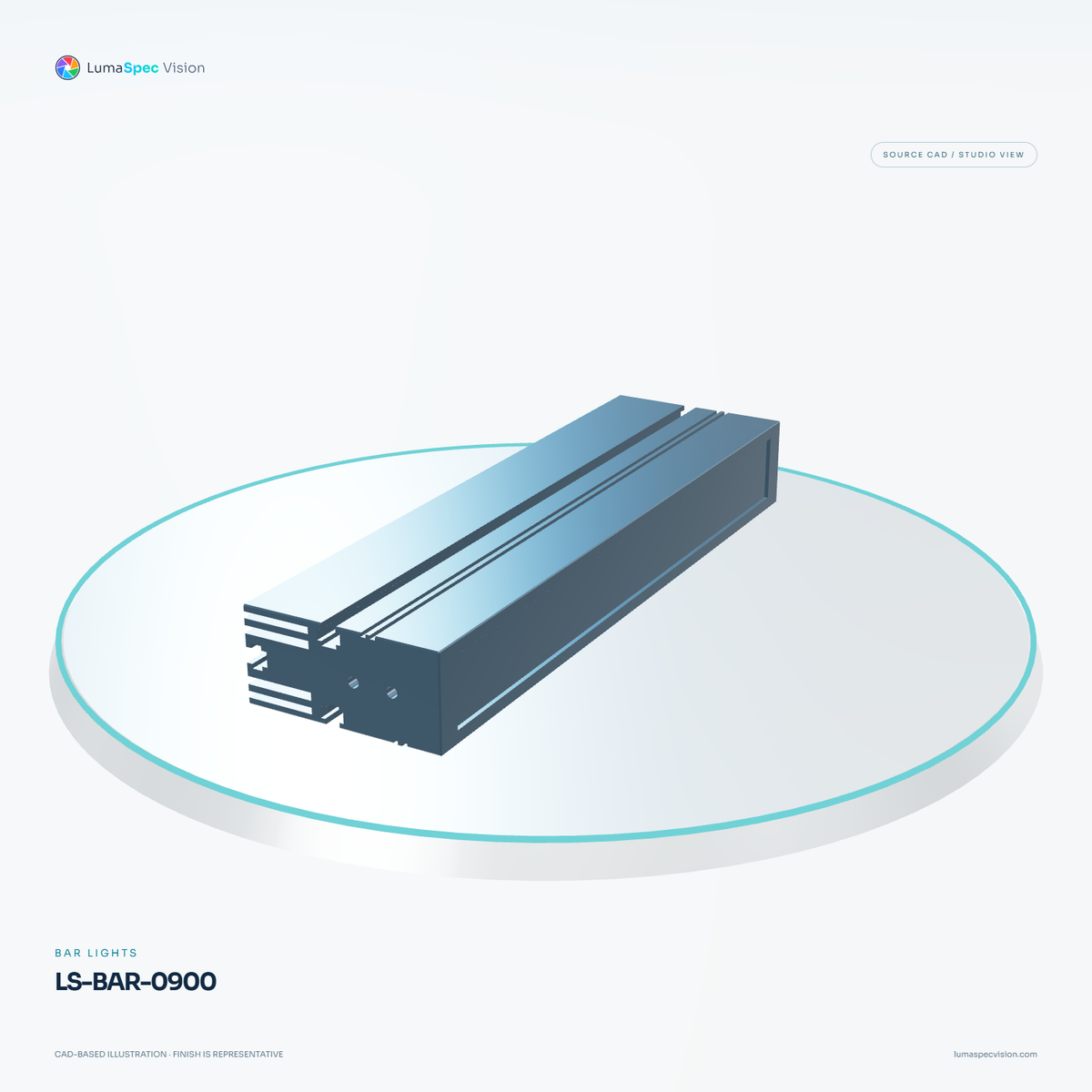

  • LS-BAR-0900 — Bar lights, 3D view 2. CAD-based illustration; finish is representative.

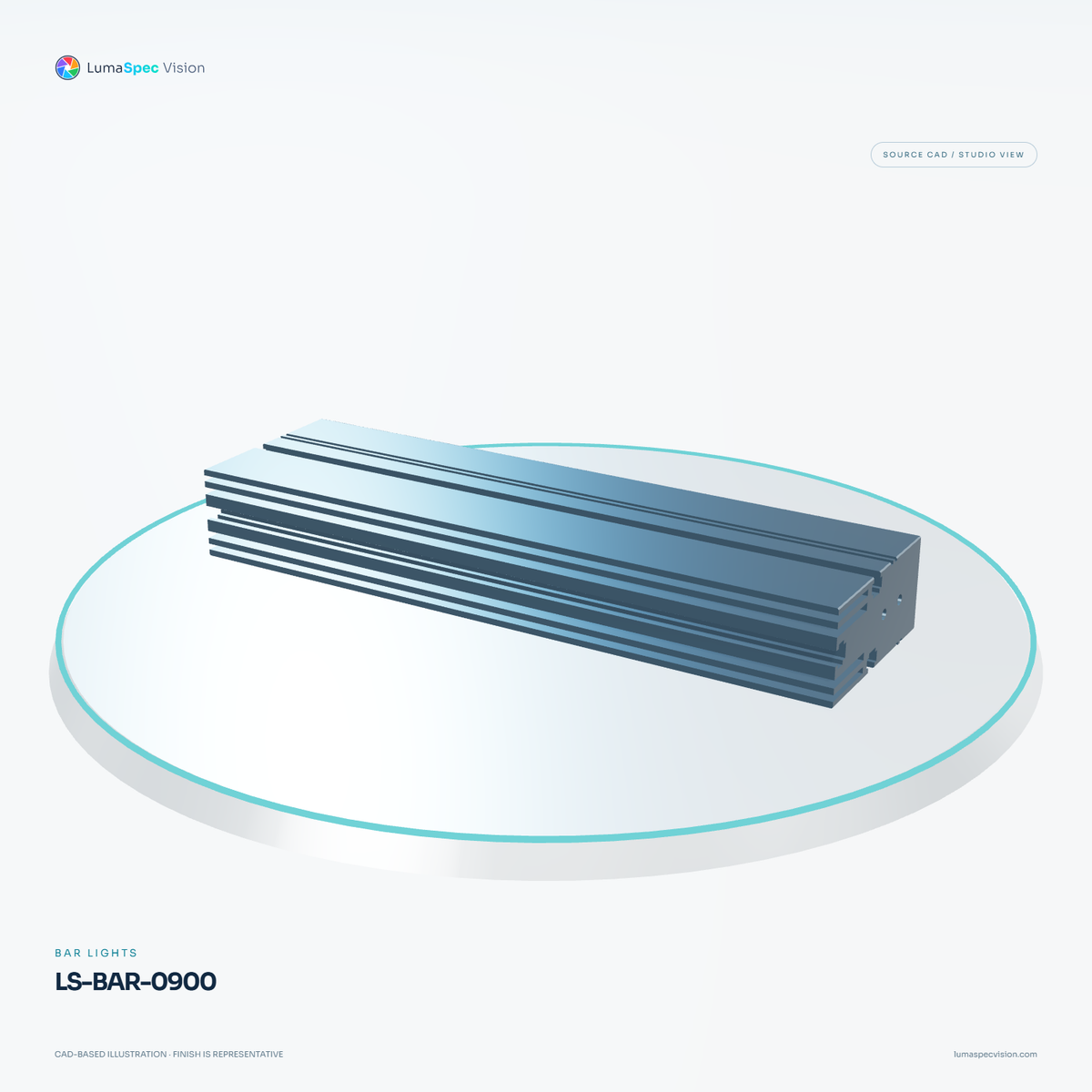

  • LS-BAR-0900 — Bar lights, 3D view 3. CAD-based illustration; finish is representative.
  • LS-BAR-0900 dimensions (mm)

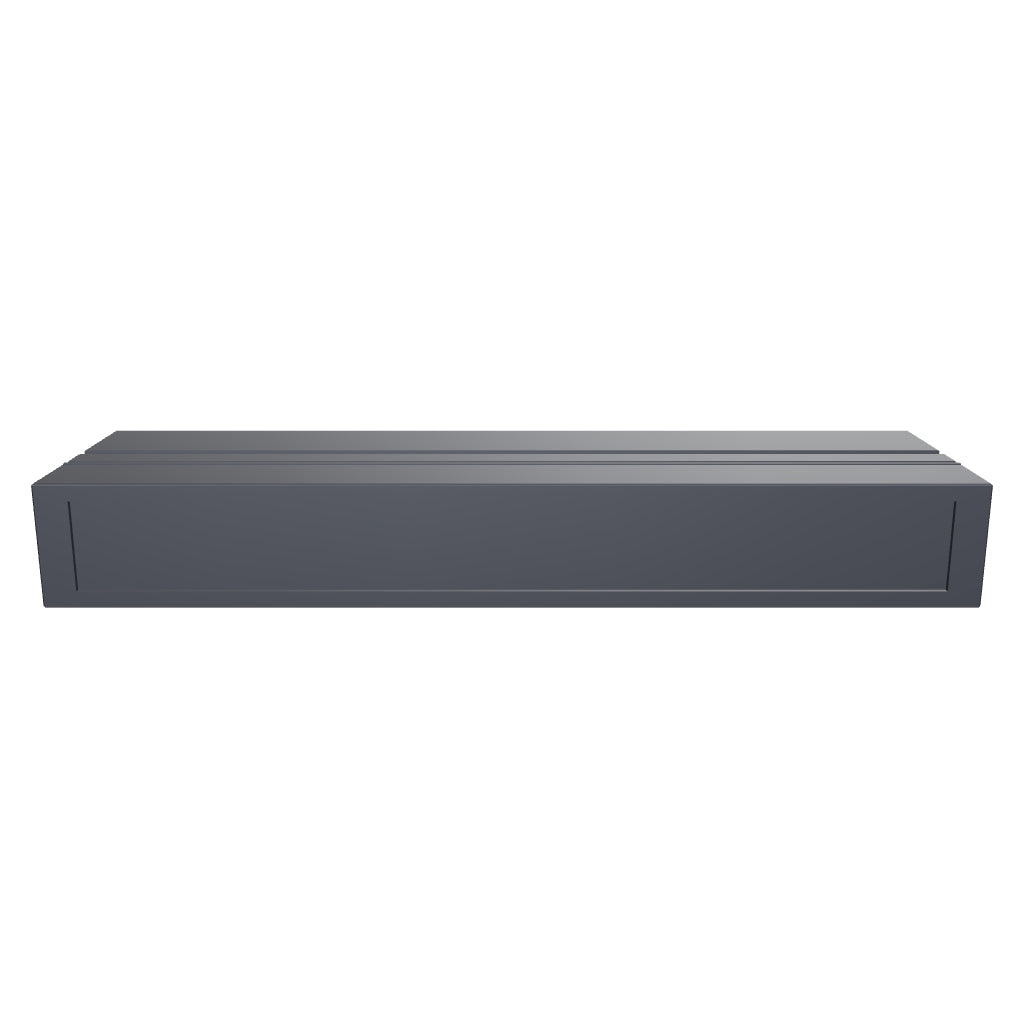

  • LS-BAR-0900 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Bar lights

150 x 16 mm High-Power LED Bar Light (LS-BAR-0900)

Model LS-BAR-0900-R

  • ColourRed, Green, Blue, White
  • Emitting area150x16 mm
  • Size162x22x46 mm
  • Voltage24 V
$289.00

Ships in 2-3 weeks

0.4 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

150 x 16 mm High-Power LED Bar Light (LS-BAR-0900)LS-BAR-0900-R

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

150 x 16 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0900

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows1
Emitting area (mm)150x16
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R/G/B/W (W)4.6

Mechanical

Outer size L x W x H (mm)162x22x46
Shipping weight (estimated)0.40 kg

Mounting and drawing data

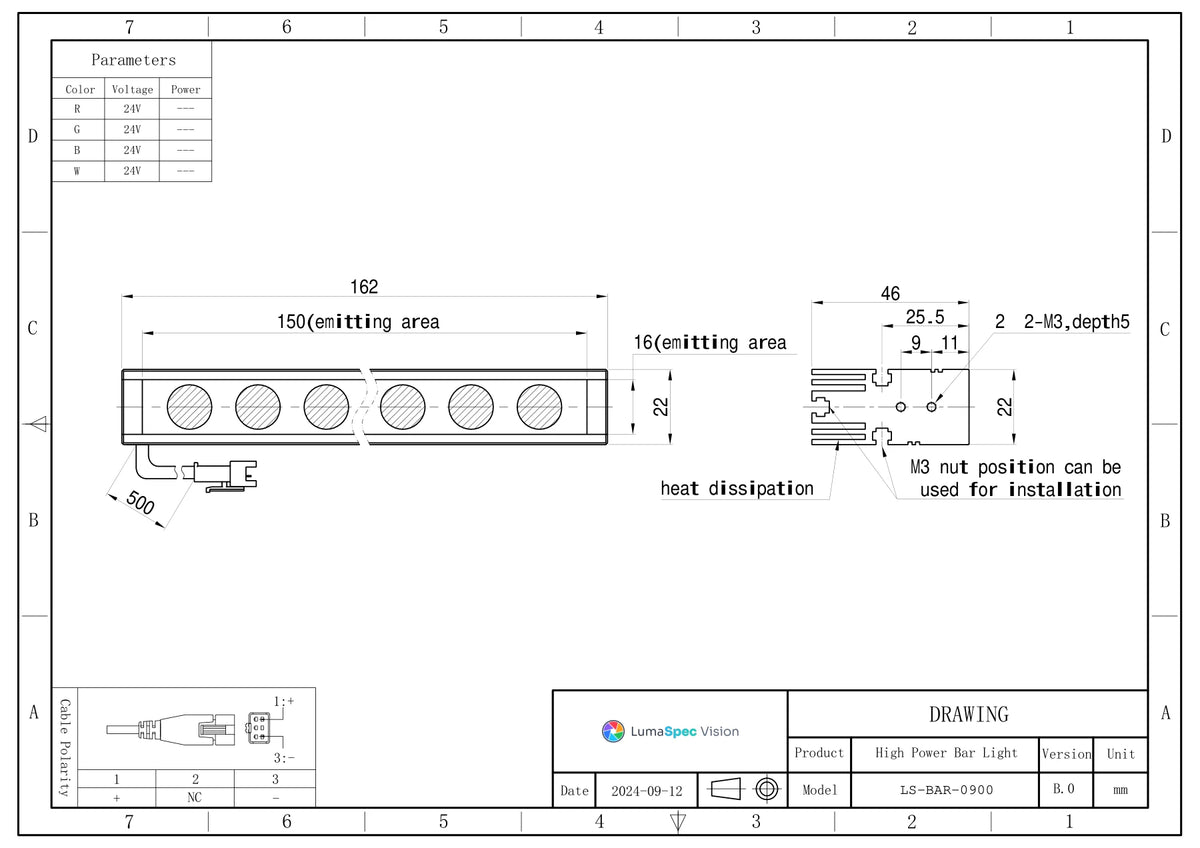

drawing: overall length A+12, 22 high x 46 deep (finned), 16 emitting width, 4-M3 depth 5 holes (9 / 11 / 25.5), M3 nut (T-slot) mounting, 500 mm cable

LS-BAR-0900

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BAR-0900 — Bar lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm)
150x16
Voltage (V)
24
Outer size L x W x H (mm)
162x22x46

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
