100 x 30 mm High-Power LED Bar Light (LS-BAR-0899)
Model LS-BAR-0899
- ColourRed, Green, Blue, White
- Emitting area100x30 mm
- Size112x36x46 mm
- Voltage24 V
Ships in 2-3 weeks
0.4 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
100 x 30 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0899 |
|---|
Interfaces and I/O
| Cable length | 500 mm (per dimension drawings) |
|---|
Light
| LED rows | 2 |
|---|---|
| Emitting area (mm) | 100x30 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 4.6 |
Mechanical
| Outer size L x W x H (mm) | 112x36x46 |
|---|---|
| Shipping weight (estimated) | 0.40 kg |

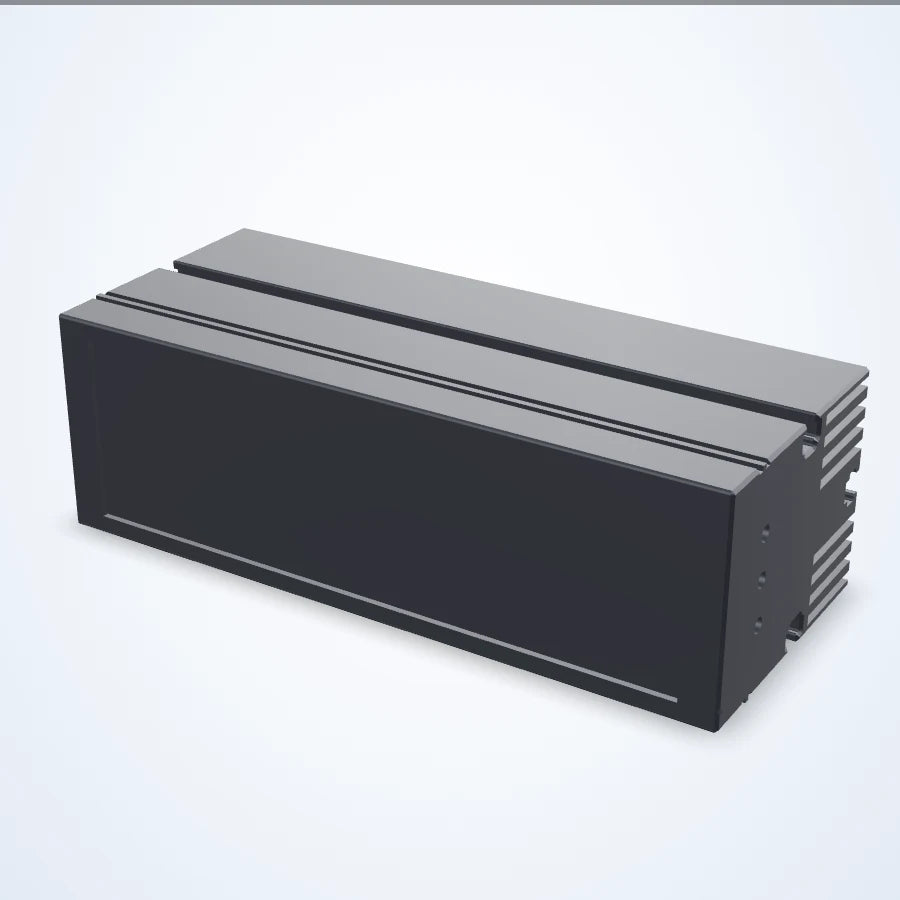

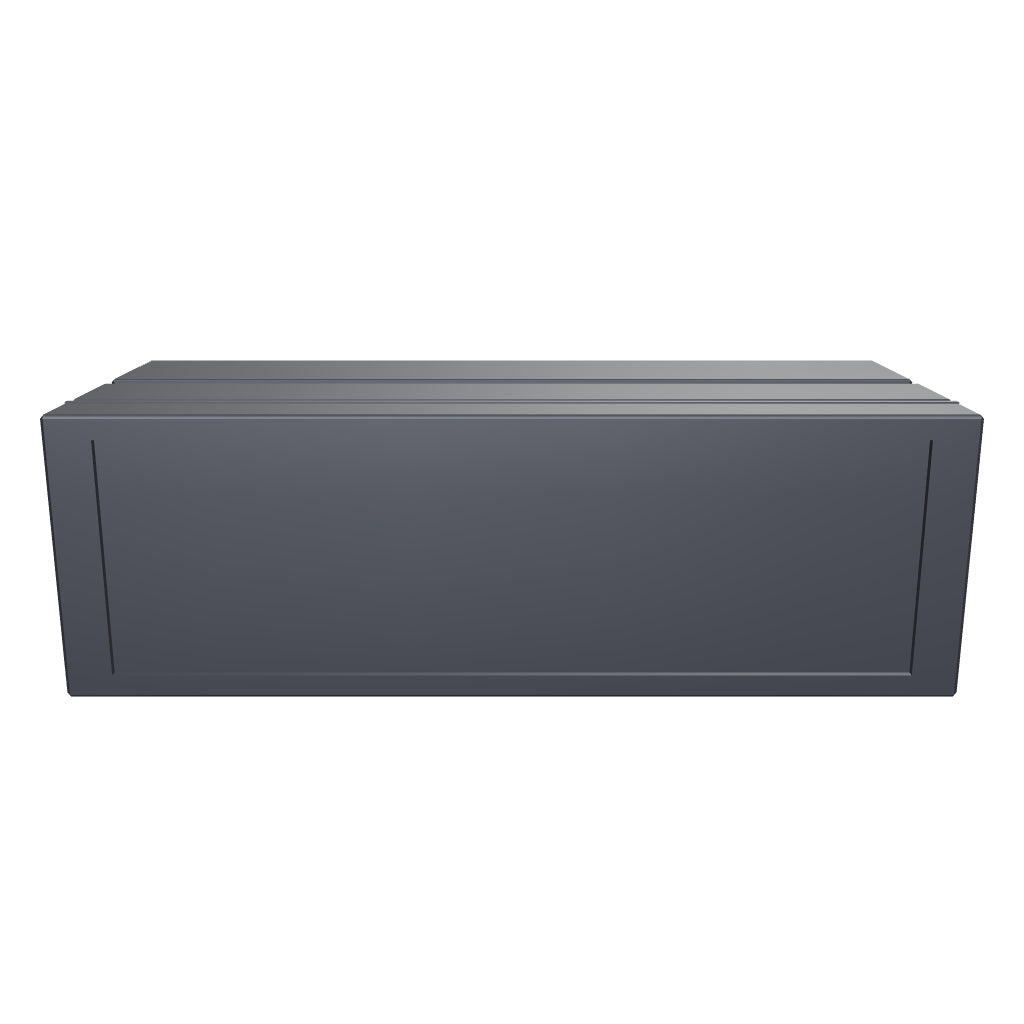

Photo shows a representative model of this series; see the specifications for this model.
Mounting and drawing data

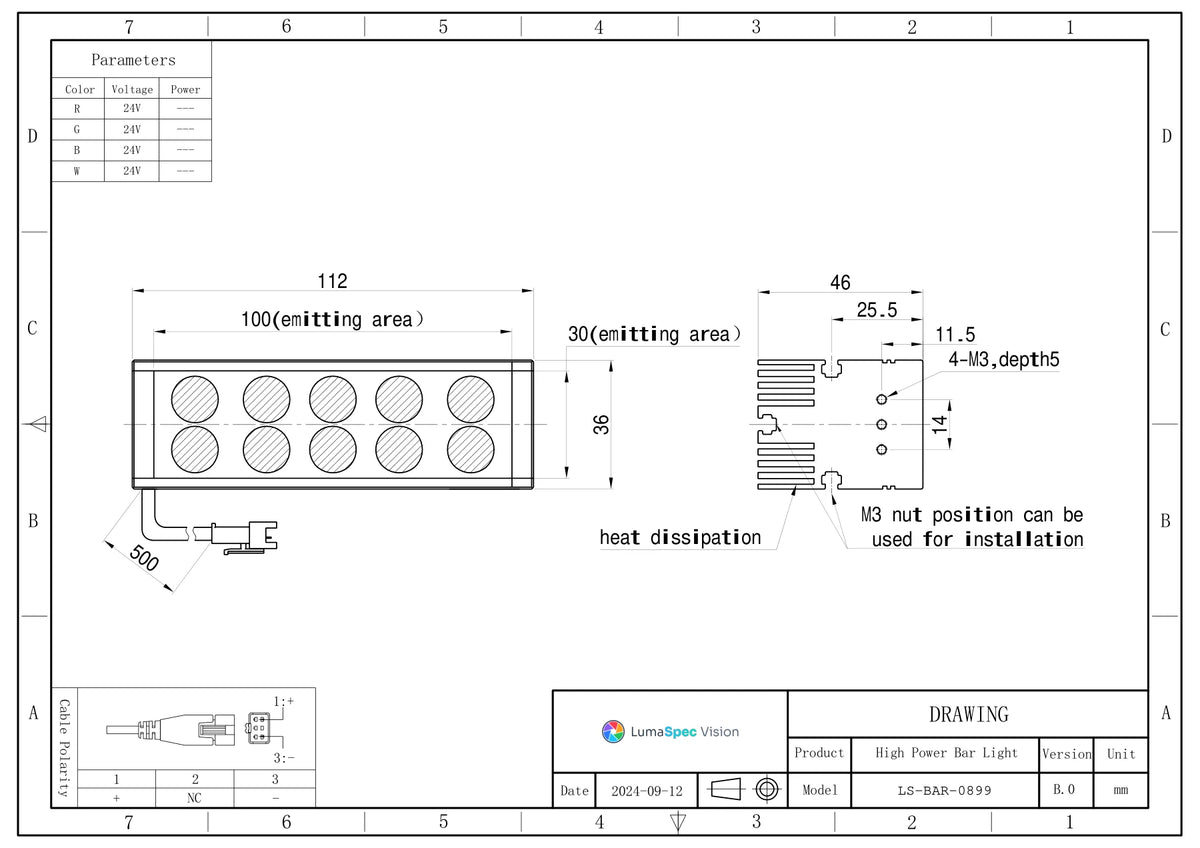

drawing: overall length A+12, 36 high x 46 deep (finned), 30 emitting width, 4-M3 depth 6 holes (11.5 / 25.5, 14 spacing), M3 nut (T-slot) mounting, 500 mm cable
LS-BAR-0899

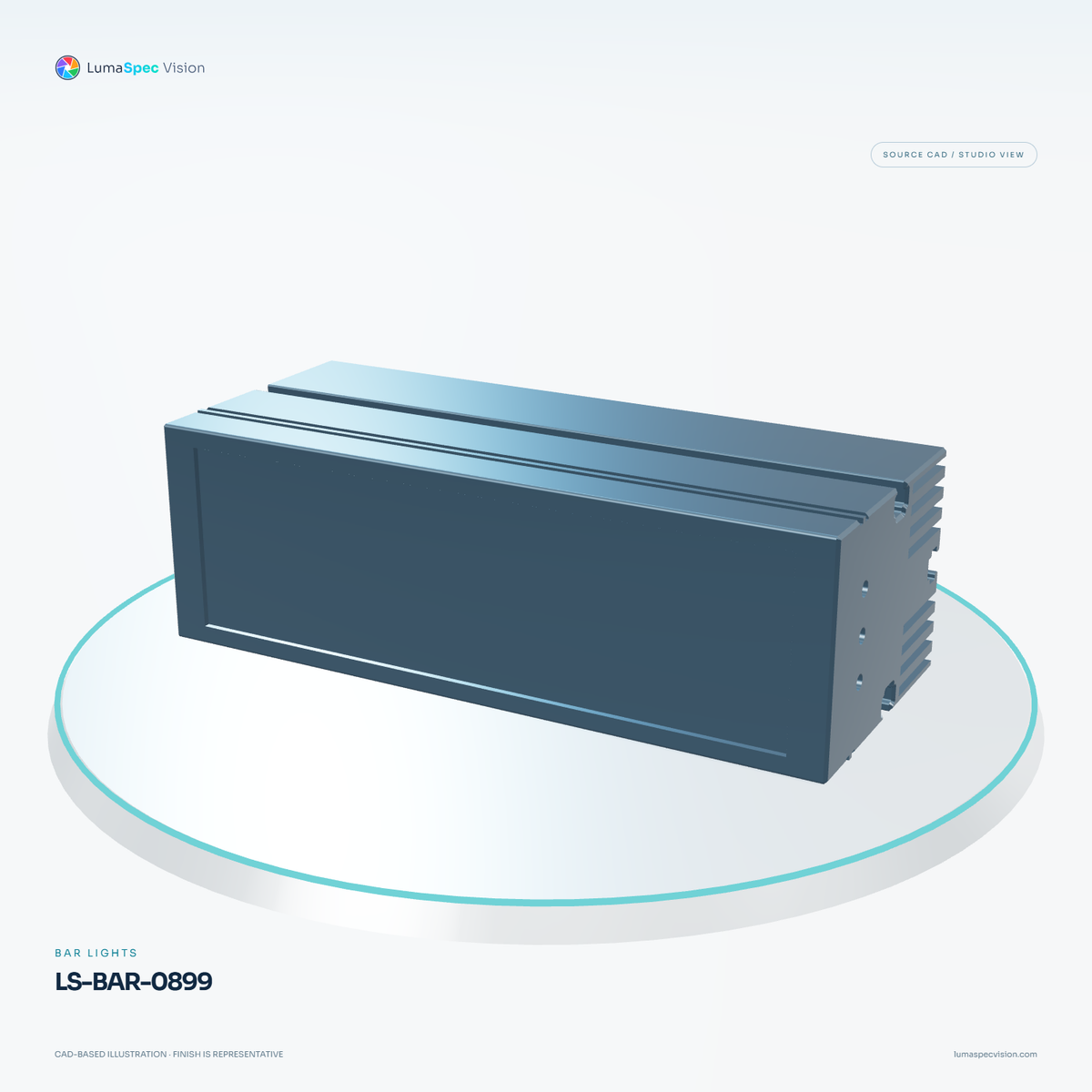

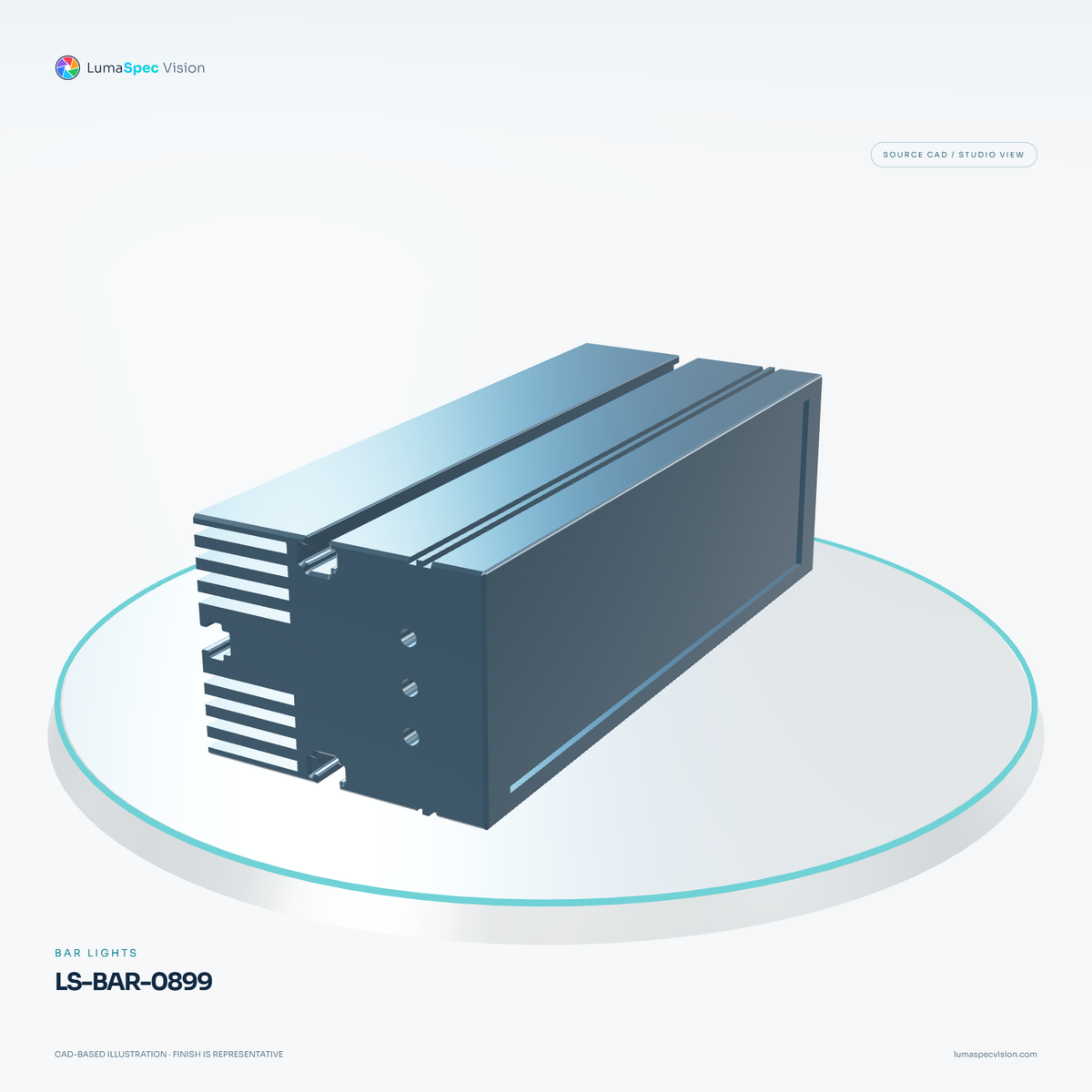

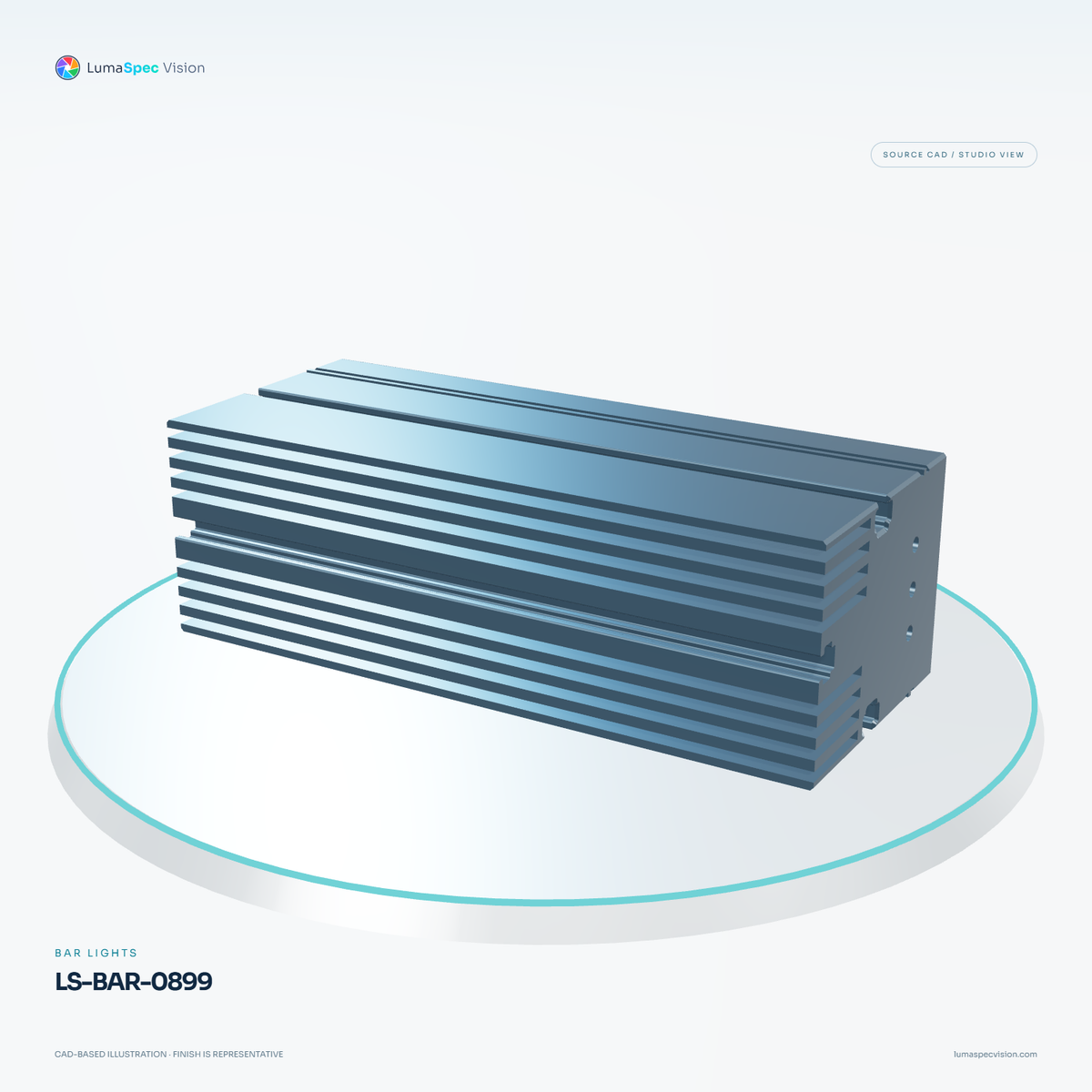

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Emitting area (mm)
- 100x30
- Voltage (V)
- 24
- Outer size L x W x H (mm)
- 112x36x46
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
