900 x 30 mm High-Power LED Bar Light (LS-BAR-0911)
Model LS-BAR-0911
- ColourRed, Green, Blue, White
- Emitting area900x30 mm
- Size912x36x46 mm
- Voltage24 V
In stock - ships the same business day (3 available, order by 2 PM ET)
1.7 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
900 x 30 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-BAR-0911 |
|---|
Interfaces and I/O
| Cable length | 500 mm (per dimension drawings) |
|---|
Light
| LED rows | 2 |
|---|---|
| Emitting area (mm) | 900x30 |
| Colours | Red, Green, Blue, White |
| LED colour options (legend) | R / G / B / W / IR / UV |
| Colours shown per model | R, G, B, W |
Electrical
| Voltage (V) | 24 |
|---|---|
| Power R/G/B/W (W) | 54.7 |
Mechanical
| Outer size L x W x H (mm) | 912x36x46 |
|---|---|
| Shipping weight (estimated) | 1.70 kg |
Photo shows a representative model of this series; see the specifications for this model.

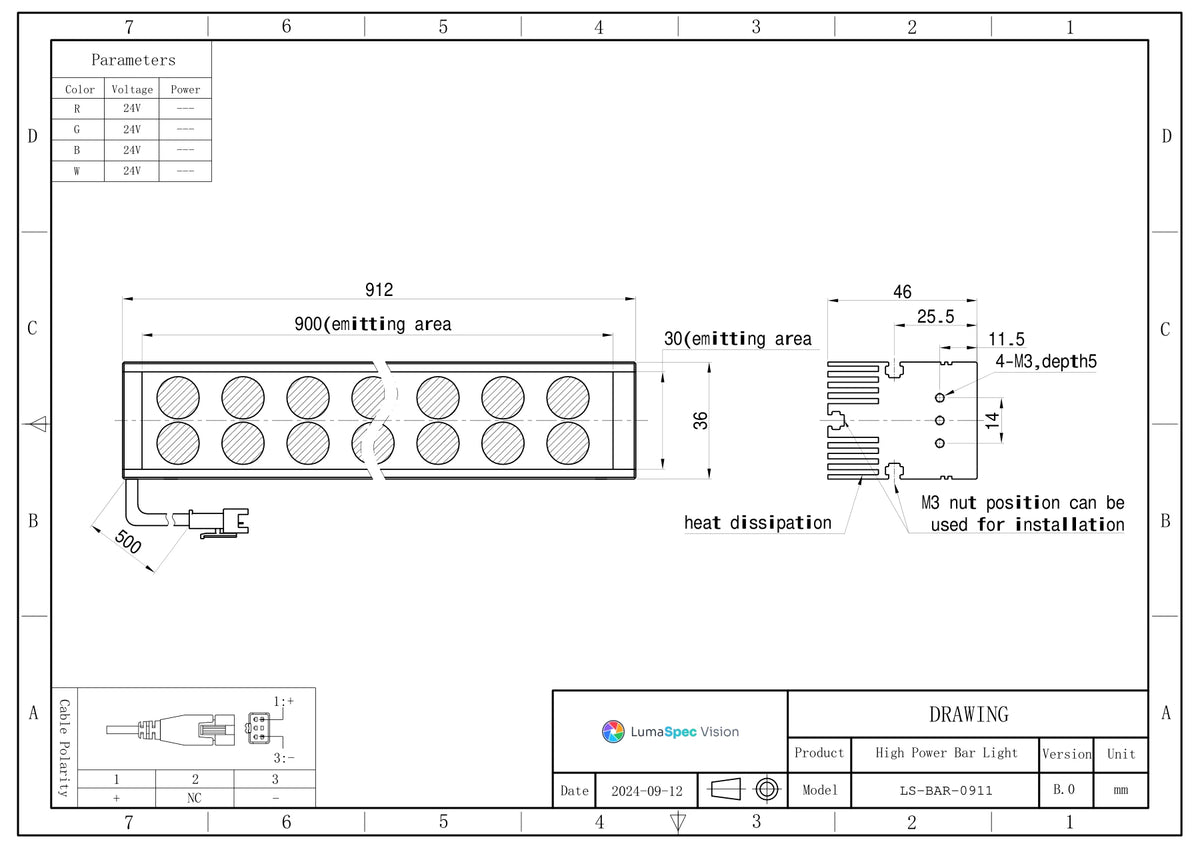

Mounting and drawing data
drawing: overall length A+12, 36 high x 46 deep (finned), 30 emitting width, 4-M3 depth 6 holes (11.5 / 25.5, 14 spacing), M3 nut (T-slot) mounting, 500 mm cable
LS-BAR-0911

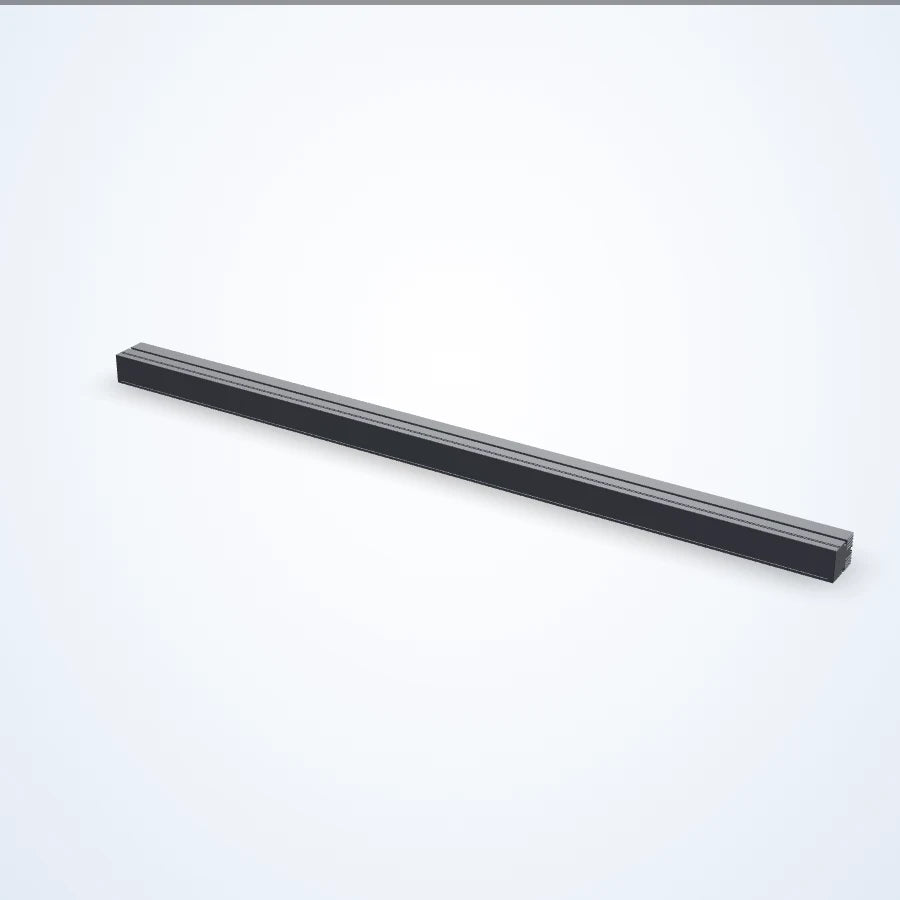

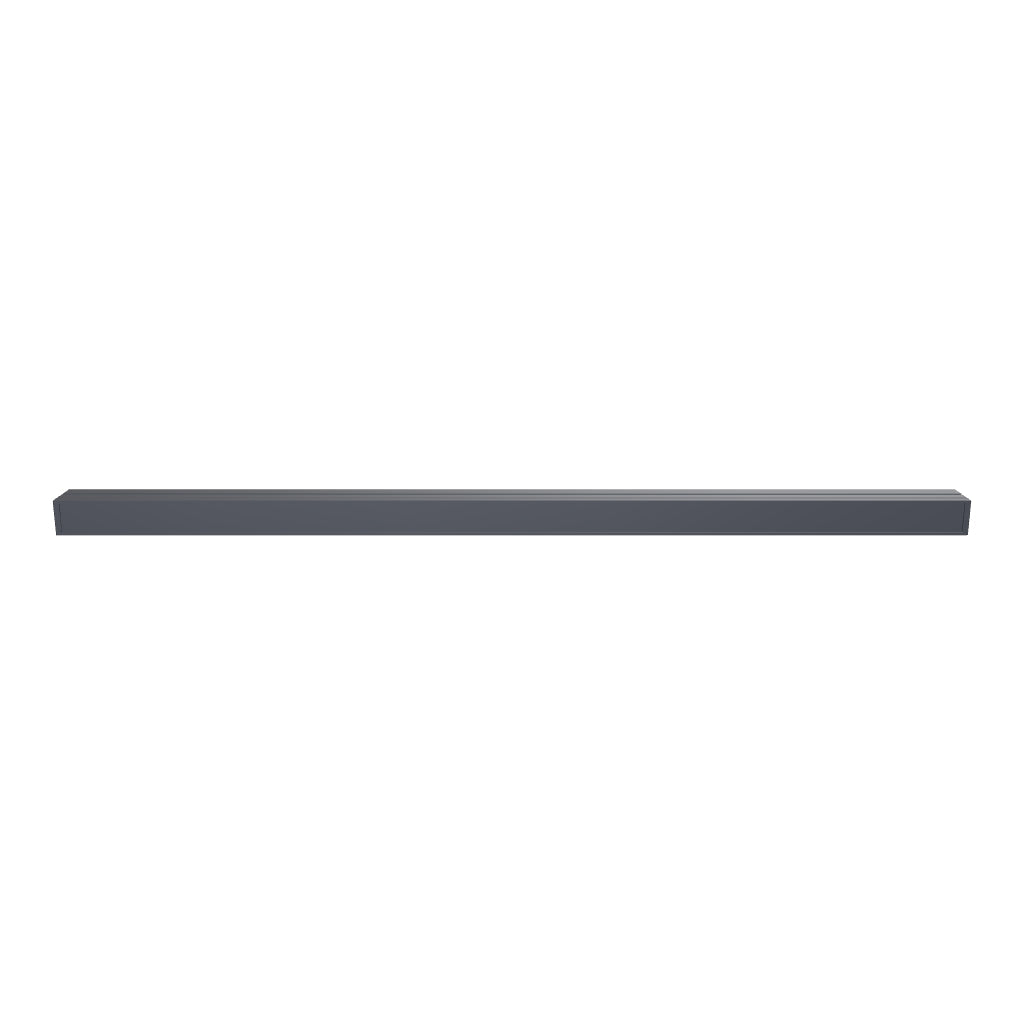

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Emitting area (mm)
- 900x30
- Voltage (V)
- 24
- Outer size L x W x H (mm)
- 912x36x46
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
