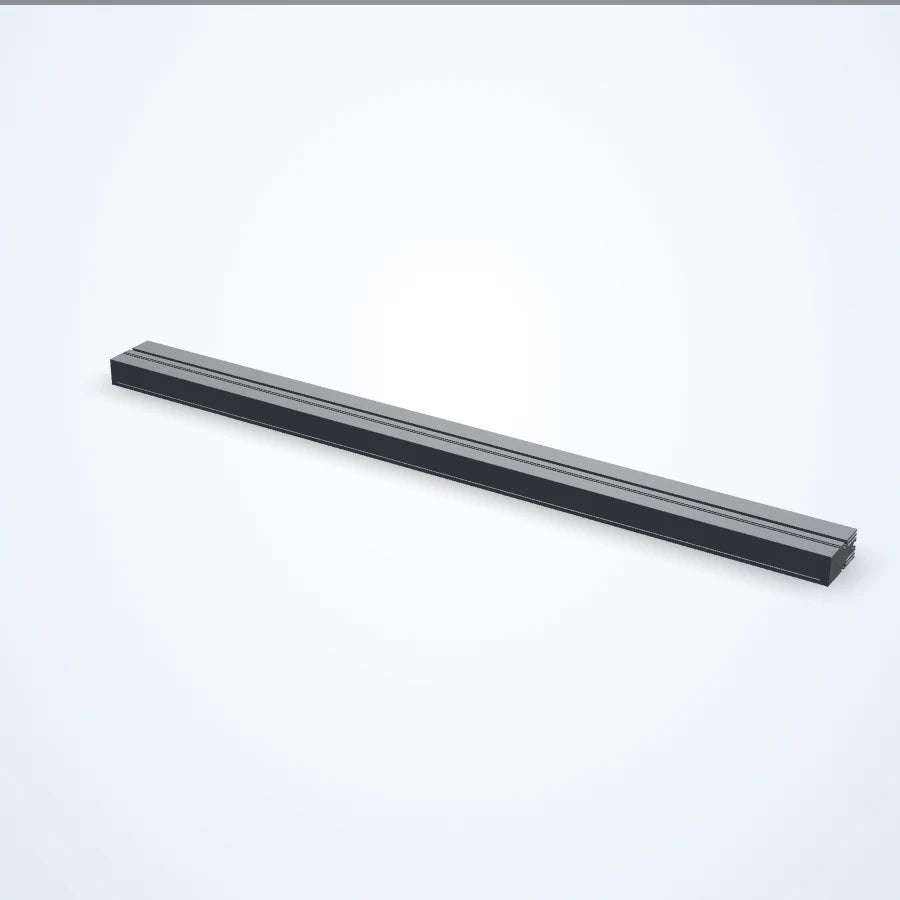

LS-BAR-0906 3D render
  • LS-BAR-0906 3D render

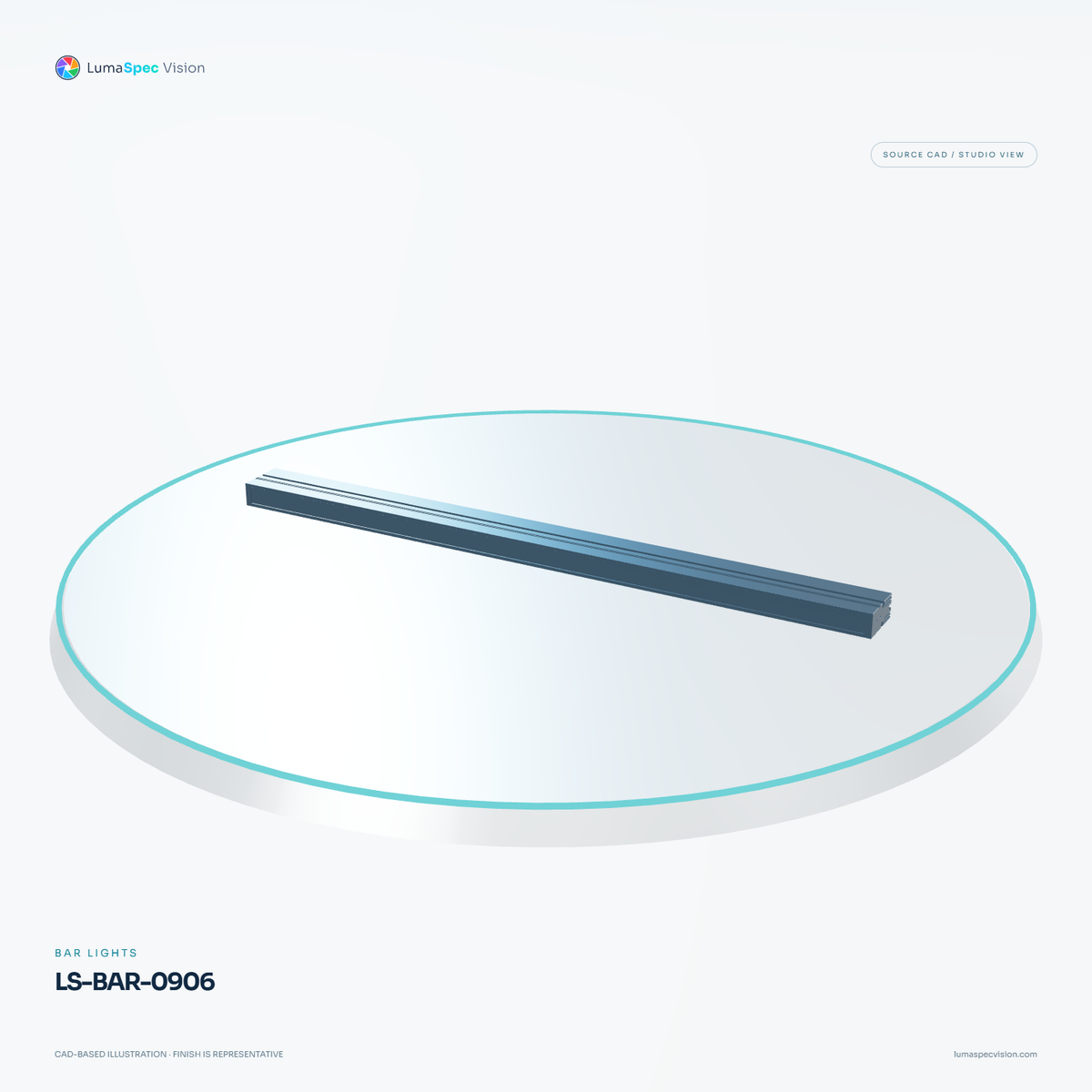

  • LS-BAR-0906 — Bar lights, 3D view 1. CAD-based illustration; finish is representative.

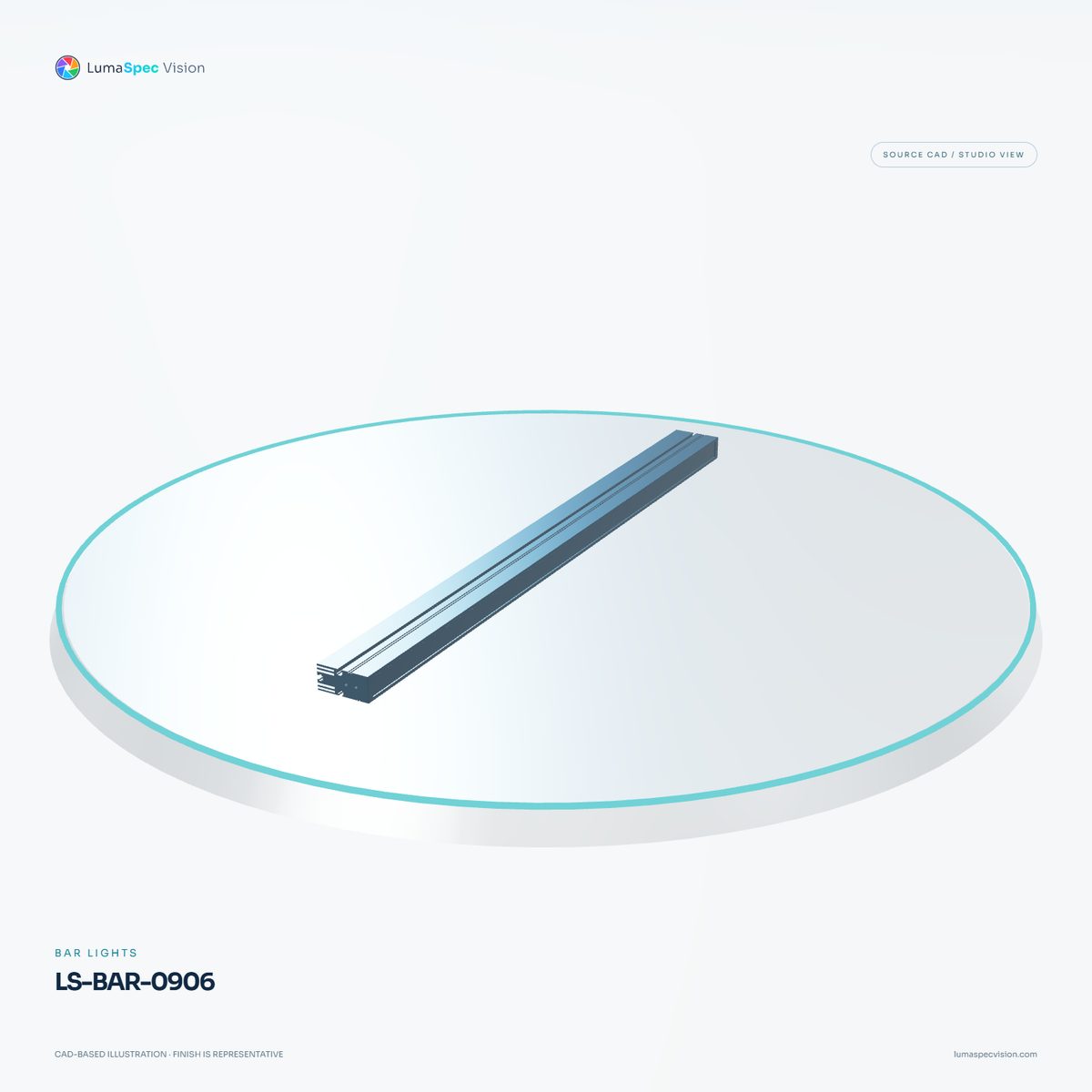

  • LS-BAR-0906 — Bar lights, 3D view 2. CAD-based illustration; finish is representative.

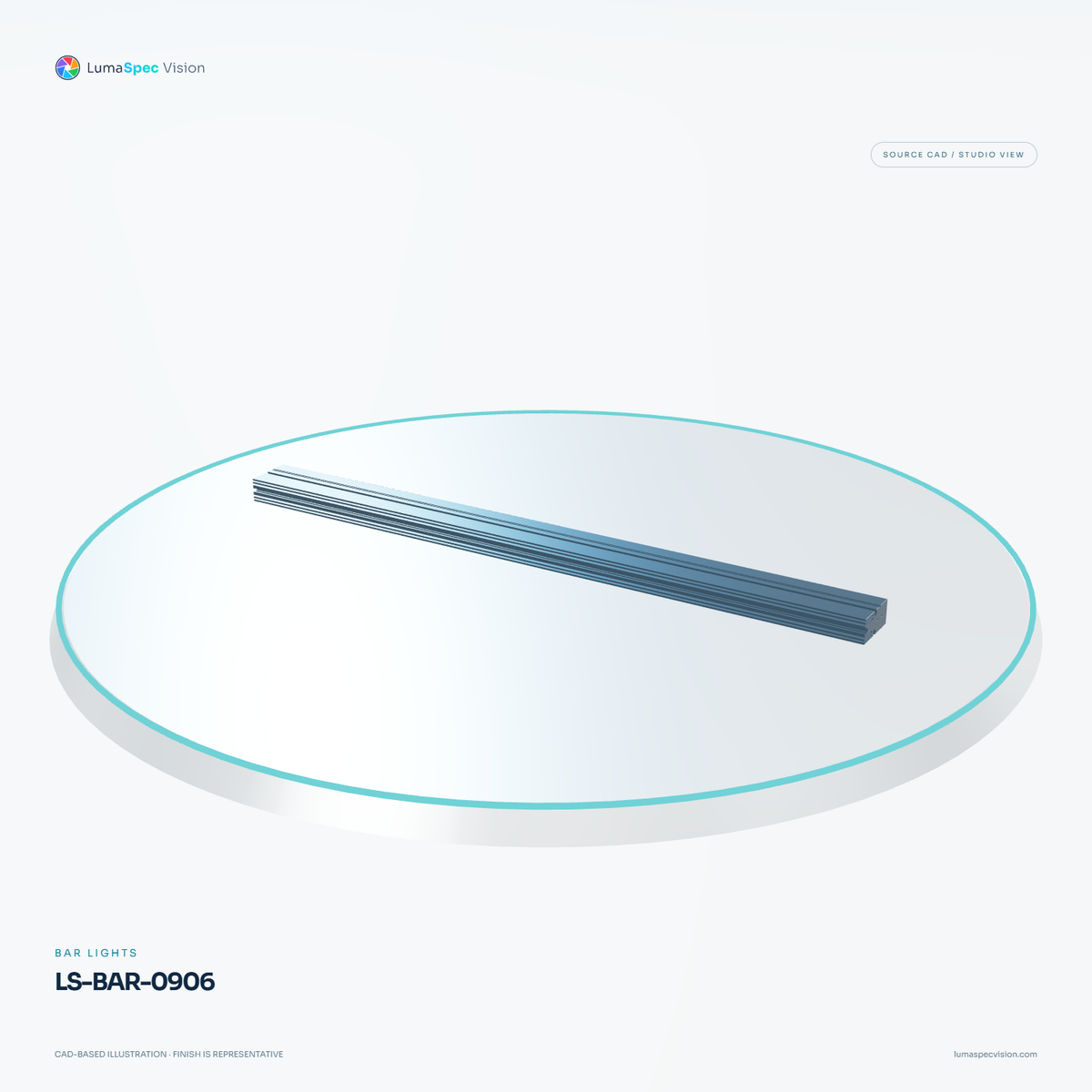

  • LS-BAR-0906 — Bar lights, 3D view 3. CAD-based illustration; finish is representative.

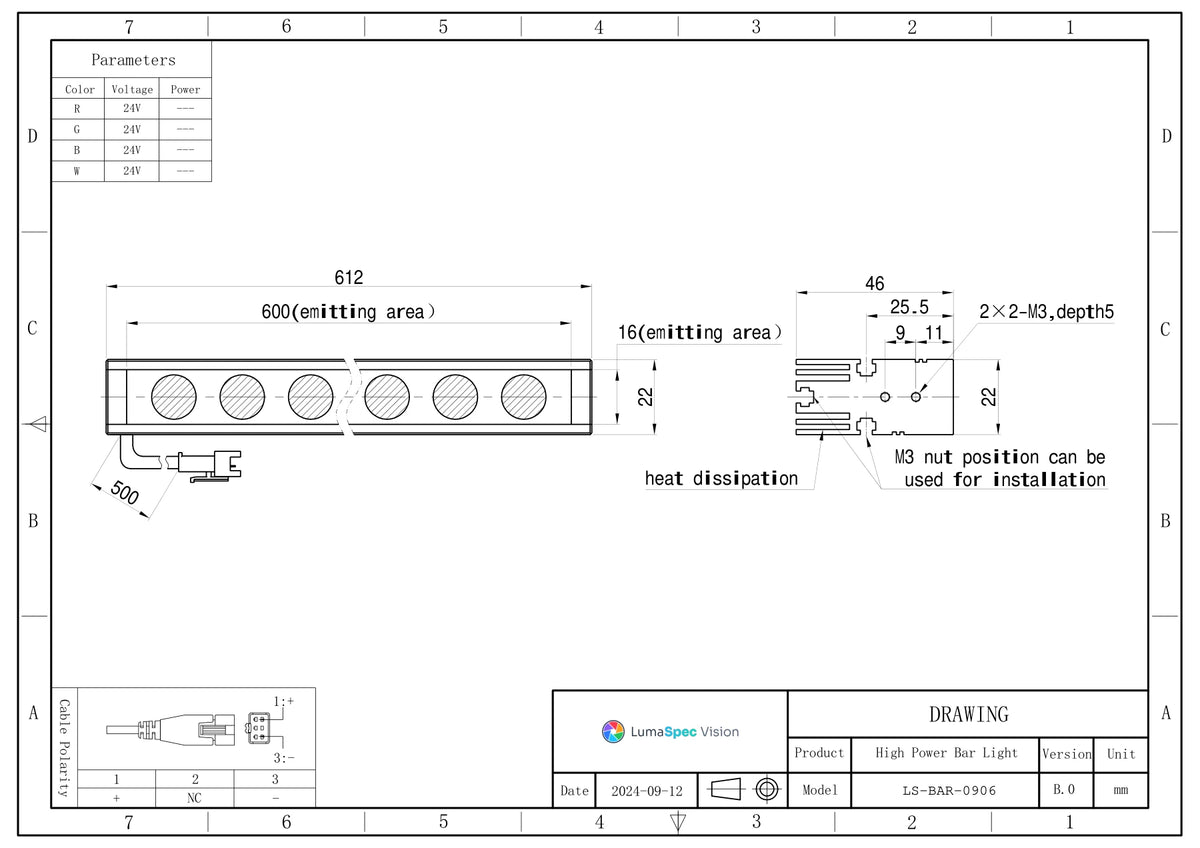

  • LS-BAR-0906 dimensions (mm)

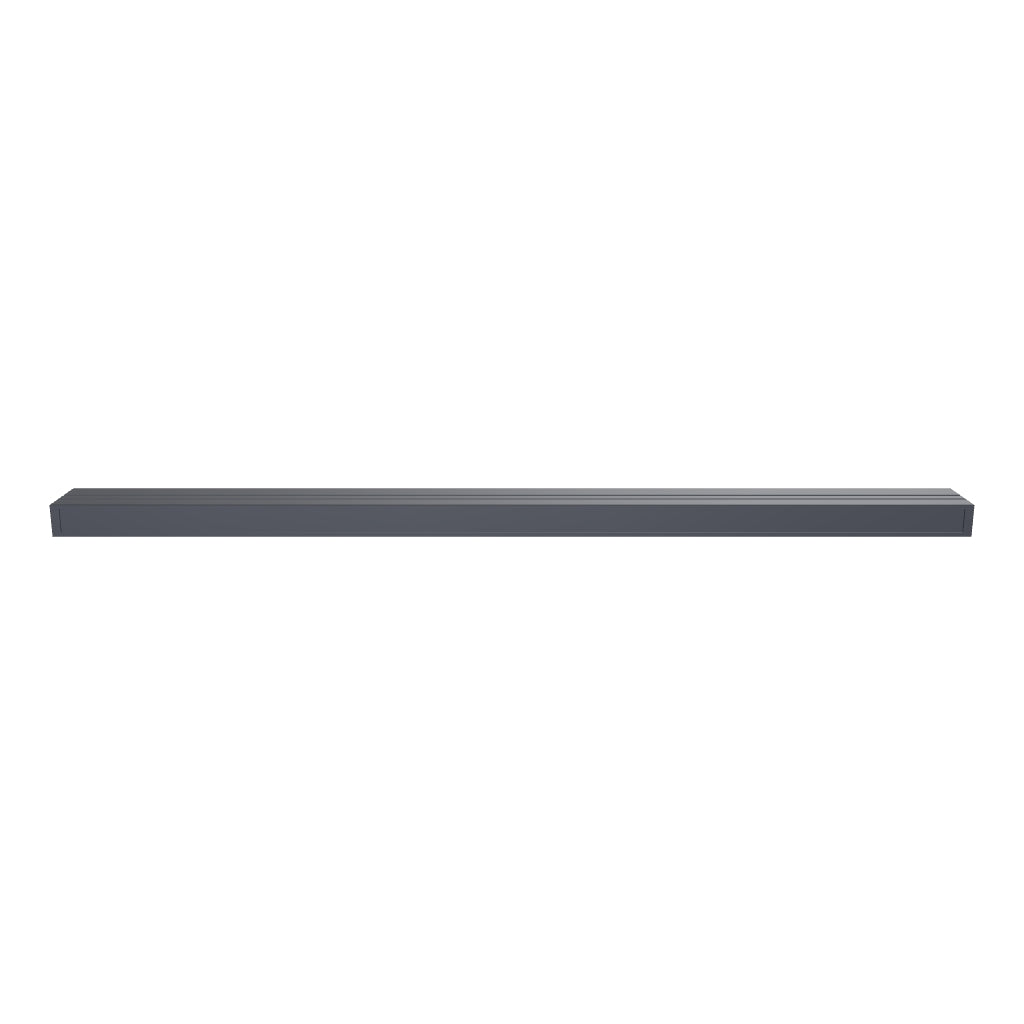

  • LS-BAR-0906 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Bar lights

600 x 16 mm High-Power LED Bar Light (LS-BAR-0906)

Model LS-BAR-0906

  • ColourRed, Green, Blue, White
  • Emitting area600x16 mm
  • Size612x22x46 mm
  • Voltage24 V
$819.00

Ships in 2-3 weeks

0.95 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

600 x 16 mm High-Power LED Bar Light (LS-BAR-0906)LS-BAR-0906

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

600 x 16 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0906

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows1
Emitting area (mm)600x16
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R/G/B/W (W)18.2

Mechanical

Outer size L x W x H (mm)612x22x46
Shipping weight (estimated)0.95 kg

Mounting and drawing data

drawing: overall length A+12, 22 high x 46 deep (finned), 16 emitting width, 4-M3 depth 5 holes (9 / 11 / 25.5), M3 nut (T-slot) mounting, 500 mm cable

LS-BAR-0906

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BAR-0906 — Bar lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm)
600x16
Voltage (V)
24
Outer size L x W x H (mm)
612x22x46

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
