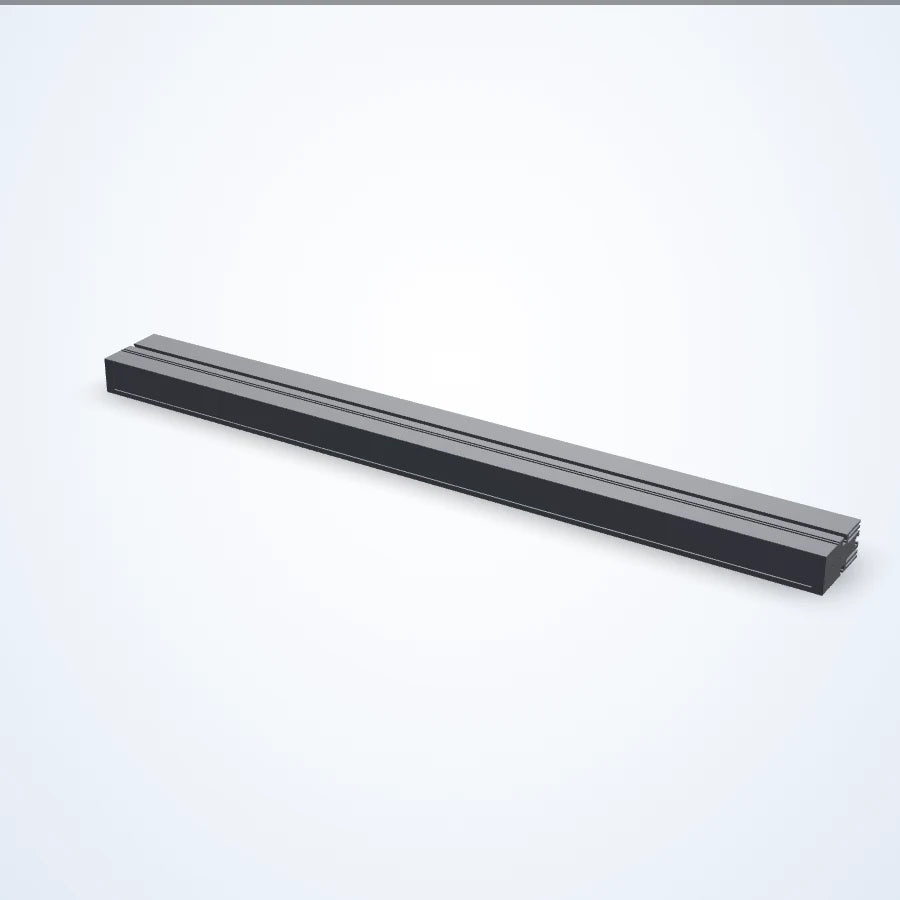

LS-BAR-0904 3D render
  • LS-BAR-0904 3D render

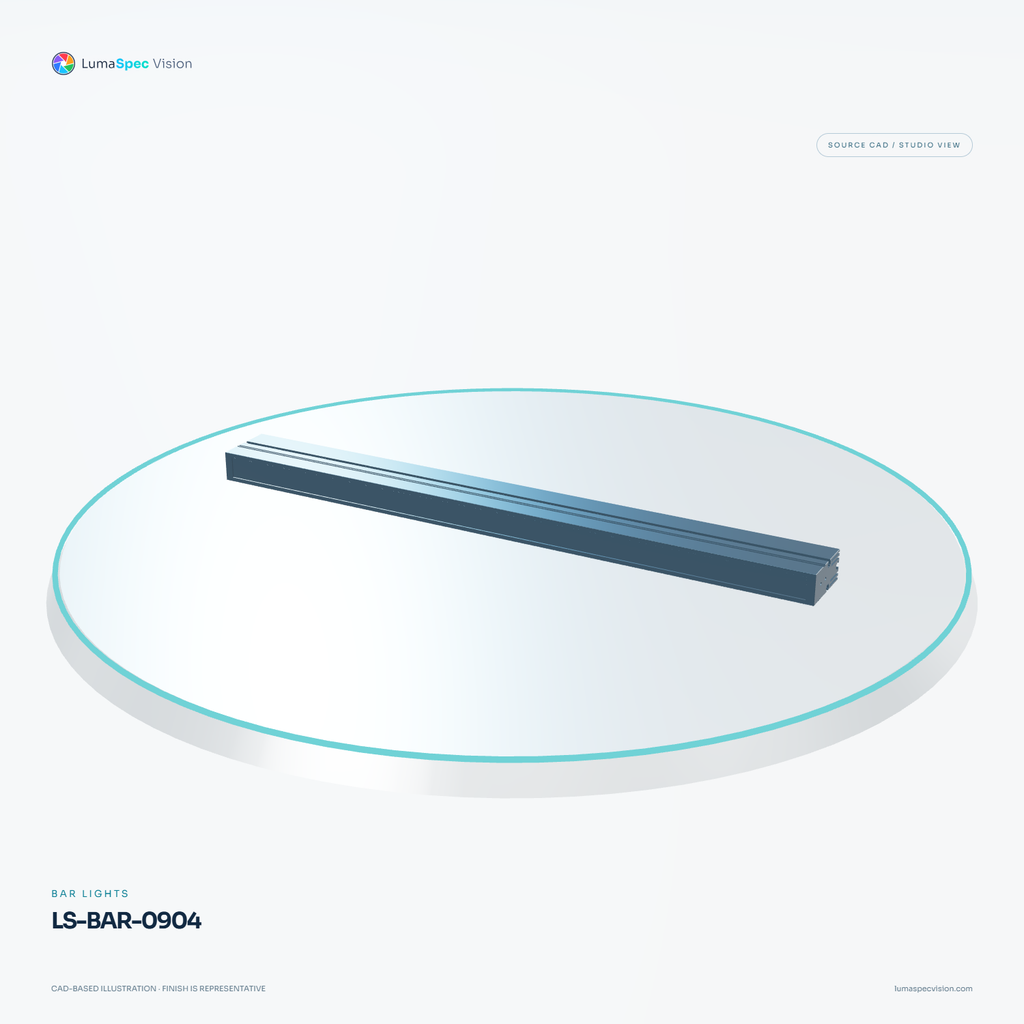

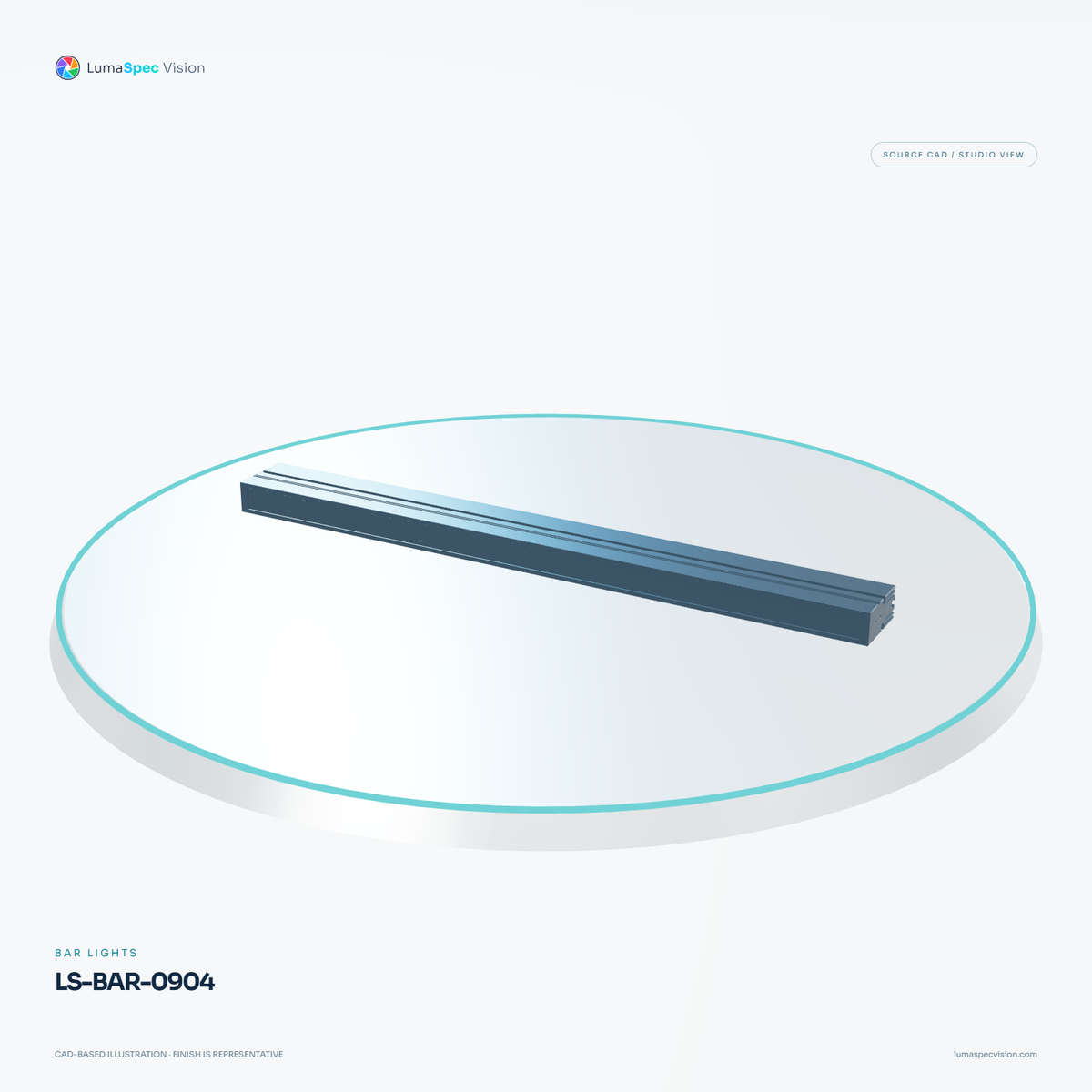

  • LS-BAR-0904 — Bar lights, 3D view 1. CAD-based illustration; finish is representative.

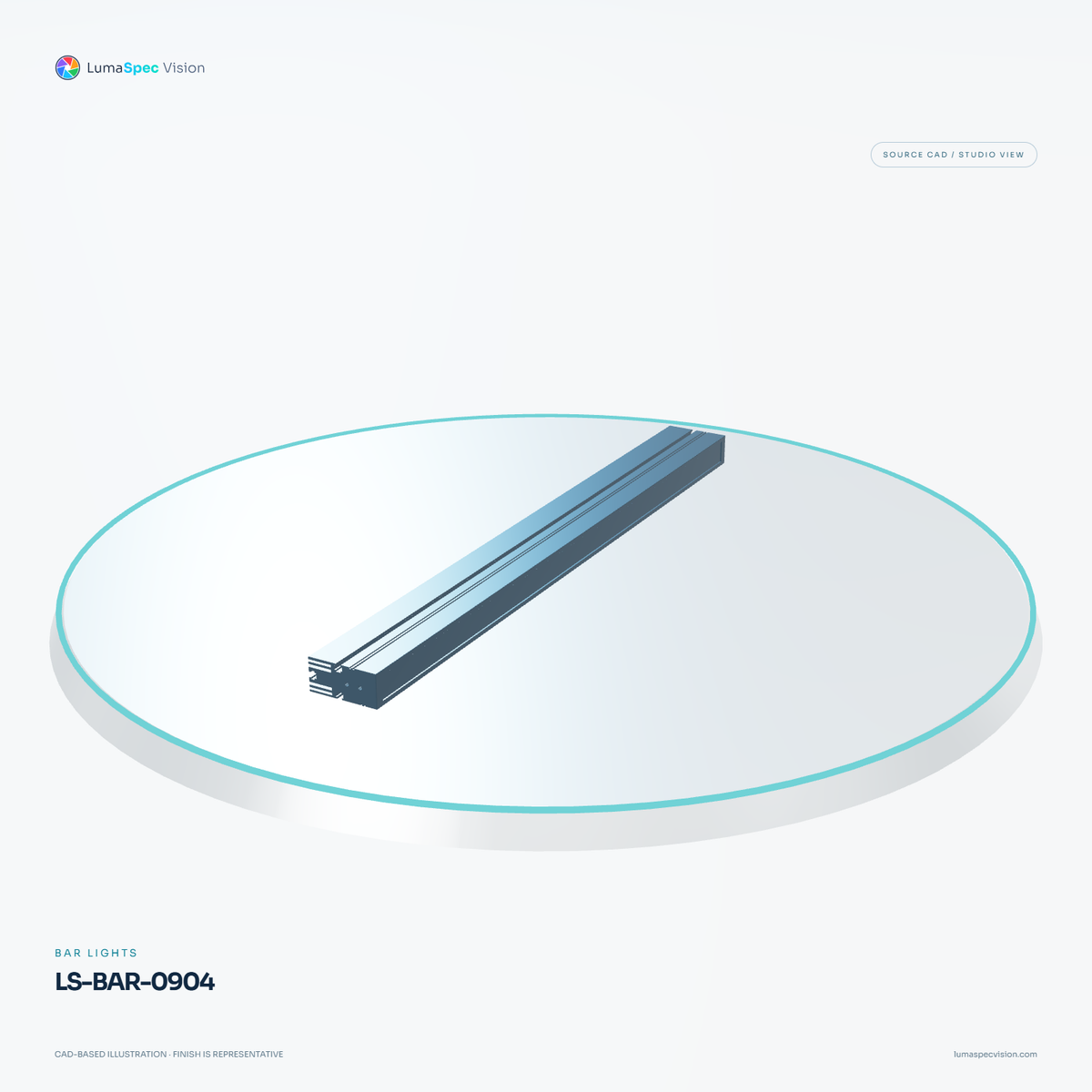

  • LS-BAR-0904 — Bar lights, 3D view 2. CAD-based illustration; finish is representative.

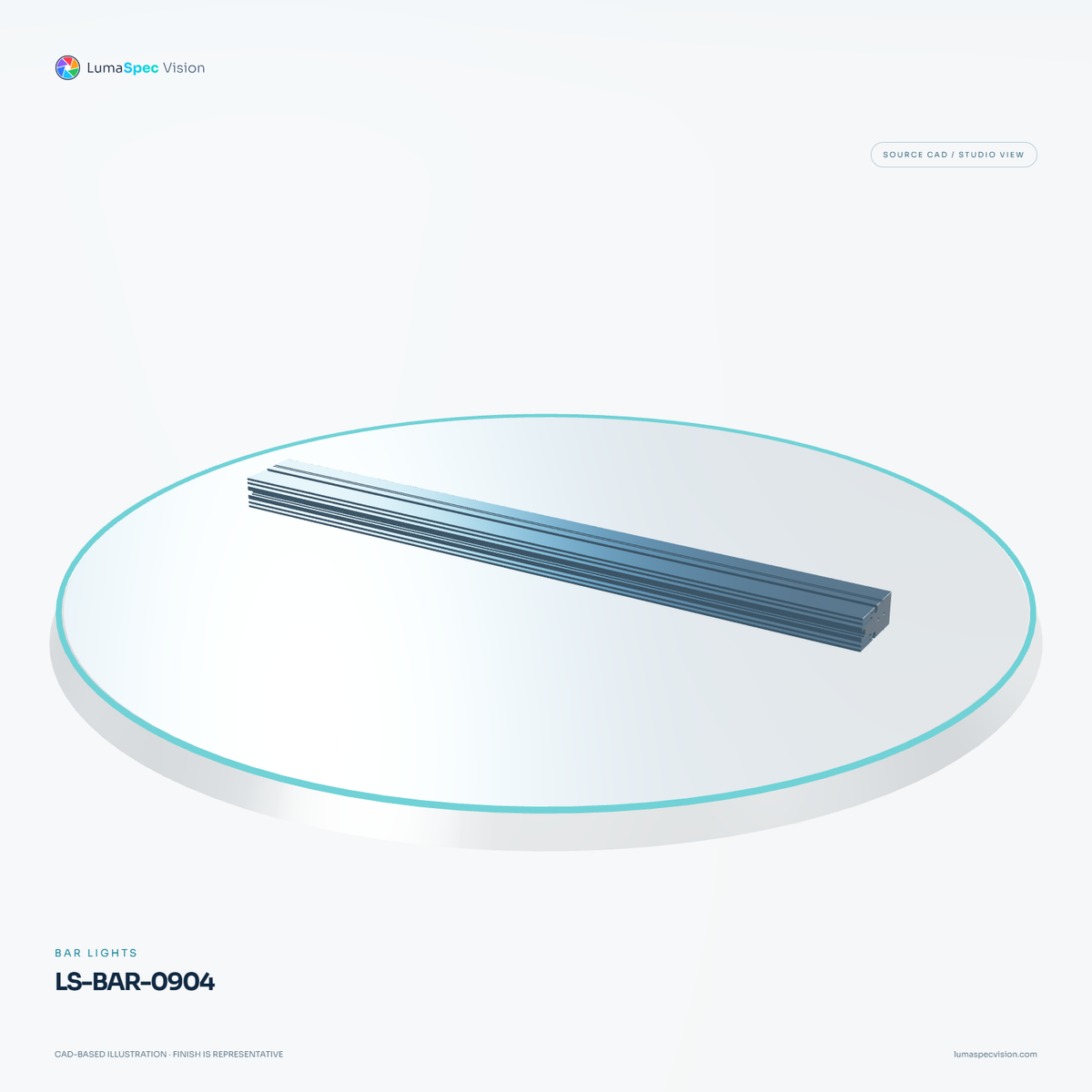

  • LS-BAR-0904 — Bar lights, 3D view 3. CAD-based illustration; finish is representative.
  • LS-BAR-0904 dimensions (mm)

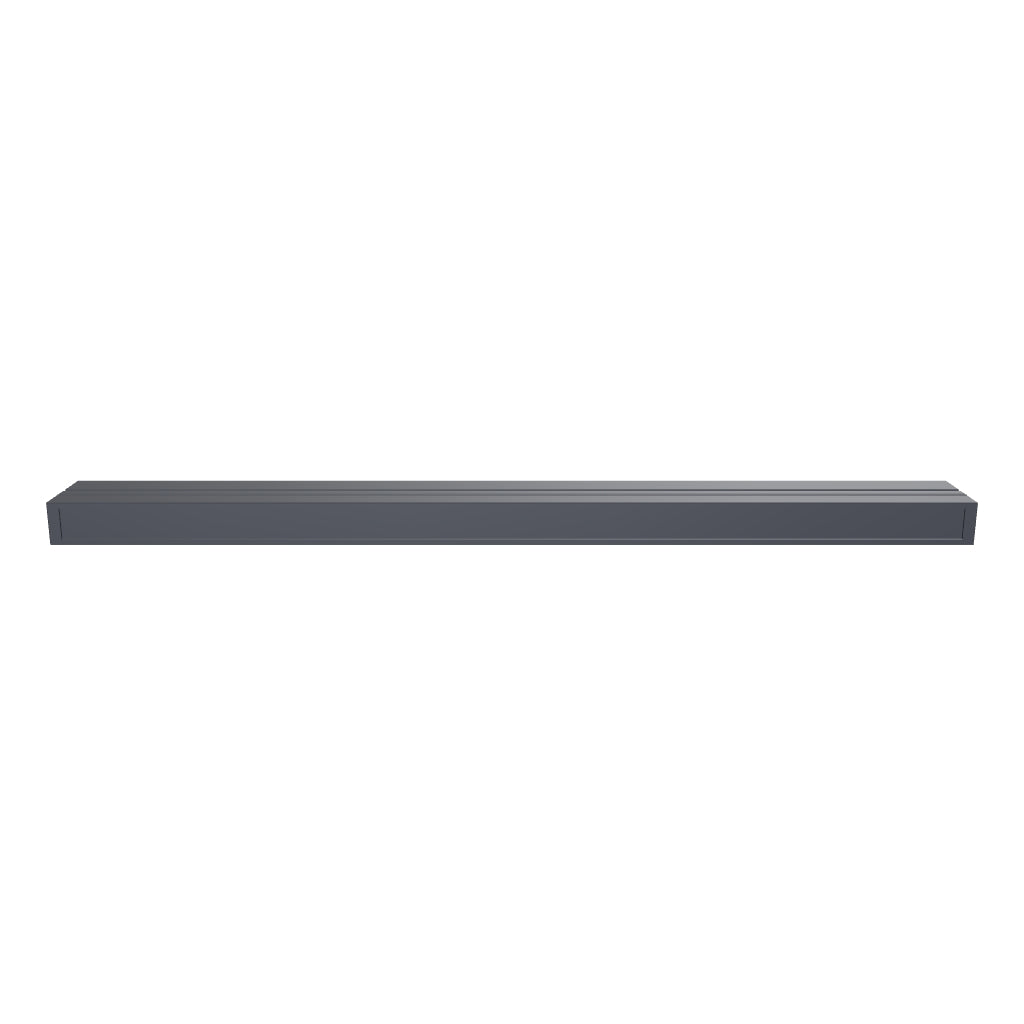

  • LS-BAR-0904 3D model

CAD-based illustration of this model. Finish and light colour are representative; refer to the specifications and dimensioned drawing.

Bar lights

450 x 16 mm High-Power LED Bar Light (LS-BAR-0904)

Model LS-BAR-0904

  • ColourRed, Green, Blue, White
  • Emitting area450x16 mm
  • Size462x22x46 mm
  • Voltage24 V
$649.00

Ships in 2-3 weeks

0.75 kg shipping weight

Color

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

450 x 16 mm High-Power LED Bar Light (LS-BAR-0904)LS-BAR-0904

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

450 x 16 mm High-Power LED Bar Light. High-power LED bar light for long working distances, high-speed applications and applications requiring high brightness. Uses high-power LEDs for long-distance, high-brightness lighting and supports multiple installation methods.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-BAR-0904

Interfaces and I/O

Cable length500 mm (per dimension drawings)

Light

LED rows1
Emitting area (mm)450x16
ColoursRed, Green, Blue, White
LED colour options (legend)R / G / B / W / IR / UV
Colours shown per modelR, G, B, W

Electrical

Voltage (V)24
Power R/G/B/W (W)13.7

Mechanical

Outer size L x W x H (mm)462x22x46
Shipping weight (estimated)0.75 kg

Mounting and drawing data

drawing: overall length A+12, 22 high x 46 deep (finned), 16 emitting width, 4-M3 depth 5 holes (9 / 11 / 25.5), M3 nut (T-slot) mounting, 500 mm cable

LS-BAR-0904

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-BAR-0904 — Bar lights, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Emitting area (mm)
450x16
Voltage (V)
24
Outer size L x W x H (mm)
462x22x46

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
