360° inspection lenses

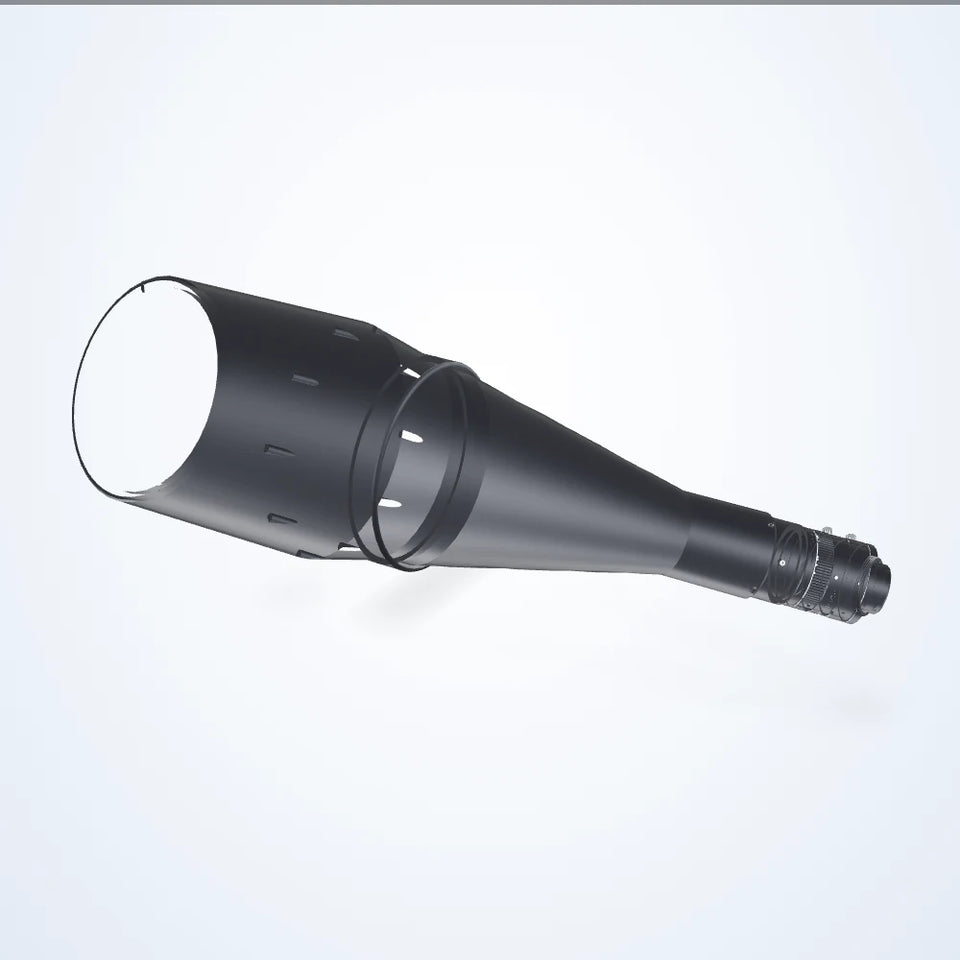

360° inspection lens series, C-mount (S08)
- 5 models
- from $6,419.00
- Series LS-TCL-S08
The 360° inspection lens series, C-mount (S08) is a range of 5 360° inspection lenses from LumaSpec Vision, from $6,419.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Working distance
- Under 65 mm
- Sensor format
- 1/2.5" and smaller, 1/2", 2/3"
All 5 models in the 360° inspection lens series, C-mount (S08)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0067 | 1/2" | 80 mm | 381.6 x 116 x 116 mm | 10 mm Ø x 5 mm | $6,419.00quote | View |
| LS-TCL-0069 | 1/3" | 85 mm | 385.3 x 116 x 116 mm | 7.5 mm Ø x 5 mm | $6,419.00quote | View |
| LS-TCL-0070 | 2/3" | 80 mm | 381.1 x 116 x 116 mm | 15 mm Ø x 5 mm | $6,419.00quote | View |
| LS-TCL-0066 | 1/3" | 80 mm | 451.5 x 157 x 157 mm | 20 mm Ø x 60 mm | $7,879.00quote | View |
| LS-TCL-0068 | 1/3" | 80 mm | 455.2 x 157 x 157 mm | 20 mm Ø x 60 mm | $7,879.00quote | View |
