360° inspection lens, 2/3", C-mount (LS-TCL-0070)

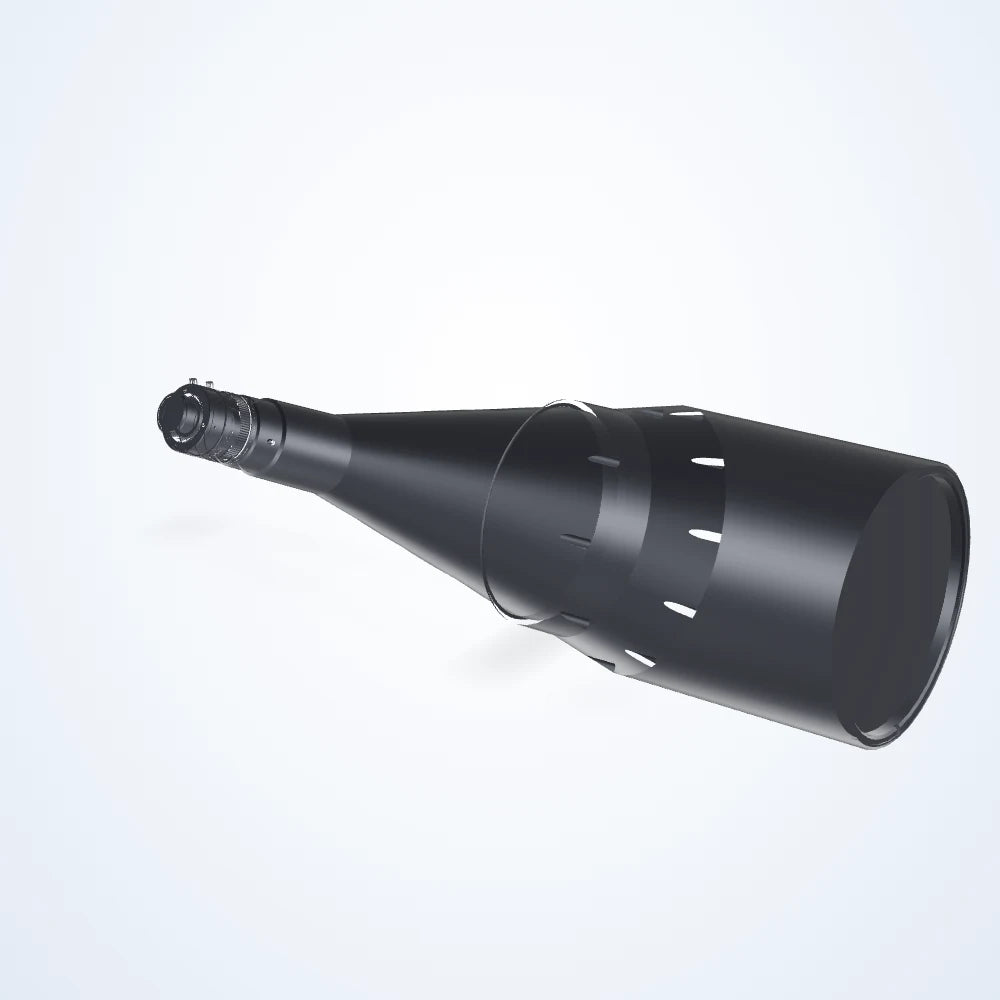

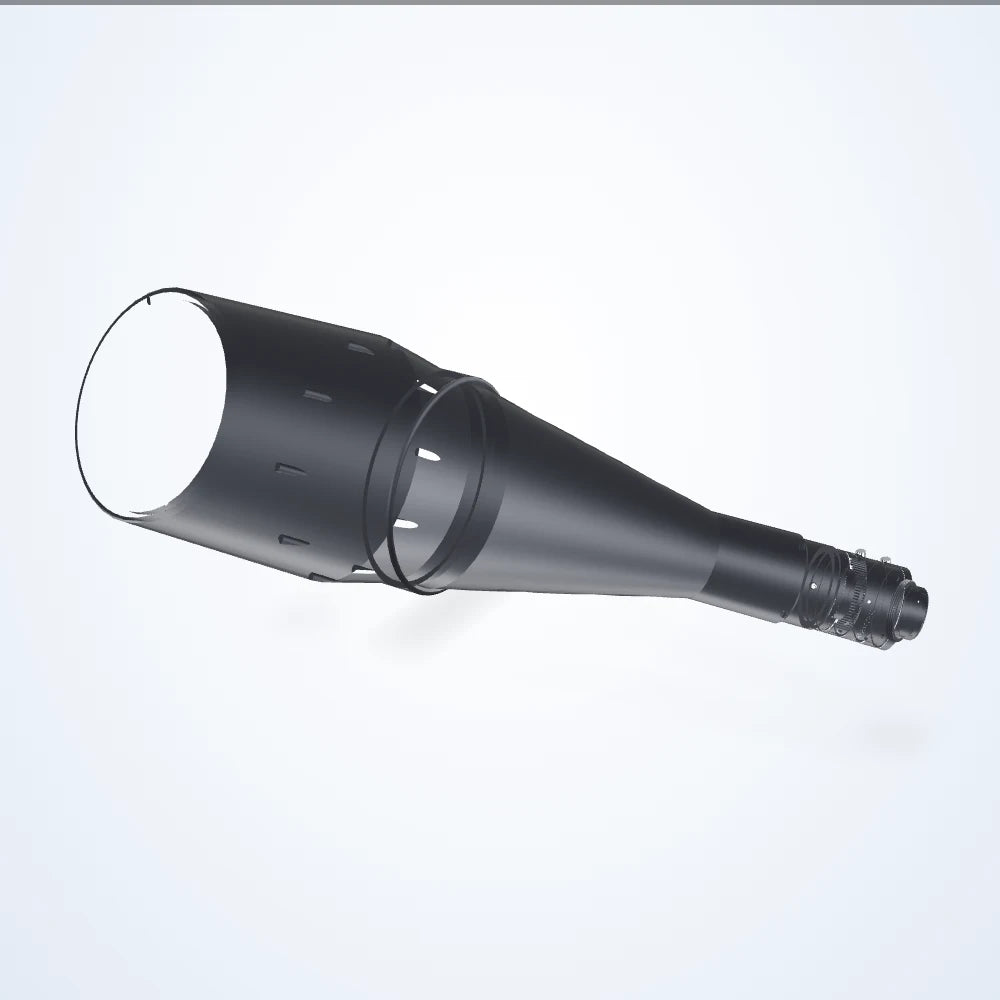

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 2/3", C-mount, 381.1 x 116 mm (LS-TCL-0070)

Model LS-TCL-0070

MountC-mount
Sensor2/3"
Working distance20 mm
Sensor format2/3"

$6,419.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Special inspection optics that image the sides or inner walls of a part in one shot.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0070
Aov	24 °
FOV @ 1/3″	15 mm Ø x 5 mm
Lens type	Pericentric
Working ƒ/n	f/16

Optics

Filter thread	No Filter Threads
Image circle	6.6 mm
Working distance @ fov maximum	20 mm
Working distance @ fov minimum	80 mm

Sensor and imaging

Sensor format	2/3"

Environment and compliance

Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Mechanical

Mount	C-mount
Dimensions approximate	381.1 x 116 x 116 mm
Weight	2952 Grams
