360° inspection lens, 1/3", C-mount (LS-TCL-0069)

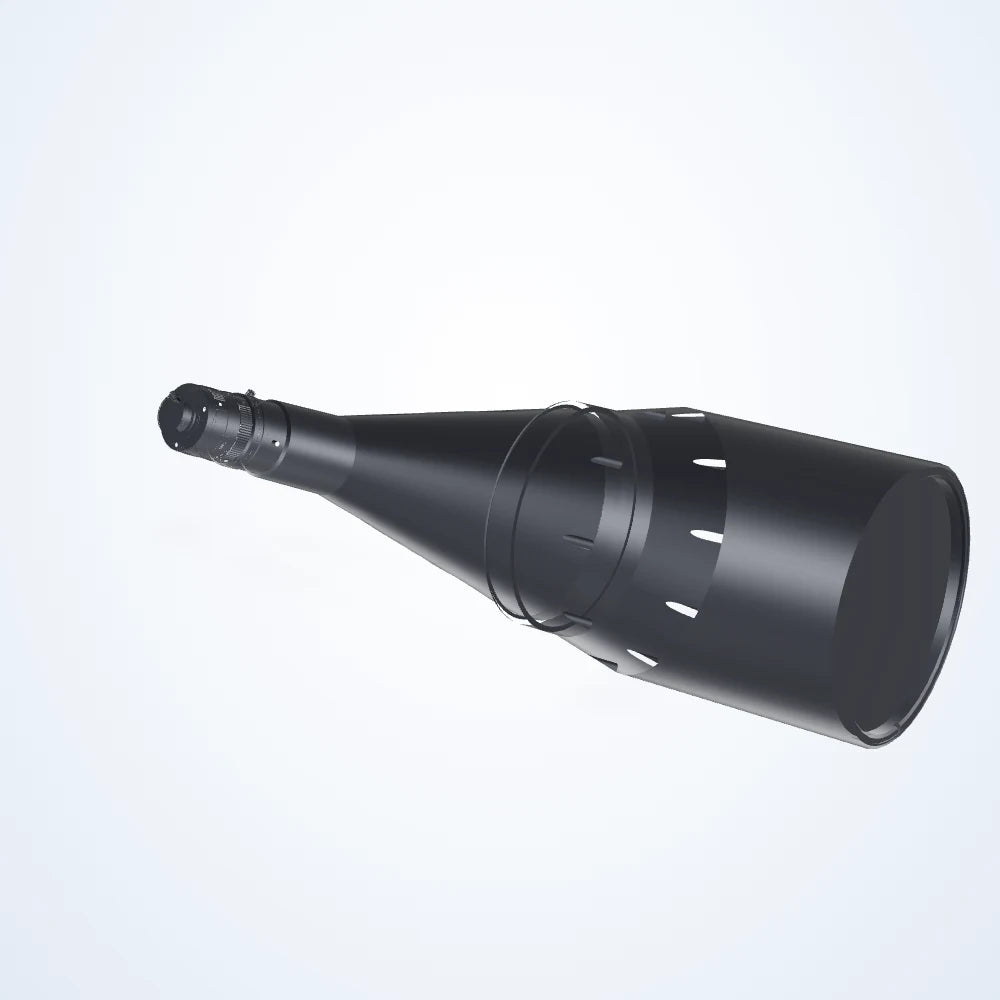

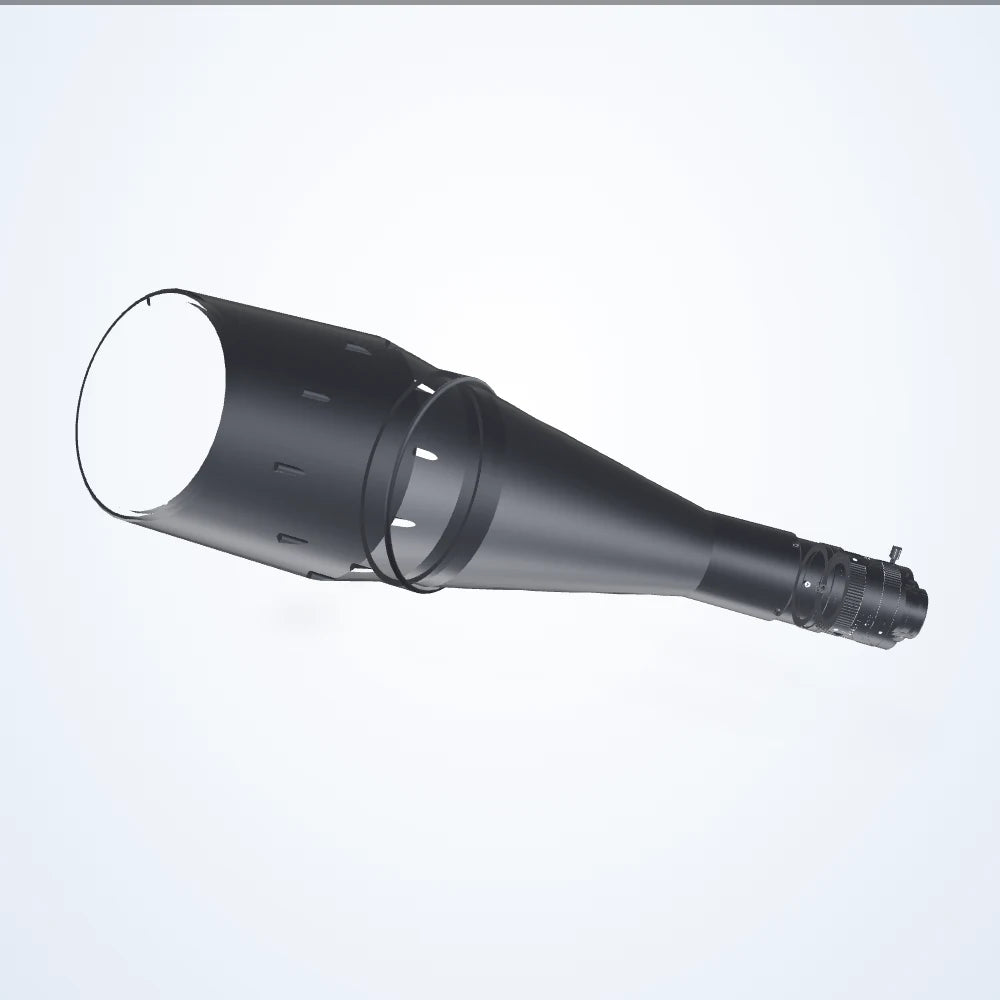

Rendered illustration: the actual product may differ in appearance.

360° inspection lenses

360° inspection lens, 1/3", C-mount, 385.3 x 116 mm (LS-TCL-0069)

Model LS-TCL-0069

MountC-mount
Sensor1/3"
Working distance20 mm
Sensor format1/3"

$6,419.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Special inspection optics that image the sides or inner walls of a part in one shot.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0069
Aov	24 °
FOV @ 1/3″	7.5 mm Ø x 5 mm
Lens type	Pericentric
Working ƒ/n	f/8

Optics

Filter thread	No Filter Threads
Image circle	3.6 mm
Working distance @ fov maximum	20 mm
Working distance @ fov minimum	85 mm

Sensor and imaging

Sensor format	1/3"

Environment and compliance

Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Mechanical

Mount	C-mount
Dimensions approximate	385.3 x 116 x 116 mm
Weight	2955 Grams

Other models in the 360° inspection lens series, C-mount (S08) series

See all 5 models

Model	Size / key data	Price	Availability	Link
LS-TCL-0067	C-mount · 1/2"	$6,419.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0070	C-mount · 2/3"	$6,419.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0066	C-mount · 1/3"	$7,879.00 Quote	Lead time confirmed with your quote	View
LS-TCL-0068	C-mount · 1/3"	$7,879.00 Quote	Lead time confirmed with your quote	View
