360° inspection lenses

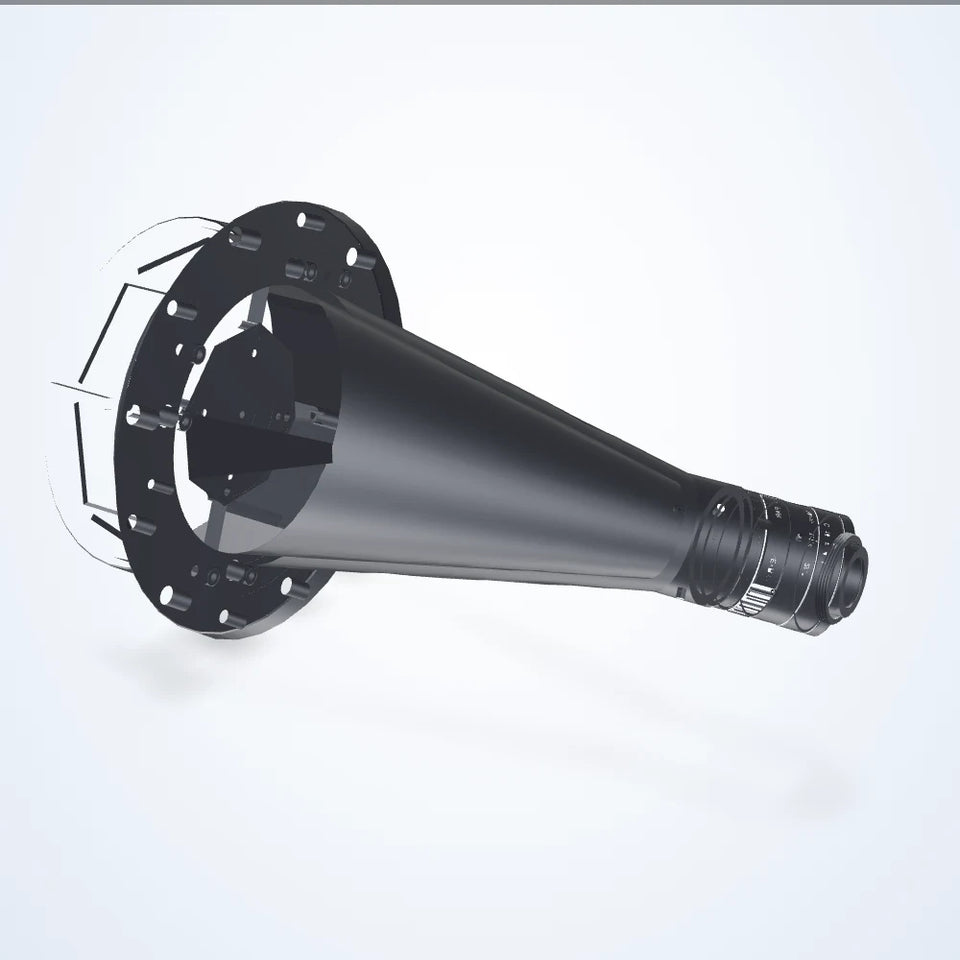

360° inspection lens series, C-mount (S07)
- 3 models
- from $5,689.00
- Series LS-TCL-S07
The 360° inspection lens series, C-mount (S07) is a range of 3 360° inspection lenses from LumaSpec Vision, from $5,689.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Working distance
- Under 65 mm
- Sensor format
- 1/2.5" and smaller, 1/2", 2/3"
All 3 models in the 360° inspection lens series, C-mount (S07)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0063 | 1/2" | 231.8 x 117 x 117 mm | 4.8 mm | f/6 | $5,689.00quote | View |
| LS-TCL-0064 | 1/3" | 232.3 x 117 x 117 mm | 3.6 mm | f/4 | $5,689.00quote | View |
| LS-TCL-0065 | 2/3" | 236.1 x 117 x 117 mm | 6.6 mm | f/8 | $5,689.00quote | View |
