360° inspection lenses

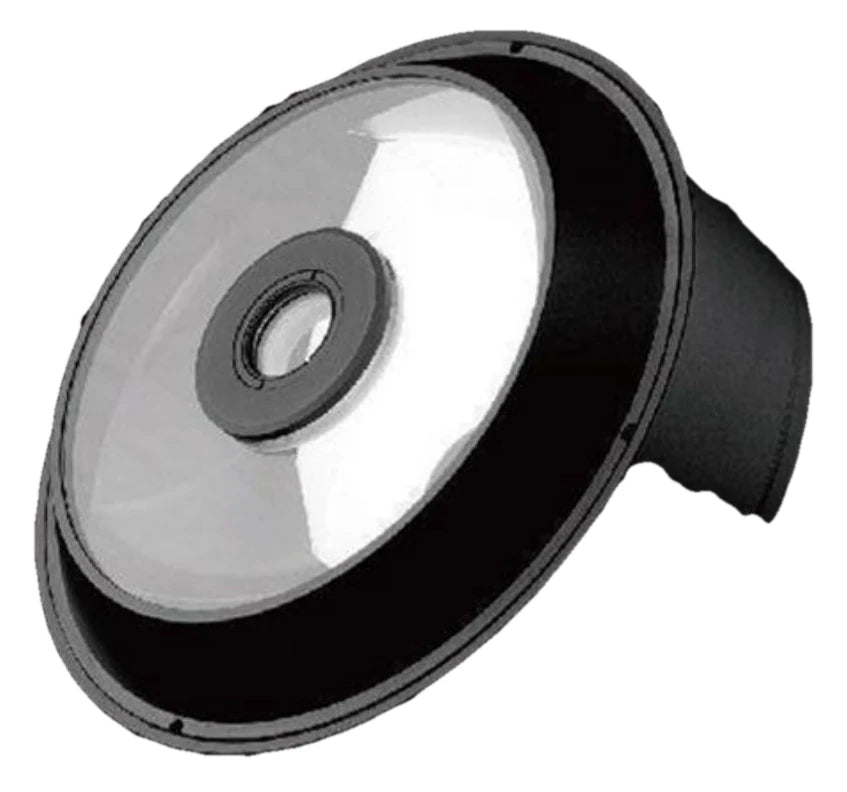

360° imaging system (outer surface)
- 5 models
- from $619.00
- Series LS-RF-OUT
The 360° imaging system (outer surface) is a range of 5 360° inspection lenses from LumaSpec Vision, from $619.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 1/1.8", C-Mount, 1/3", C-Mount, 2/3", C-Mount
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Working distance
- Under 65 mm
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3"
Features
- Compact design and high resolution
- 360° side view imaging for small objects
- WD optional: 19mm-46.2mm, 19mm-45.4mm, 14mm-48.2mm, 9mm-45.4mm, 9mm-46.5mm
- Suitable for inspecting drug containers, plastic caps, preforms, bottlenecks, screws and other threaded objects
- Min. object diameter 4.5mm (outer surface)
Typical uses
- Bottle cap inspection
- Coil outer wall detection
- Medicine bottle detection
- Outer ring character detection
All 5 models in the 360° imaging system (outer surface)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-RF3601A | 1/3", C-Mount | 1/3" | 19-46.2 | F6.0-16 | $619.00 | View |
| LS-RF3602A | 1/1.8", C-Mount | 1/1.8" | 9-45.4 | F8.0-16 | $619.00 | View |
| LS-RF3603A | 2/3", C-Mount | 2/3" | 14-48.2 | F8.0-16 | $619.00 | View |
| LS-RF3604A | 1/1.8", C-Mount | 1/1.8" | 9-50 | F8.0-16 | $619.00 | View |
| LS-RF3605A | 1/3", C-Mount | 1/3" | 9-48 | F6.0-16 | $619.00 | View |
