Thermal, SWIR & UV lenses

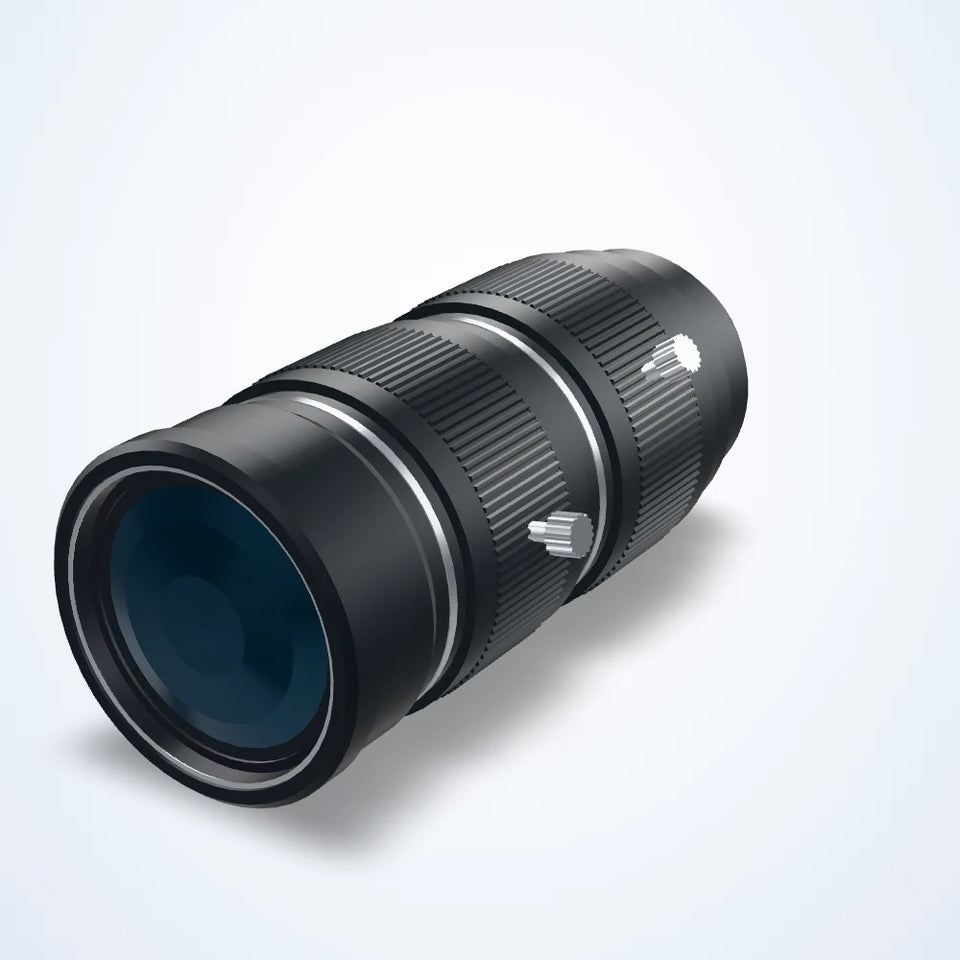

SWIR lenses (LS-SWL-S03)
- 20 models
- from $320.00
- Series LS-SWL-S03
The SWIR lenses (LS-SWL-S03) is a range of 20 thermal, swir & uv lenses from LumaSpec Vision, from $320.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 6 mm, 1", C-mount, 8 mm, 1", C-mount, 8.32 mm, 1", C-mount, 12 mm, 1", C-mount, 16 mm, 1", C-mount, 25 mm, 1", C-mount, 35 mm, 1", C-mount, 50 mm, 1", C-mount, 75 mm, 1", C-mount, 200 mm, 1", C-mount, 200 mm, 1", F-mount, 200 mm, 1", M42, 300 mm, 1", C-mount, 400 mm, 1", C-mount
- Mount
- M42, C-mount, F-mount
- Image circle
- 11-16 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm, 100 mm +
- Sensor format
- 1"
All 20 models in the SWIR lenses (LS-SWL-S03)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SWL-0222 | 12 mm, 1", C-mount | 1" | 12 mm | 0.3- ∞ | $320.00 | View |
| LS-SWL-0223 | 12 mm, 1", C-mount | 1" | 12 mm | 0.5-0.85 m | $460.00 | View |
| LS-SWL-0224 | 16 mm, 1", C-mount | 1" | 16 mm | 0.3- ∞ | $460.00 | View |
| LS-SWL-0225 | 25 mm, 1", C-mount | 1" | 25 mm | 0.3- ∞ | $460.00 | View |
| LS-SWL-0228 | 35 mm, 1", C-mount | 1" | 35 mm | 0.3- ∞ | $460.00 | View |
| LS-SWL-0230 | 50 mm, 1", C-mount | 1" | 50 mm | 0.5- ∞ | $460.00 | View |
| LS-SWL-0220 | 8 mm, 1", C-mount | 1" | 8 mm | 0.1- ∞ | $460.00 | View |
| LS-SWL-0226 | 25 mm, 1", C-mount | 1" | 25 mm | 0.3- ∞ | $605.00 | View |
| LS-SWL-0227 | 25 mm, 1", C-mount | 1" | 25 mm | 0.3- ∞ | $660.00 | View |
| LS-SWL-0218 | 6 mm, 1", C-mount | 1" | 6 mm | 0.1- ∞ | $660.00 | View |
| LS-SWL-0229 | 35 mm, 1", C-mount | 1" | 35 mm | 0.3- ∞ | $715.00 | View |
| LS-SWL-0231 | 50 mm, 1", C-mount | 1" | 50 mm | 0.5- ∞ | $715.00 | View |
| LS-SWL-0232 | 75 mm, 1", C-mount | 1" | 75 mm | 0.265-0.48 | $870.00 | View |
| LS-SWL-0221 | 8.32 mm, 1", C-mount | 1" | 8.32 mm | 0.3- ∞ | $970.00 | View |
| LS-SWL-0219 | 6 mm, 1", C-mount | 1" | 6 mm | 0.1 | $1,800.00 | View |
| LS-SWL-0235 | 200 mm, 1", C-mount | 1'' | 200 mm | 10m- ∞ | $6,635.00 | View |
| LS-SWL-0236 | 200 mm, 1", M42 | 1'' | 200 mm | $6,635.00 | View | |
| LS-SWL-0237 | 200 mm, 1", F-mount | 1'' | 200 mm | $6,635.00 | View | |
| LS-SWL-0238 | 300 mm, 1", C-mount | 1" CCD/CMOS | 300 mm | 10- ∞ | $9,450.00 | View |
| LS-SWL-0240 | 400 mm, 1", C-mount | 1" | 400 mm | 20m- ∞ | $10,000.00 | View |
