Thermal, SWIR & UV lenses

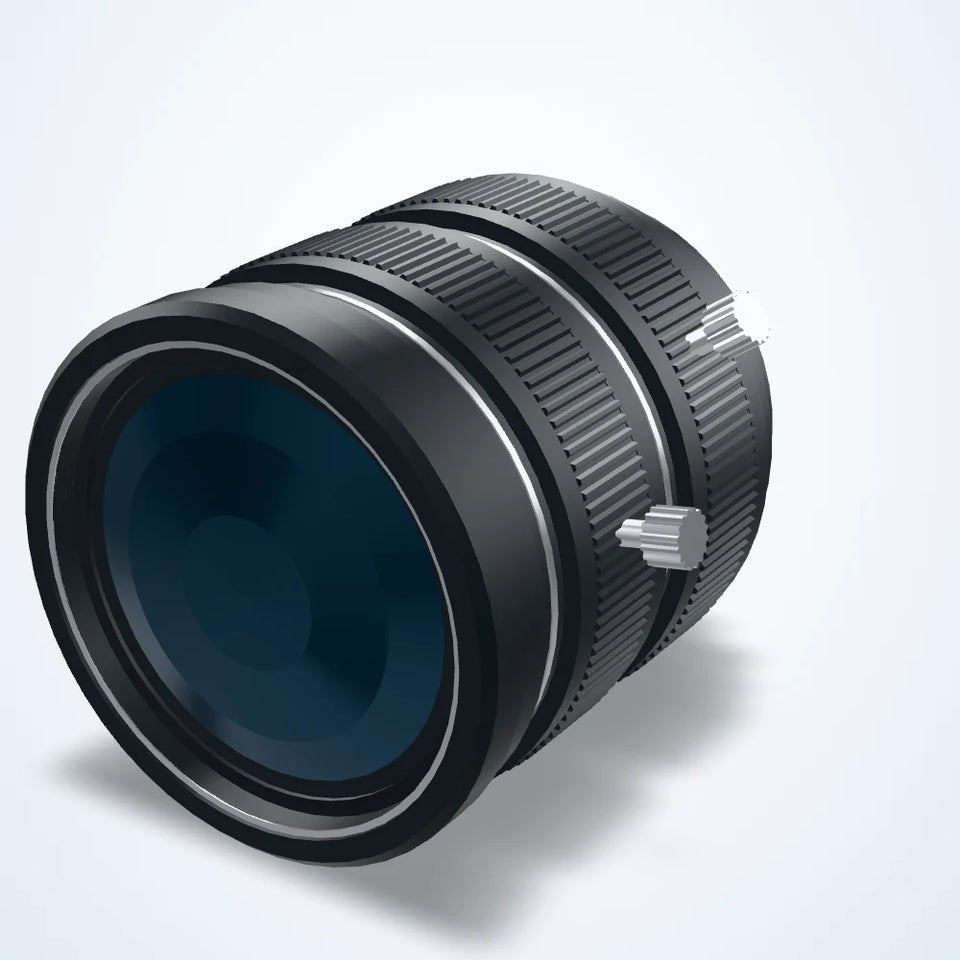

SWIR lenses (LS-SWL-S06)
- 6 models
- from $400.00
- Series LS-SWL-S06
The SWIR lenses (LS-SWL-S06) is a range of 6 thermal, swir & uv lenses from LumaSpec Vision, from $400.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8.5 mm, 2/3", C-mount, 12.5 mm, 2/3", C-mount, 16.3 mm, 2/3", C-mount, 25.9 mm, 2/3", C-mount, 35 mm, 2/3", C-mount, 50 mm, 2/3", C-mount
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
All 6 models in the SWIR lenses (LS-SWL-S06)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SWL-0249 | 12.5 mm, 2/3", C-mount | 12.5 mm | 0.2- ∞ | F1.4 | $400.00 | View |
| LS-SWL-0250 | 16.3 mm, 2/3", C-mount | 16.3 mm | 0.2- ∞ | F1.4-22 | $400.00 | View |
| LS-SWL-0251 | 25.9 mm, 2/3", C-mount | 25.9 mm | 0.2- ∞ | F1.4-16 | $400.00 | View |
| LS-SWL-0252 | 35 mm, 2/3", C-mount | 35 mm | 0.15- ∞ | F1.4 | $400.00 | View |
| LS-SWL-0253 | 50 mm, 2/3", C-mount | 50 mm | 0.4- ∞ | F2.0 | $400.00 | View |
| LS-SWL-0248 | 8.5 mm, 2/3", C-mount | 8.5 mm | 0.2- ∞ | F1.4 | $400.00 | View |
