Thermal, SWIR & UV lenses

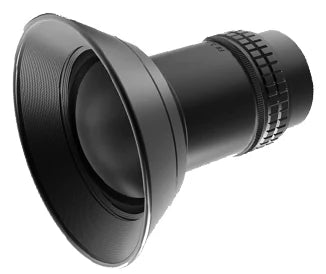

UV lenses (LS-SWL-S10)
- 8 models
- from $479.00
- Series LS-SWL-S10
The UV lenses (LS-SWL-S10) is a range of 8 thermal, swir & uv lenses from LumaSpec Vision, from $479.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 9.2 mm, 5 MP, C-mount, 12 mm, 1/3", EF/C-mount, 35-39 mm, EF/C-mount, 47.6-50.3 mm, C-mount, 60 mm, 2", EF/C-mount, 80 mm, EF/C-mount, 80-640 mm, EF/C-mount, 100 mm, F/C-mount
- Type
- UV
- Mount
- C-mount, EF-mount, F-mount
- Resolution
- 5 MP
- Image circle
- Up to 8 mm, 8-11 mm, 16-22 mm, 22-30 mm, 30-45 mm, 60-90 mm
- Focal length
- 6-12 mm, 12-25 mm, 50-100 mm, 100 mm +, Varifocal / zoom
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 1.1" - 1.2", 4/3" - APS-C, APS-H / Full frame, Medium / large
Features
- High definition
- Motorized zoom focus
- Canon EF / C mount
- Wide / tele in one
- Large format 2"
- MOD 100 mm
- Big aperture F2.0
Typical uses
- Security surveillance
- Forest fire protection
- Industrial inspection, CCTV surveillance, high-speed train pantograph, electric power patrol
All 8 models in the UV lenses (LS-SWL-S10)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-SWL-0274 | 9.2 mm, 5 MP, C-mount | 9.2 mm | 0.2 m to infinity | F3.6 | $479.00 | View |
| LS-SWL-0273 | 12 mm, 1/3", EF/C-mount | 12 mm | 0.5 m to infinity | F3.8 | $499.00 | View |
| LS-SWL-0270 | 35-39 mm, EF/C-mount | 35-39 mm | 150 mm to 10 m | F5.6 | $639.00 | View |
| LS-SWL-0272 | 47.6-50.3 mm, C-mount | 47.6-50.3 mm | 160 mm to 10 m | F5.6 | $709.00 | View |
| LS-SWL-0269 | 60 mm, 2", EF/C-mount | 60 mm | 100 mm to 10 m | F3.8 | $779.00 | View |
| LS-SWL-0271 | 80 mm, EF/C-mount | 80 mm (63 mm with close-up lens) | 137.5 mm to infinity | F3.8 | $899.00 | View |
| LS-SWL-0275 | 80-640 mm, EF/C-mount | 80-640 mm | 5mm to infinity (as printed) | F4.5 | $989.00 | View |
| LS-SWL-0268 | 100 mm, F/C-mount | 100 mm | 300 mm to 10 m | F2 | $1,019.00 | View |
