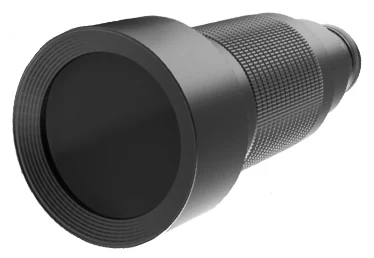

80-640 mm, EF/C-mount UV Lens (LS-SWL-0275)
  • 80-640 mm, EF/C-mount UV Lens (LS-SWL-0275)

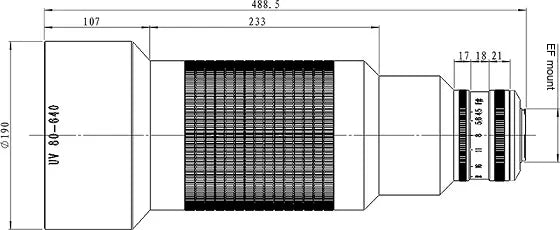

  • LS-SWL-0275 dimensions (mm)

Thermal, SWIR & UV lenses

80-640 mm, EF/C-mount UV Lens (LS-SWL-0275)

Model LS-SWL-0275

  • Focal length80-640 mm
  • MountEF-mount
  • Sensor1.2"
  • Working distance5mm to infinity (as printed)
  • ApertureF4.5
$989.00

Ships in 2-3 weeks

0.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

80-640 mm, EF/C-mount UV Lens (LS-SWL-0275)LS-SWL-0275

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

80-640 mm, EF/C-mount UV Lens. 80-640 mm, image circle dia. it sits in our UV Lenses category). At a glance: working distance 5mm to infinity (as printed); focal length 80-640 mm; image format / field image circle dia. 20 mm; aperture F4.5; mount Canon EF or C mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0275
Image format / fieldimage circle dia. 20 mm
Zoom controlMotorized (electric)

Optics

Focal length80-640 mm
ApertureF4.5
Working distance5mm to infinity (as printed)
Distortion≤1%
MTF50 lp/mm > 0.3
Iris controlManual
Focus controlMotorized (electric)

Light

Wavelength250-380 nm

Environment and compliance

Operating temperature-40 to 60 °C

Mechanical

MountCanon EF or C mount
Size (from drawing)dia. 190 x 488.5 mm
Shipping weight (estimated)0.45 kg

Other models in the UV lenses (LS-SWL-S10) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-SWL-0274 9.2 mm, 5 MP, C-mount $479.00 Ships in 2-3 weeks View
LS-SWL-0273 12 mm, 1/3", EF/C-mount $499.00 Ships in 2-3 weeks View
LS-SWL-0270 35-39 mm, EF/C-mount $639.00 Ships in 2-3 weeks View
LS-SWL-0272 47.6-50.3 mm, C-mount $709.00 Ships in 2-3 weeks View
LS-SWL-0269 60 mm, 2", EF/C-mount $779.00 Ships in 2-3 weeks View
LS-SWL-0271 80 mm, EF/C-mount $899.00 Ships in 2-3 weeks View
LS-SWL-0268 100 mm, F/C-mount $1,019.00 Ships in 2-3 weeks View
