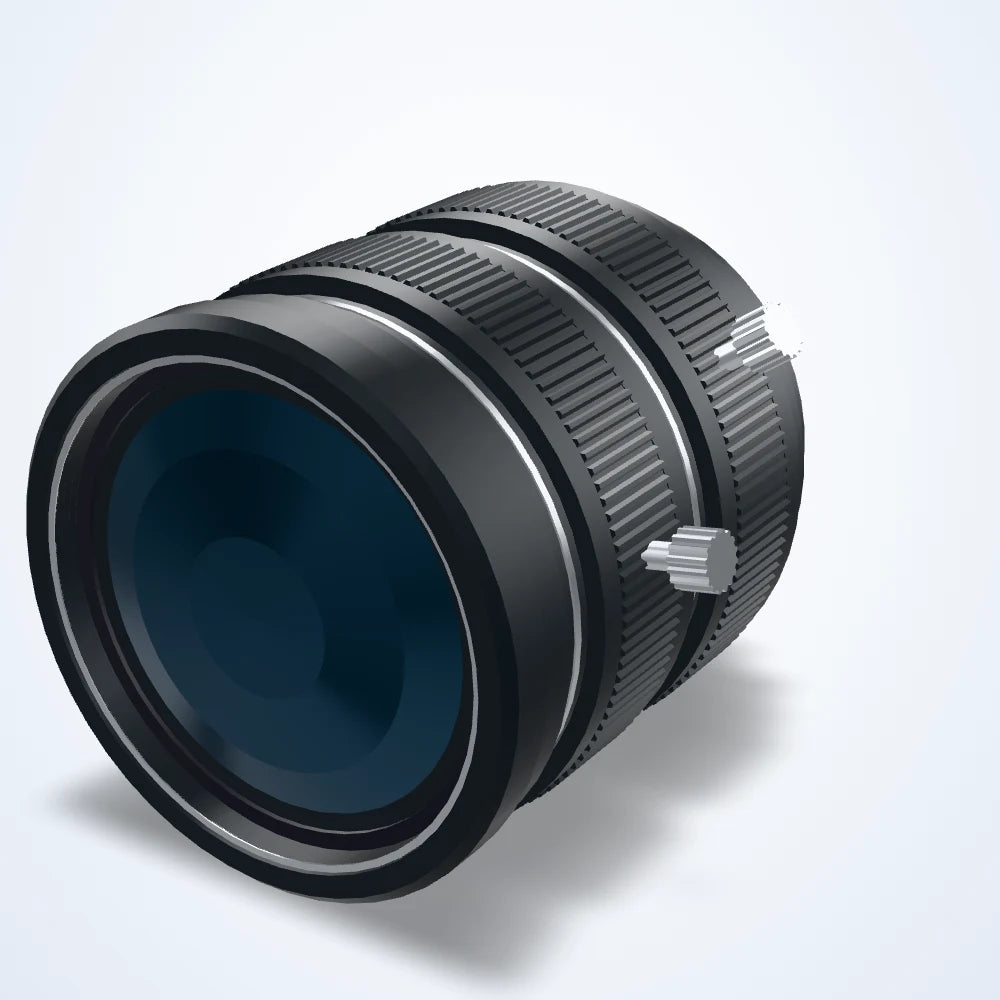

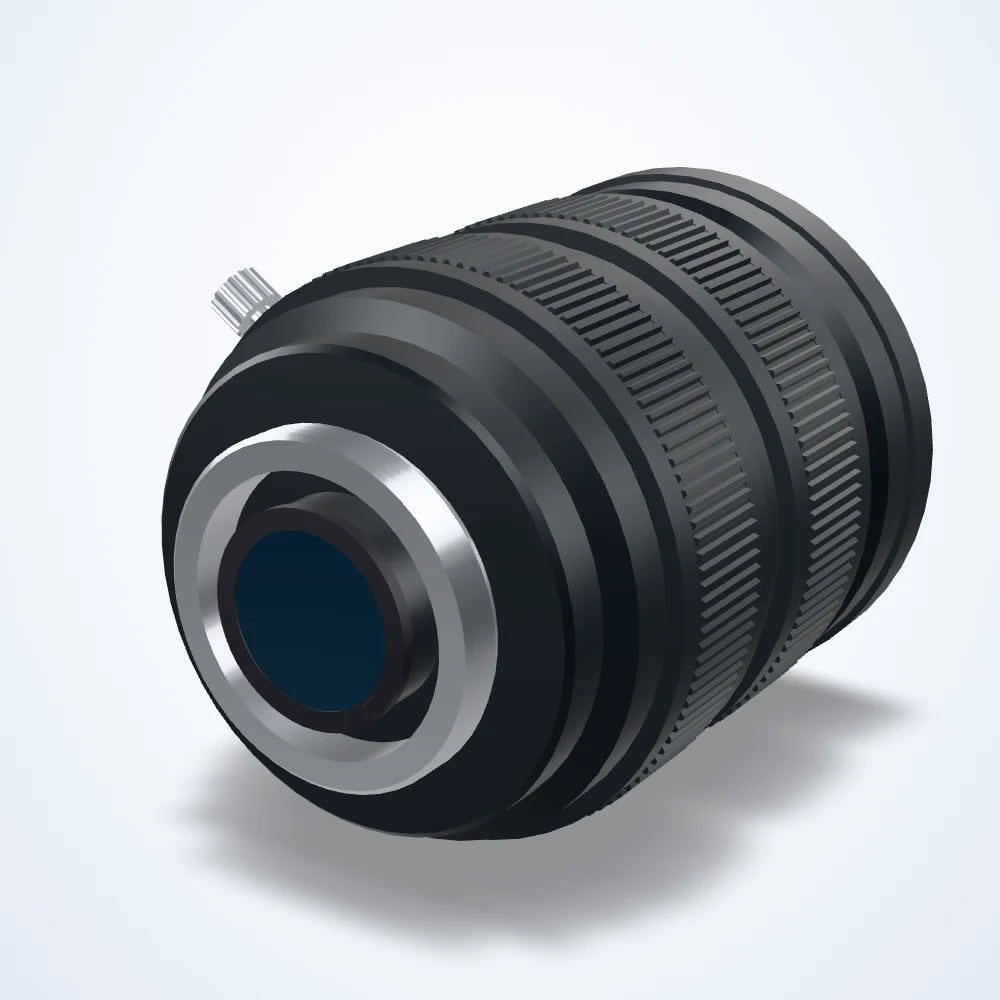

Rendered illustration: the actual product may differ in appearance.
Thermal, SWIR & UV lenses
50 mm SWIR lens, 900-1700 nm, 2/3", F2.0, C-mount (LS-SWL-0253)
Model LS-SWL-0253
- Focal length50 mm
- MountC-mount
- Sensor2/3"
- Working distance0.4 m to infinity
- ApertureF2.0
- Resolution30lp/mm
$400.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 50 mm; working distance 0.4 m to infinity; covers sensors up to 2/3"; aperture F2.0; corrected for 900-1700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-SWL-0253 |
|---|---|
| Angle of view | 12.36°/9.92°/7.45° |
Optics
| Focal length | 50 mm |
|---|---|
| Aperture | F2.0 |
| Field of view | 12.36° /9.92° /7.45° |
| Working distance | 0.4 m to infinity |
| Back focal length | 9.78 mm |
| Distortion | <-0.16% |
| Focus | Manual |
| Filter thread | M35.5×P0.5 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution | 30lp/mm |
Light
| Wavelength range | 900-1700 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|

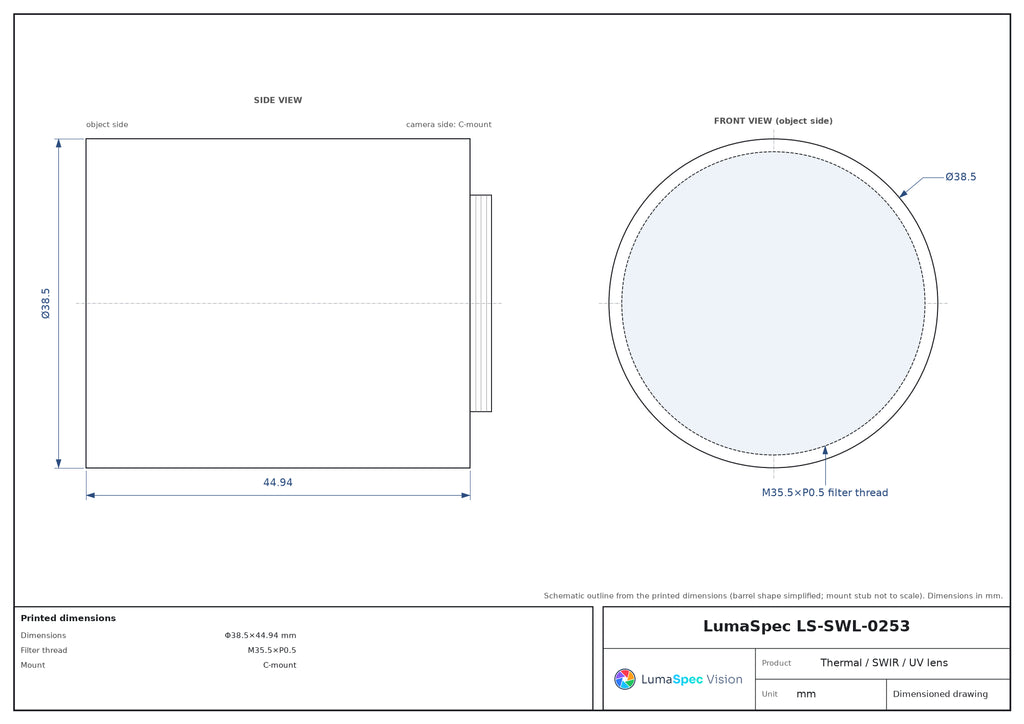

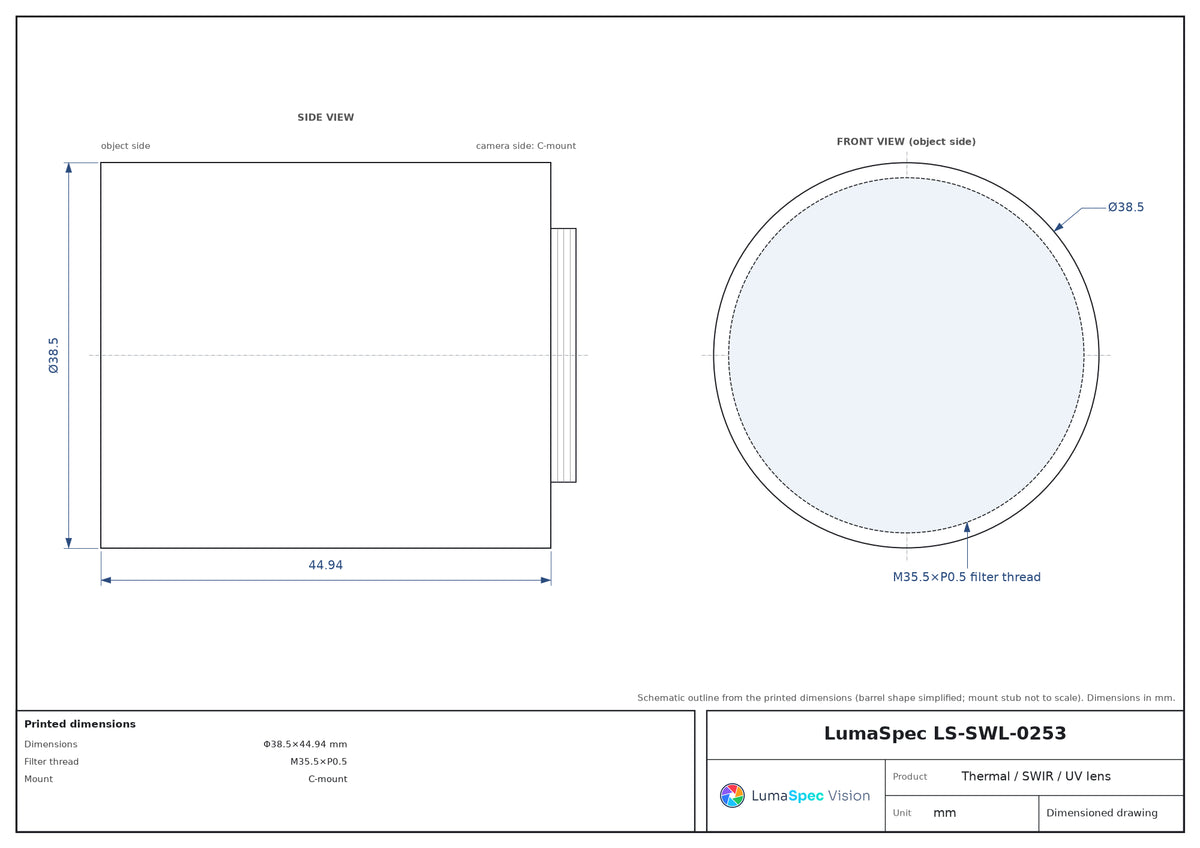

| Dimensions | Φ38.5×44.94 mm |
| Shipping weight | 1.00 kg |
Other models in the SWIR lenses (LS-SWL-S06) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-SWL-0249 | 12.5 mm, 2/3", C-mount | $400.00 | Ships in 3-4 weeks | View |
| LS-SWL-0250 | 16.3 mm, 2/3", C-mount | $400.00 | Ships in 3-4 weeks | View |
| LS-SWL-0251 | 25.9 mm, 2/3", C-mount | $400.00 | Ships in 3-4 weeks | View |
| LS-SWL-0252 | 35 mm, 2/3", C-mount | $400.00 | Ships in 3-4 weeks | View |
| LS-SWL-0248 | 8.5 mm, 2/3", C-mount | $400.00 | Ships in 3-4 weeks | View |
