  • 25 mm SWIR lens, 900-1700 nm, 1", F1.4, C-mount

Rendered illustration: the actual product may differ in appearance.

Thermal, SWIR & UV lenses

25 mm SWIR lens, 900-1700 nm, 1", F1.4, C-mount (LS-SWL-0225)

Model LS-SWL-0225

  • Focal length25 mm
  • MountC-mount
  • Sensor1"
  • Working distance0.3 m to infinity
  • ApertureF1.4-22
  • Resolution80lp/mm
$460.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

25 mm SWIR lens, 900-1700 nm, 1", F1.4, C-mount (LS-SWL-0225)LS-SWL-0225

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

25 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 25 mm; working distance 0.3 m to infinity; covers sensors up to 1"; aperture F1.4; corrected for 900-1700 nm; C-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0225
Angle of view30°

Optics

Focal length25 mm
ApertureF1.4-22
Field of view30°
Working distance0.3 m to infinity
Back focal length11.46 mm
Distortion≤-0.96%
Filter Screw SizeM34×0.5 mm

Sensor and imaging

Sensor format1"
Resolution80lp/mm

Light

Wavelength range900-1700 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

MountC-mount

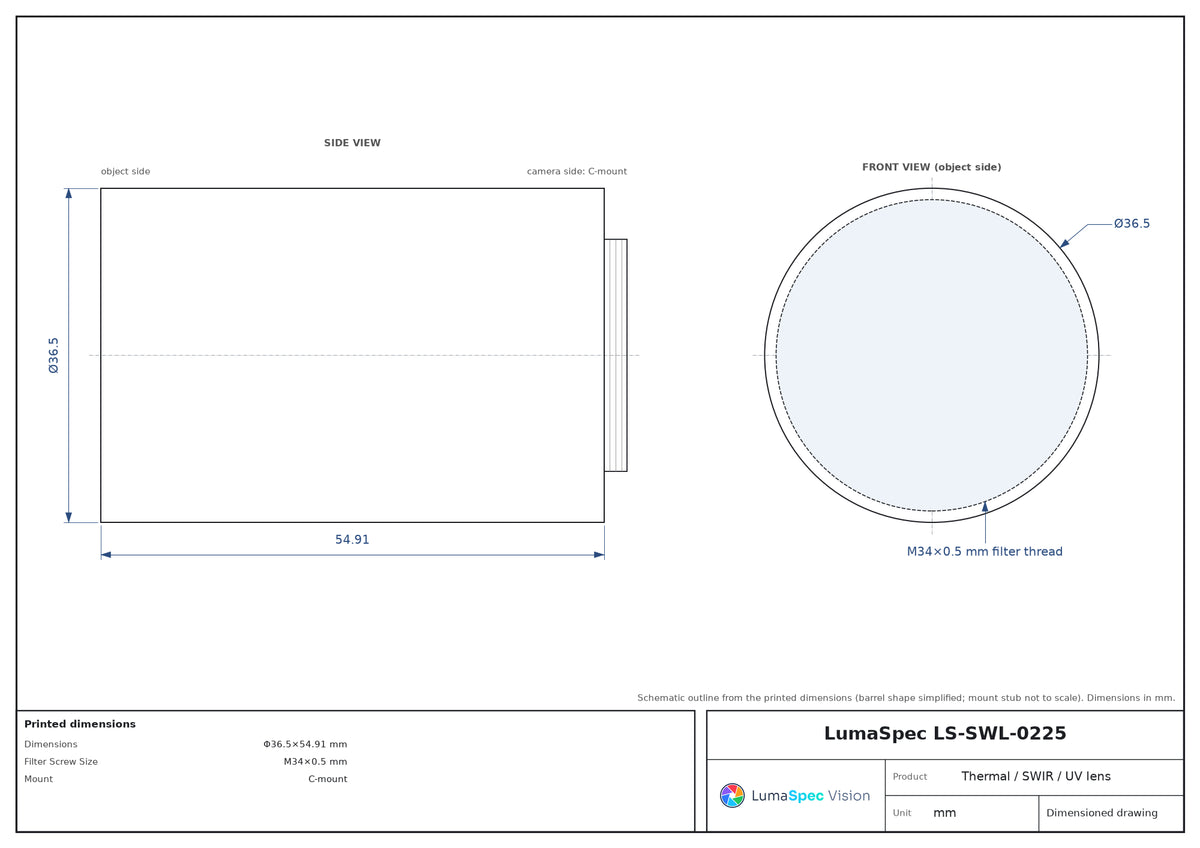

DimensionsΦ36.5×54.91 mm
Shipping weight1.00 kg
