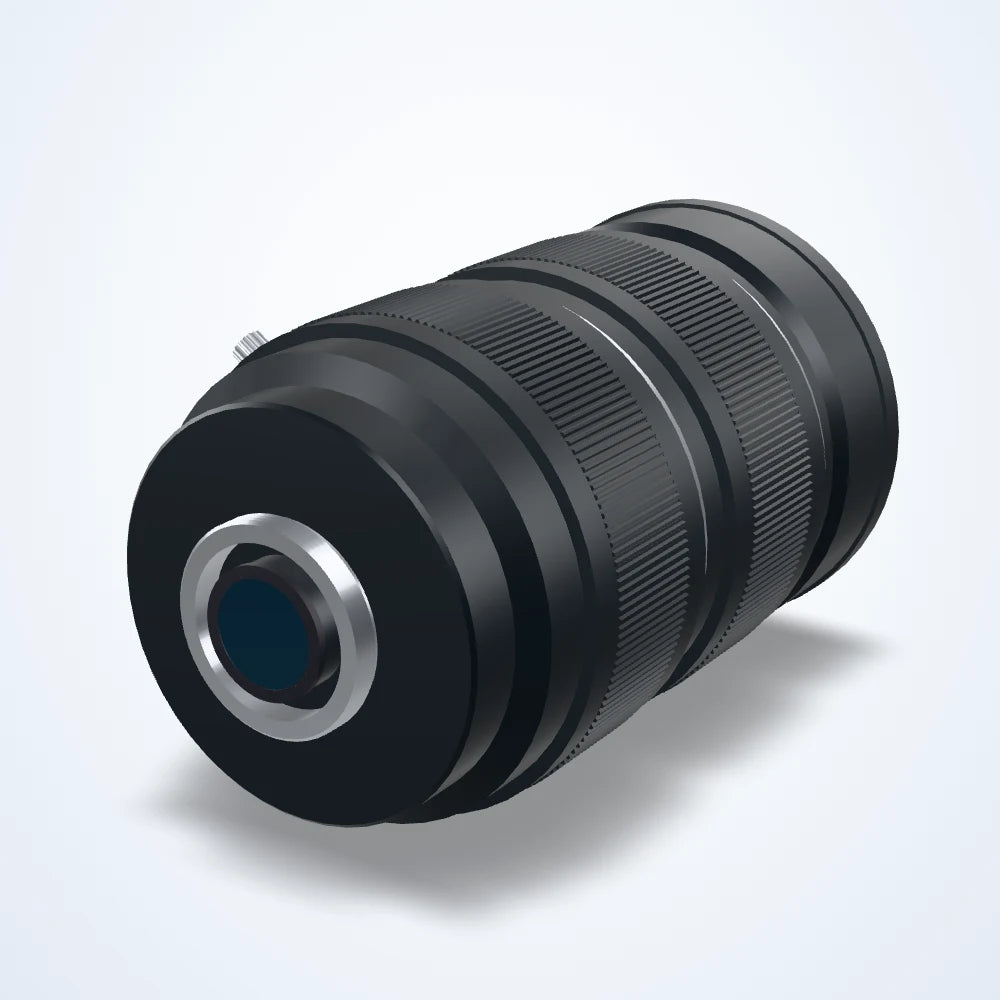

  • Thermal, SWIR & UV lens (series view)

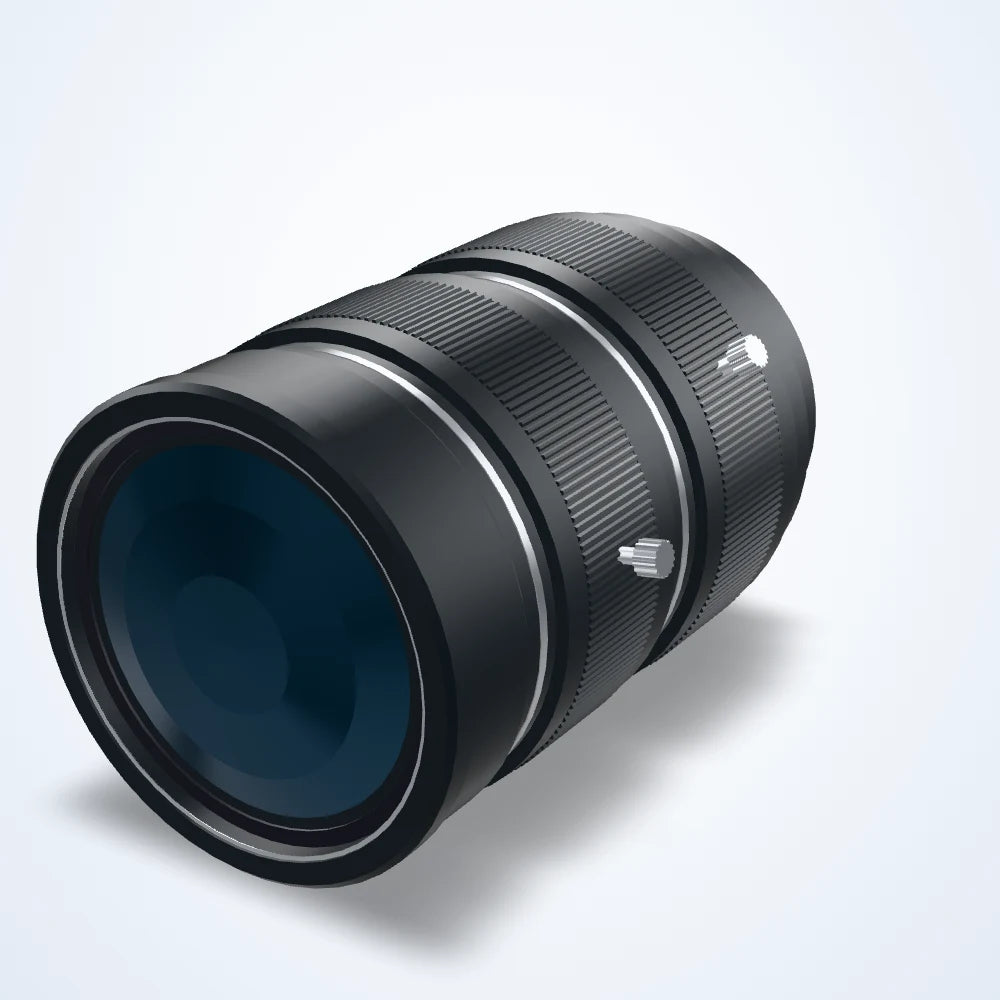

  • Thermal, SWIR & UV lens (series view)
  • 200 mm SWIR lens, 900-1700 nm, 1", F4, F-mount

Rendered illustration: the actual product may differ in appearance.

Thermal, SWIR & UV lenses

200 mm SWIR lens, 900-1700 nm, 1", F4, F-mount (LS-SWL-0237)

Model LS-SWL-0237

  • Focal length200 mm
  • MountF-mount
  • Sensor1"
  • ApertureF4-22
$6,635.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

200 mm SWIR lens, 900-1700 nm, 1", F4, F-mount (LS-SWL-0237)LS-SWL-0237

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

200 mm SWIR lens for SWIR, NIR and UV cameras. Focal length 200 mm; covers sensors up to 1"; aperture F4; corrected for 900-1700 nm; F-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-SWL-0237
Angle of view4.57°×3.66°×2.75°

Optics

Focal length200 mm
ApertureF4-22
Back focal length48.71 mm
Distortion<0.3%
FocusManual
Filter threadM60×0.5 mm

Sensor and imaging

Sensor format1''

Light

Wavelength range900-1700 nm

Environment and compliance

Operating temperature-10- 50°C(Working), -20- 60°C(Storage)

Mechanical

MountF-mount

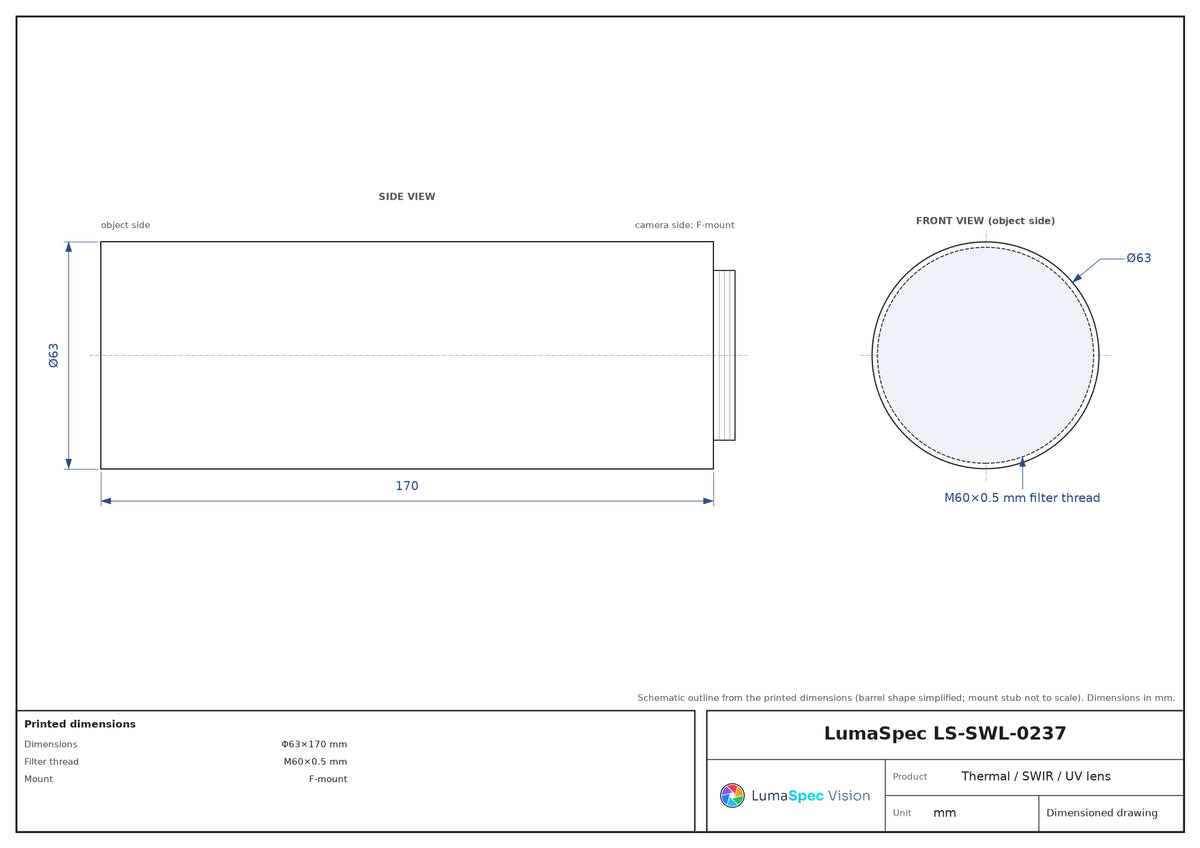

DimensionsΦ63×170 mm
Shipping weight1.00 kg

Other models in the SWIR lenses (LS-SWL-S03) series

See all 20 models
ModelSize / key dataPriceAvailabilityLink
LS-SWL-0222 12 mm, 1", C-mount $320.00 Ships in 3-4 weeks View
LS-SWL-0223 12 mm, 1", C-mount $460.00 Ships in 3-4 weeks View
LS-SWL-0224 16 mm, 1", C-mount $460.00 Ships in 3-4 weeks View
LS-SWL-0225 25 mm, 1", C-mount $460.00 Ships in 3-4 weeks View
LS-SWL-0228 35 mm, 1", C-mount $460.00 Ships in 3-4 weeks View
LS-SWL-0230 50 mm, 1", C-mount $460.00 Ships in 3-4 weeks View
LS-SWL-0220 8 mm, 1", C-mount $460.00 Ships in 3-4 weeks View
LS-SWL-0226 25 mm, 1", C-mount $605.00 Ships in 3-4 weeks View
LS-SWL-0227 25 mm, 1", C-mount $660.00 Ships in 3-4 weeks View
LS-SWL-0218 6 mm, 1", C-mount $660.00 Ships in 3-4 weeks View
LS-SWL-0229 35 mm, 1", C-mount $715.00 Ships in 3-4 weeks View
LS-SWL-0231 50 mm, 1", C-mount $715.00 Ships in 3-4 weeks View
LS-SWL-0232 75 mm, 1", C-mount $870.00 Ships in 3-4 weeks View
LS-SWL-0221 8.32 mm, 1", C-mount $970.00 Ships in 3-4 weeks View
LS-SWL-0219 6 mm, 1", C-mount $1,800.00 Ships in 3-4 weeks View
LS-SWL-0235 200 mm, 1", C-mount $6,635.00 Ships in 3-4 weeks View
LS-SWL-0236 200 mm, 1", M42 $6,635.00 Ships in 3-4 weeks View
LS-SWL-0238 300 mm, 1", C-mount $9,450.00 Ships in 3-4 weeks View
LS-SWL-0240 400 mm, 1", C-mount $10,000.00 Ships in 3-4 weeks View
